Precision luminance meter MAVO-SPOT 2 USB - Gossen Metrawatt

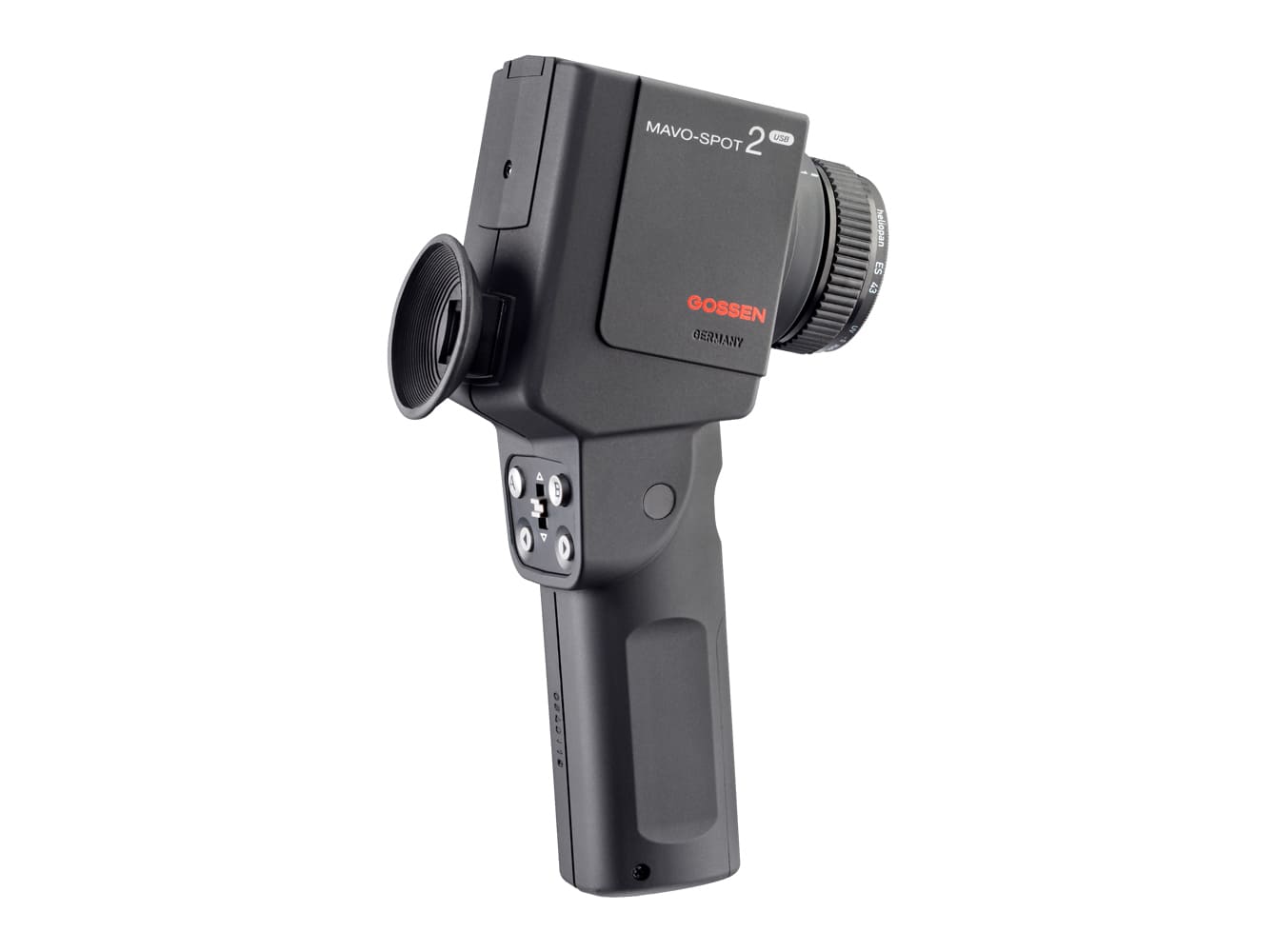

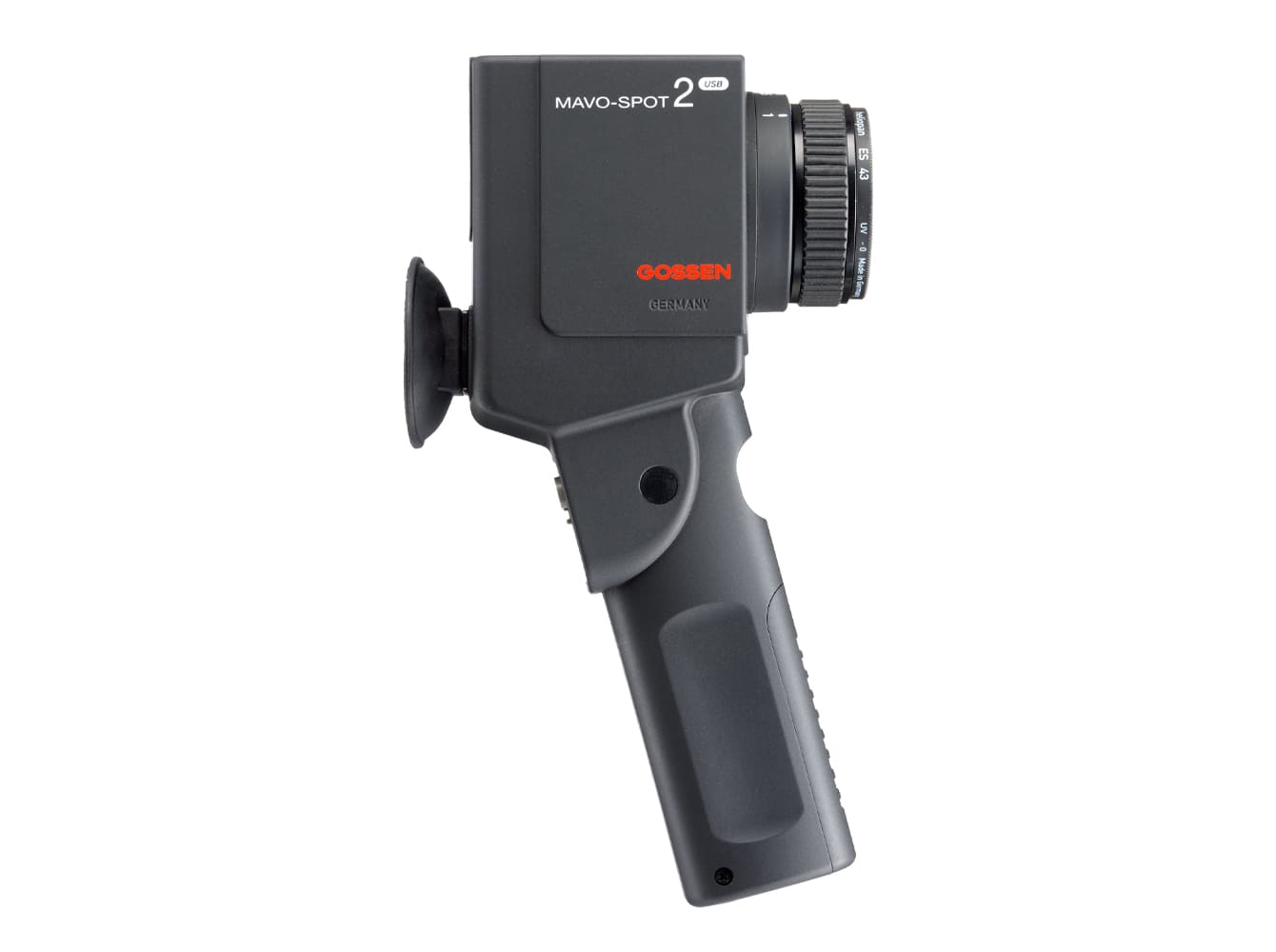

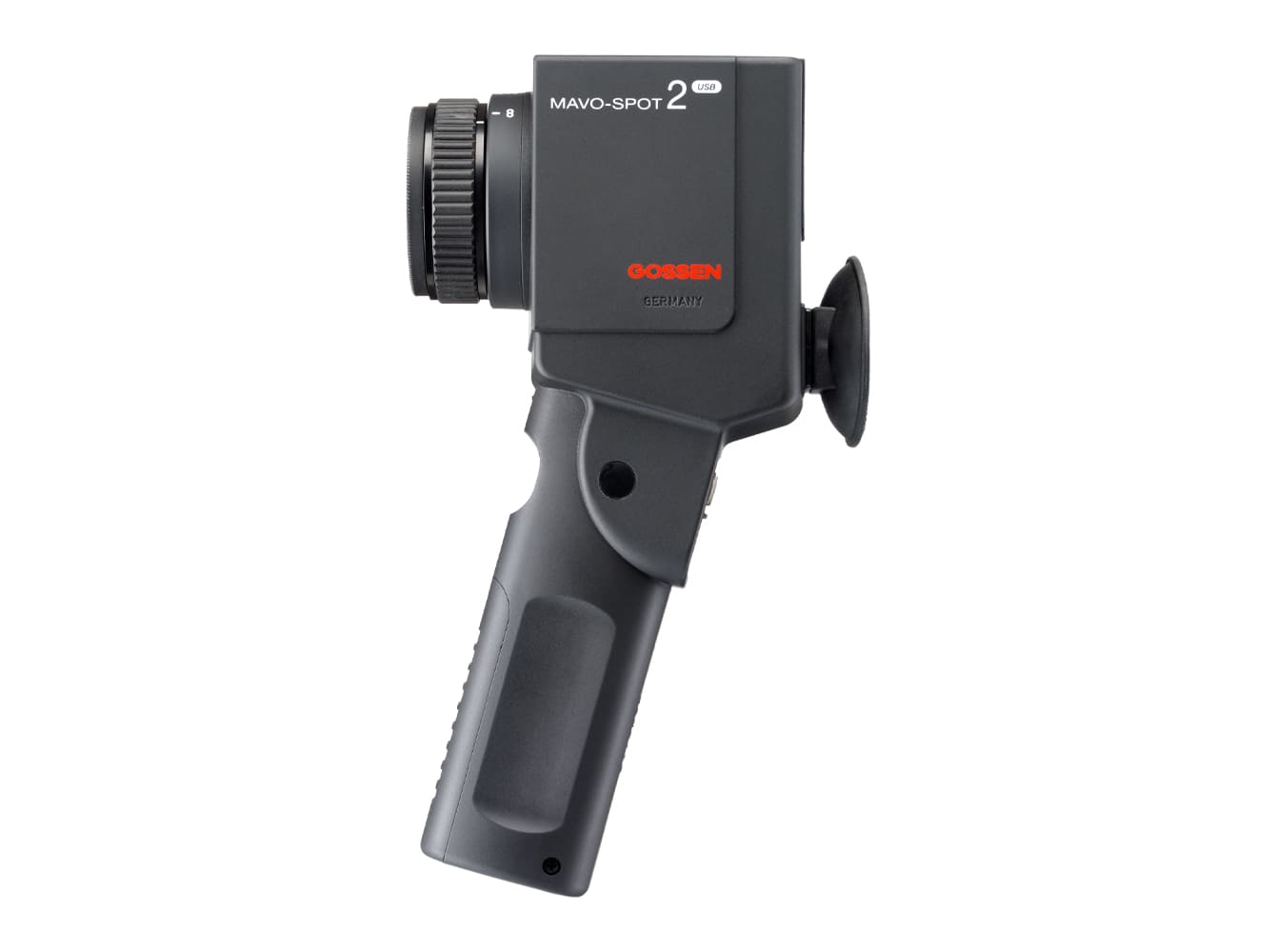

The MAVO-SPOT 2 USB from Gossen Metrawatt is a high-precision luminance meter for spot measurements with a 1° measuring angle, Class B in accordance with: DIN 5032-7, DIN EN 13032-1 (Annex B) and ISO/CIE 19476 (CIE S 023).

The instrument measures the brightness effect of illuminated or luminous surfaces in cd/m² (candela per square metre) or foot-lambert (fL) with spectral sensitivity adapted to the photopic V(λ) response of the human eye.
Its precision optical system with SLR targeting enables accurate alignment of the defined 1° measuring field, ensuring reproducible results in laboratory and field environments.

The MAVO-SPOT 2 USB from Gossen Metrawatt is suitable for professional photometric applications including contrast analysis, luminance uniformity testing and compliance verification in regulated environments.

more details

Downloads

Request Offer

In medical imaging applications, the instrument is used for acceptance and constancy testing of image display systems in accordance with DIN 6868-157, supporting image quality assurance for: computed tomography (CT) Systems, digital radiography systems, ultrasound systems, magnetic resonance imaging (MRI) Systems and X-ray film viewers.

The device supports integration into quality assurance software platforms such as PerfectLum, RadiCS and DisplayQ, enabling automated measurement procedures and traceable documentation.

Features

Spot luminance measurement with 1° measuring angle;
SLR (single-lens reflex) optical system with: precisely defined 1° measuring circle, 15° field of view, measuring range: 0.01 to 99,990 cd/m², distance measurement from 1 m to infinity and optional close-up lenses enabling measurements from approx. 34 cm;
Comparison and ratio measurement functions for: luminance uniformity, contrast evaluation and deviation analysis;
Optional contact measurement via measuring head and adapter disc;
Internal non-volatile memory for measurement storage;
USB 2.0 interface for data transfer and remote operation;
Data acquisition, visualization and storage via GLUX 2 software;
Tripod mounting thread for stable measurement setup.

Advantages
Standards-Compliant Accuracy

Class B luminance meter in accordance with DIN 5032-7, DIN EN 13032-1 Annex B and ISO/CIE 19476;
Spectral correction matched to V(λ) photopic response for reduced measurement error;
Suitable for regulated and traceable photometric measurements.

Precise 1° Spot Measurement
