Inductive electromagnetic flowTRANS MAG H20 - JUMO

The flowTRANS MAG H20 from JUMO measures conductive media with high precision − even drop-by-drop.

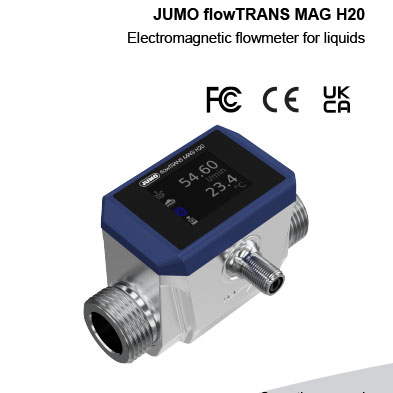

The flowTRANS MAG H20 from JUMO is an electromagnetic flowmeter for industrial automation. Its compact design allows it to fit into the smallest plants (dosing systems, apparatus cooling) and to measure conductive media with a high degree of precision.
It can be used with flexibility in a wide range of processes. In addition to the flow measurement, the temperature is also measured.

more details

Downloads

Request Offer

A modern HMI allows configuration via Bluetooth and the JUMO smartCONNECT app. The SPE (Single Pair Ethernet) interface with PoDL (Modbus TCP, JUMO Cloud connector) enables simplified JUMO Cloud connection and consistent IP communication from the field to the automation level.

Features

Material: FDA compliant;
Flow range: from 0.005 l/min;
Accuracy: 0.5% of the measured value;
Simplified JUMO Cloud connection possible;
End-to-end IP communication from the field level to automation.

Advantages

Wear-free technology, thus no maintenance effort;
Due to FDA conform materials applicable in hygienic industry;
Flow and temperature measurement in one device;
Tri Clamp as welded process connection, thus reduction of contamination and costs in the hygienic industry;
Compact design and no inlet/outlet sections enable compact systems;
With JUMO Cloud Gateway a fast integration into the JUMO Cloud;
Consistent communication from field to automation level through SPE.
