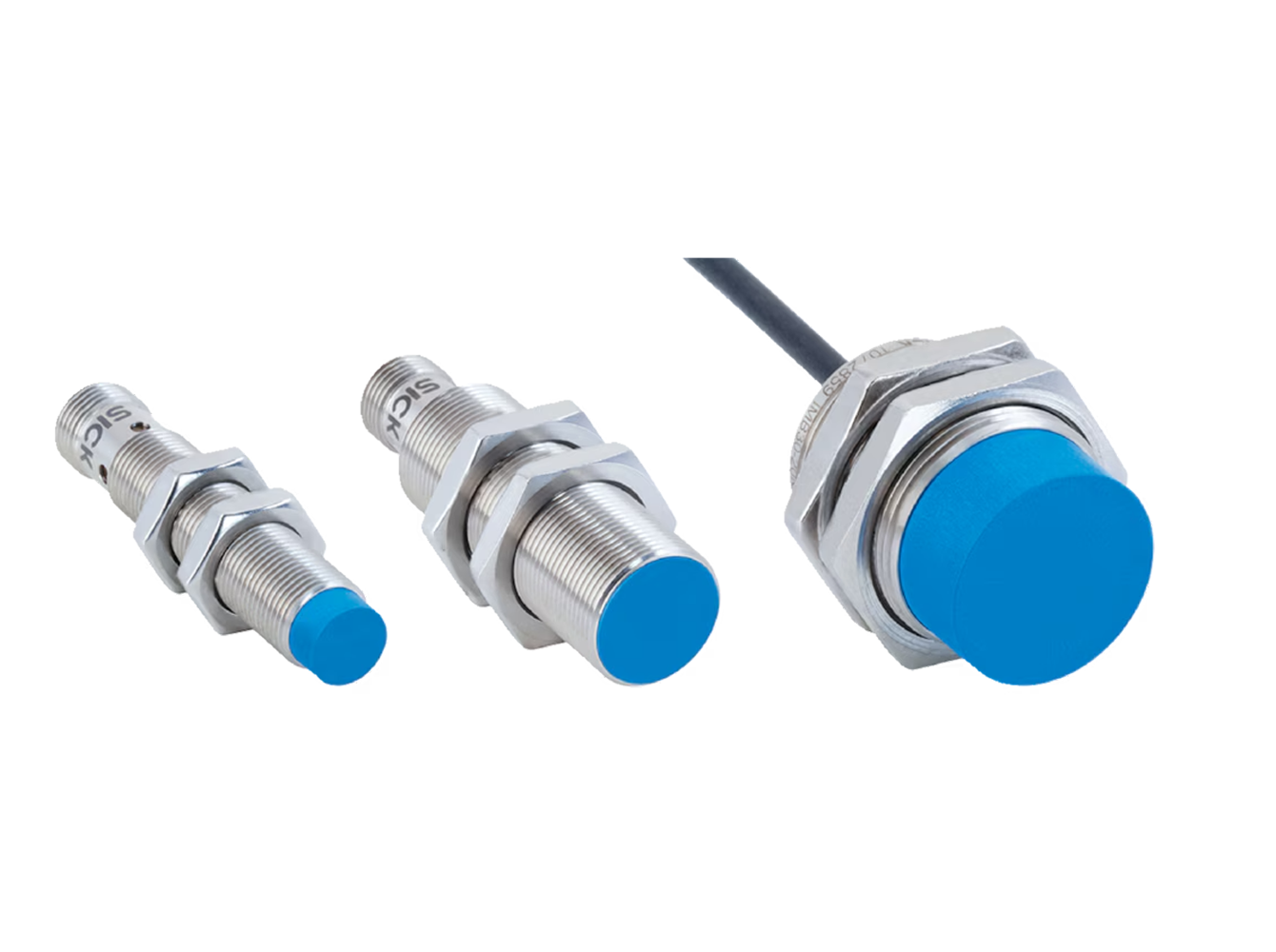

Inductive proximity sensor IMG – SICK

The IMG inductive proximity sensor from SICK precisely detects metallic objects even in harsh environments. In price-sensitive mobile applications and automation solutions, it is suitable as a switch for end position detection or speed measurement. Using the IMG, fault-free processes can be ensured even with high temperature fluctuations.

The fully-encapsulated sensor is impervious to mechanical shocks as well as vibrations, and with its IP69K rating, is protected against water as well as oils, coolants, and all kinds of contamination. This makes the IMG an economical solution for challenging outdoor uses and machine construction. Thanks to the plug-and-play, the sensor can also be commissioned quickly.

more details

Downloads

Request Offer

Features

Types: M12, M18, M30;
Extended sensing ranges: 4 to 20 mm;
Electrical configuration: DC, 3-wire;
Enclosure rating: IP67, IP68 and IP69K;
Temperature range: –40 to +85 °C;
Nickel-plated brass housing and plastic sensing face (LCP);
Resistant to oil and cooling lubricants; suitable for use outdoors.

Advantages

High availability and long service life thanks to rugged design and enclosure ratings of IP68 and IP69K;
Suitable for harsh environments and demanding weather conditions with high humidity, extreme temperatures, or constant vibrations;
Reliable detection thanks to SICK ASIC technology;
Optimized price/performance ratio due to the incorporation of only the essentials, but with high-quality components and features;
Fast commissioning without prior parameterization;
Fault-free signal transmission thanks to high electromagnetic compatibility.
