Industrial modular touch panel computer TPC-B300 - Advantech

Conventional HMI lacks the flexibility of field requirements. To solve this, Advantech created series of computing box modules and display modules.

TPC-B300, from Advantech, computing box modules are powered by Intel® Atom™ X6425E/Celeron® J6412 Processors to provide compact and fanless control panel solutions that deliver high-performance computing.
With a highly flexible modular design, TPC-B300 allows users to change the panel sizes (12"-23.8").

more details

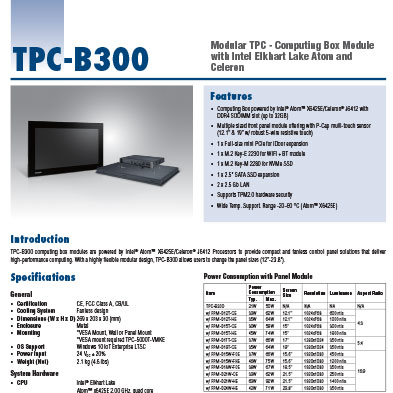

Downloads

Request Offer

Features

Computing Box powered by Intel® Atom™ X6425E/Celeron® J6412 with DDR4 SODIMM slot (up to 32GB);
Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch);
1 x Full-size mini PCIe for iDoor expansion;
1 x M.2 Key-E 2230 for WIFI + BT module;
1 x M.2 Key-M 2280 for NVMe SSD;
1 x 2.5” SATA SSD expansion;
2 x 2.5Gb LAN;
Supports TPM2.0 hardware security;
Wide Temp Support. Range -20~60 °C (Atom™ X6425E).

Advantages

Platforms can be rapidly customized according to usage requirements;
Display modules combined with box modules offer a range of flexible platforms;
Easy maintenance with box modules that can be removed or sent for repair without unmounting the entire platform;
Forward compatibility that allows customers to simply detach and replace the existing module with a new advanced module.

Industries

Any kind of process that needs HMI interaction, for exemple: kiosk, merchandising, public services, publicity, and others;
Industry that uses HMI for plant monitoring or control.

F.Fonseca is the representative of Advantech in Portugal.
