Industrial touch panel computer TPC-300 – Advantech

TPC-300, from Advantech, supports multiple wireless communication technologies and is 5G ready to ensure superior mobile connectivity for real-time communication and high-speed data transmissions.

To ensure easy system expansion, the panel PCs is equipped with an M.2 (B-key) connector for integrating a 5G module, and an mPCIe slot for 4G, LTE, Wi-Fi, and Bluetooth modules. Additionally, a built-in TPM 2.0 module provides hardware-based security to ensure data integrity and secure transfers across diverse platforms.

more details

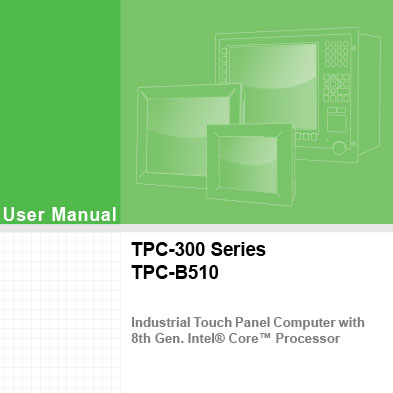

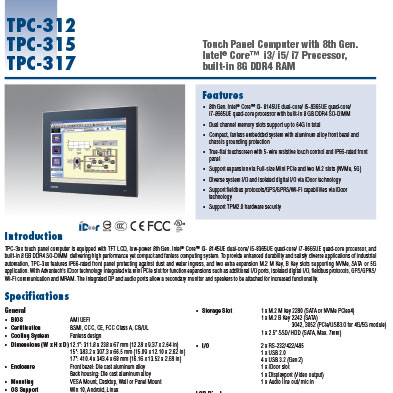

Downloads

Request Offer

Features

8th Gen. Intel ® Core™ i3- 8145UE dual-core/ i5-8365UE quad-core/ i7-8665UE quad-core processor with built-in 8 GB DDR4 SO-DIMM;
True-flat touchscreen with IP66-rated front panel;
Wide operating temperature range (-10 ~ 55 °C/-14 ~ 131 °F);
4 x USB 3.2, 1 x USB 2.0, 2 x RS-232, and 2 x RS-232/422/485 ports;
Supports panel and VESA mounting for convenient installation;
TPM 2.0 and chassis ground offer hardware-based security and isolation protection.

Advantages

TPC-300 is powered by an 8th generation Intel® Core™ i3/i5/i7 processor that supports Intel®;
Turbo Boost technology and multi-task processing for enhanced computing performance;
The next-generation panel PC also features 64 GB of DDR4 memory and support for high-speed M.2 NVMe (M-key), M.2 (B-key) SATA, and 2.5” SATA SSD to facilitate high-speed data processing and storage;
The inclusion of ground and chassis isolation protect against damage resulting from electrical faults or power fluctuations.

Applications

To facilitate convenient device monitoring and preemptive maintenance, the TPC-300 series monitors are bundled with Advantech’s value-added software solutions. These solutions include WISE-PaaS/DeviceOn for remote device monitoring and management;
WebAccess/SCADA and WebAccess/HMI for browser-based supervisory control, data acquisition, and visualization; and VisionNavi programmable machine vision software for complex machine vision applications, such as vision-based inspection and measurement. These software offerings are fully tested for compatibility and, combined with the TPC-300 panel PC, provide the ideal application-ready computing solution for IoT implementation and expansion.
