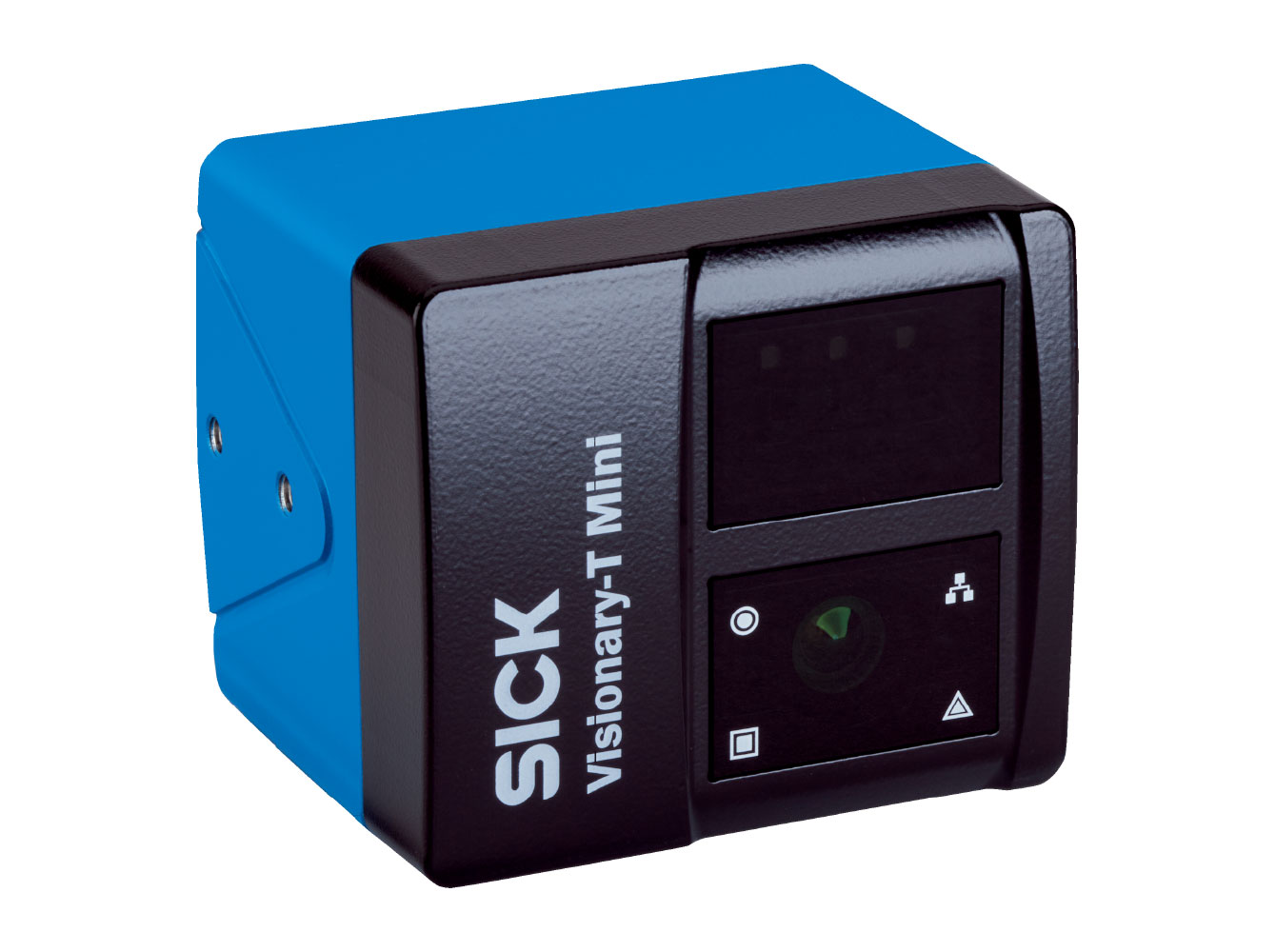

Machine vision Visionary-T Mini V3S105-1AAAAAA - SICK

The compact Visionary-T Mini 3D snapshot cameras from SICK with their simple operation and excellent data quality provide the solution to virtually all industrial 3D machine vision requirements.

Thanks to the advanced 3D time-of-flight technology, each pixel delivers extremely accurate depth and intensity data. The camera captures its surroundings extremely reliably even in strong light/dark contrast conditions and at long distances, and delivers precise data even for moving objects thanks to its very short image capture time. A clearly structured configuration tool makes it easy to parameterize the device and flexibly adapt the data to the specific application. This makes Visionary-T Mini from SICK an ideal, cost-efficient solution, e.g., for logistics, robotics or industrial vehicles.


more details

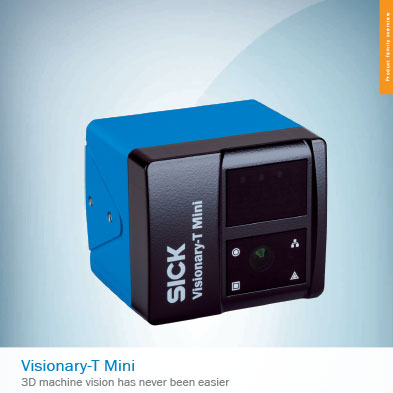

Downloads
Request Offer
Features
  • 3D snapshot time-of-flight;
  • Configurable, Streaming, pre-calibrated;
  • Working distance: ≤ 16 m;
  • Detection angle: 70° x 60°;
  • Angular resolution: 0.14° x 0.14°;
  • Illumination: Integrated;
  • Illumination color: Infrared, laser, invisible, 855 nm, ± 5 nm;
  • Laser class: 1, λ: 850 nm, P0 < 17 mW, t < 25 ns (EN/IEC 60825-1:2007, IEC 60825-1:2014, EN 60825-1:2014+A11:2021).

Advantages
  • Cost-effective, compactly designed sensor for a multitude of applications;
  • Accurate 3D and 2D data with a high pixel density for a reliable environment perception;
  • Rugged camera for long-term industrial use;
  • Visionary-T Mini CX: The versatile programming interface offers fast data availability for external data evaluation.

Applications

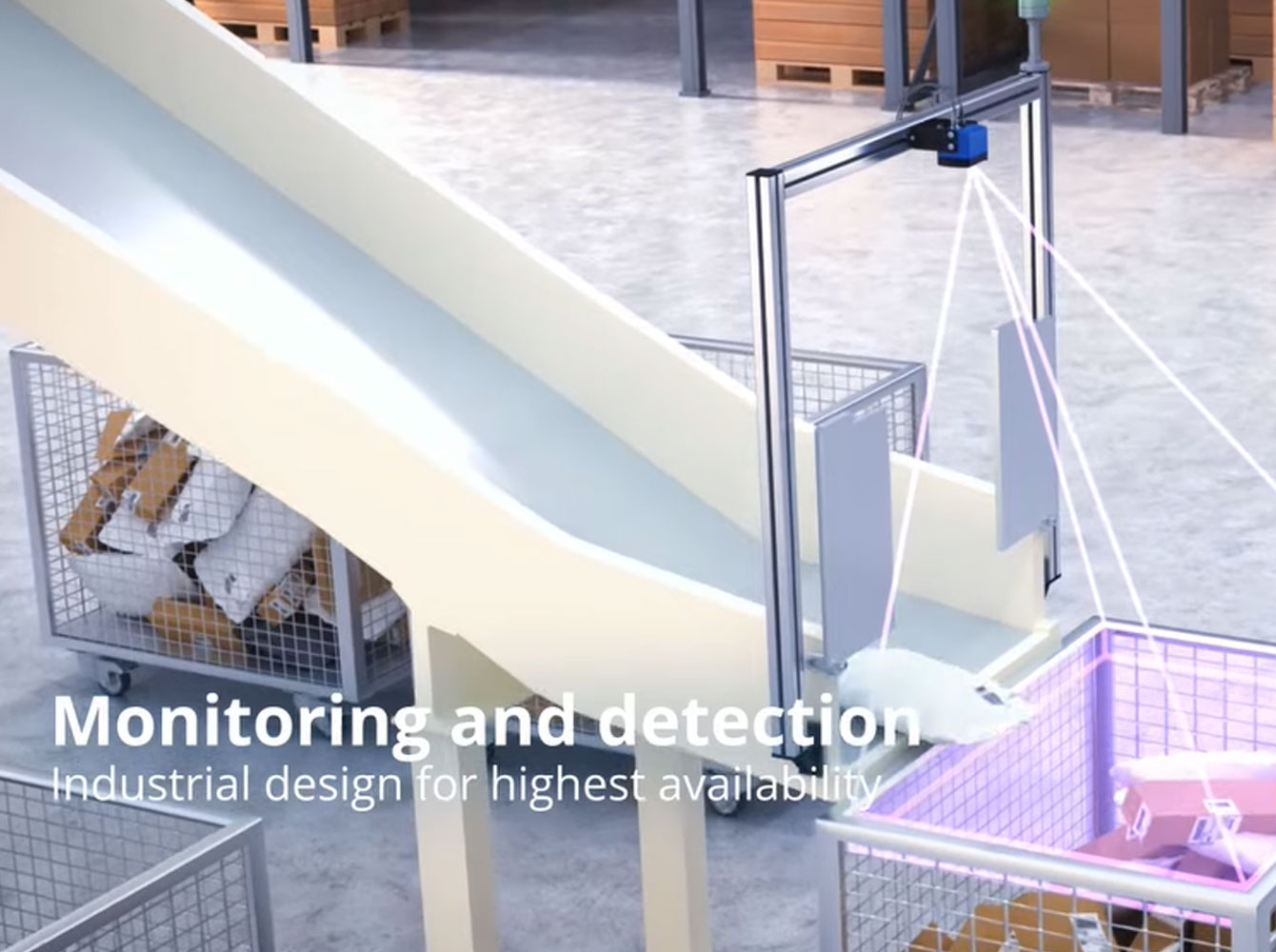

  • Area monitoring;
  • Gesture control;
  • Measurement and volume detection;
  • Navigation;
  • Object detection;
  • Palletizing and depalletizing;
  • Positioning.

F.Fonseca is the representative of SICK in Portugal.
