Building Technologies
Motion detector HF 3360 - STEINEL
It detects simply everything. Very fast and if required over 2 storeys.
Perfection through and through. High-frequency motion detector HF 3360, ideal for basement corridors, stairwells, multi-storey car parks, installation height 2.8 m, 360° angle of coverage, reach 1 – 8 m (radial), detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls, heavy-duty relay for high switching capacity. Available either in round or square surface-mounted and concealed version.
Perfection through and through. High-frequency motion detector HF 3360, ideal for basement corridors, stairwells, multi-storey car parks, installation height 2.8 m, 360° angle of coverage, reach 1 – 8 m (radial), detection regardless of temperature, HF-sensor technology also detects movement through glass, wood and stud walls, heavy-duty relay for high switching capacity. Available either in round or square surface-mounted and concealed version.
more details

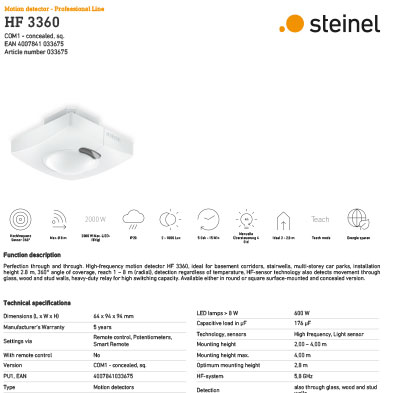

Downloads
Request Offer
High-frequency technology is the perfect alternative in areas that can pose problems for temperature-based infrared sensors. This makes the HF 3360 the ideal solution if you want to automate lighting in winding basement corridors, stairwells and multi-storey car parks. It detects the smallest of movements reliably and precisely and ensures the perfect automatic lighting control - even in stairwells over two storeys high. The HF 3360 is also ideal for alI entrance areas because light is switched ON as soon as the sensor detects the door opening. Available in surface-mounted and concealed installation versions, and naturally compatible with the standard interfaces.
Features
General
Dimensions (L x W x H) 64 x 94 x 94 mm
Manufacturer's Warranty 5 years
Settings via Remote control, Potentiometers, Smart Remote
Type Motion detectors
Application, place Indoors
Application, room function room / ancillary room, stairwell, WC / washroom, multi-storey / underground car park, Indoors
Colour white
Colour, RAL 9003
Fixation/ mounting
Installation site wall, ceiling, corner
Housing
IP-rating IP20
Ambient temperature -20 – 50 °C
Material Plastic
Electrical equipement
Mains power supply 220 – 240 V / 50 – 60 Hz
Switching output 1, resistive 2000 W
Switching output 1, number of LEDs / fluorescent lamps -
Fluorescent lamps, electronic ballast 1500 W
Switching output 1, low-voltage lamps 2000 VA
LED lamps < 2 W 100 W
LED lamps > 2 W < 8 W 300 W
LED lamps > 8 W 600 W
Capacitive load in μF 176 µF
General information
Detection angle 360 °
Angle of aperture 180 °
Transmitter power < 1 mW
Sensor technology
Technology, sensors High frequency, Light sensor
Mounting height 2,00 – 4,00 m
Mounting height max. 4,00 m
Optimum mounting height 2,8 m
HF-system 5,8 GHz
Detection also through glass, wood and stud walls
Reach, radial Ø 8 m (50 m²)
Reach, tangential Ø 8 m (50 m²)
Functions
Functions Normal / test mode, Manual ON / ON-OFF
Twilight setting 2 – 1000 lx
Time setting 5 s – 15 Min.
Twilight setting TEACH Yes
Connection
Type of interconnection Master/master
Interconnection via Cable
Advantages
Industries
F.Fonseca is the representative of STEINEL in Portugal.
Features
General
Dimensions (L x W x H) 64 x 94 x 94 mm
Manufacturer's Warranty 5 years
Settings via Remote control, Potentiometers, Smart Remote
Type Motion detectors
Application, place Indoors
Application, room function room / ancillary room, stairwell, WC / washroom, multi-storey / underground car park, Indoors
Colour white
Colour, RAL 9003
Fixation/ mounting
Installation site wall, ceiling, corner
Housing
IP-rating IP20
Ambient temperature -20 – 50 °C
Material Plastic
Electrical equipement
Mains power supply 220 – 240 V / 50 – 60 Hz
Switching output 1, resistive 2000 W
Switching output 1, number of LEDs / fluorescent lamps -
Fluorescent lamps, electronic ballast 1500 W
Switching output 1, low-voltage lamps 2000 VA
LED lamps < 2 W 100 W
LED lamps > 2 W < 8 W 300 W
LED lamps > 8 W 600 W
Capacitive load in μF 176 µF
General information
Detection angle 360 °
Angle of aperture 180 °
Transmitter power < 1 mW
Sensor technology
Technology, sensors High frequency, Light sensor
Mounting height 2,00 – 4,00 m
Mounting height max. 4,00 m
Optimum mounting height 2,8 m
HF-system 5,8 GHz
Detection also through glass, wood and stud walls
Reach, radial Ø 8 m (50 m²)
Reach, tangential Ø 8 m (50 m²)
Functions
Functions Normal / test mode, Manual ON / ON-OFF
Twilight setting 2 – 1000 lx
Time setting 5 s – 15 Min.
Twilight setting TEACH Yes
Connection
Type of interconnection Master/master
Interconnection via Cable
Advantages
- 5 years warranty;
- All interfaces: relay; potential free; KNX; DALI; LiveLink;
- Programming via remote control or via Smart Remote.
Industries
- Basement corridors;
- Stairwells;
- Multi-storey car parks.
F.Fonseca is the representative of STEINEL in Portugal.
