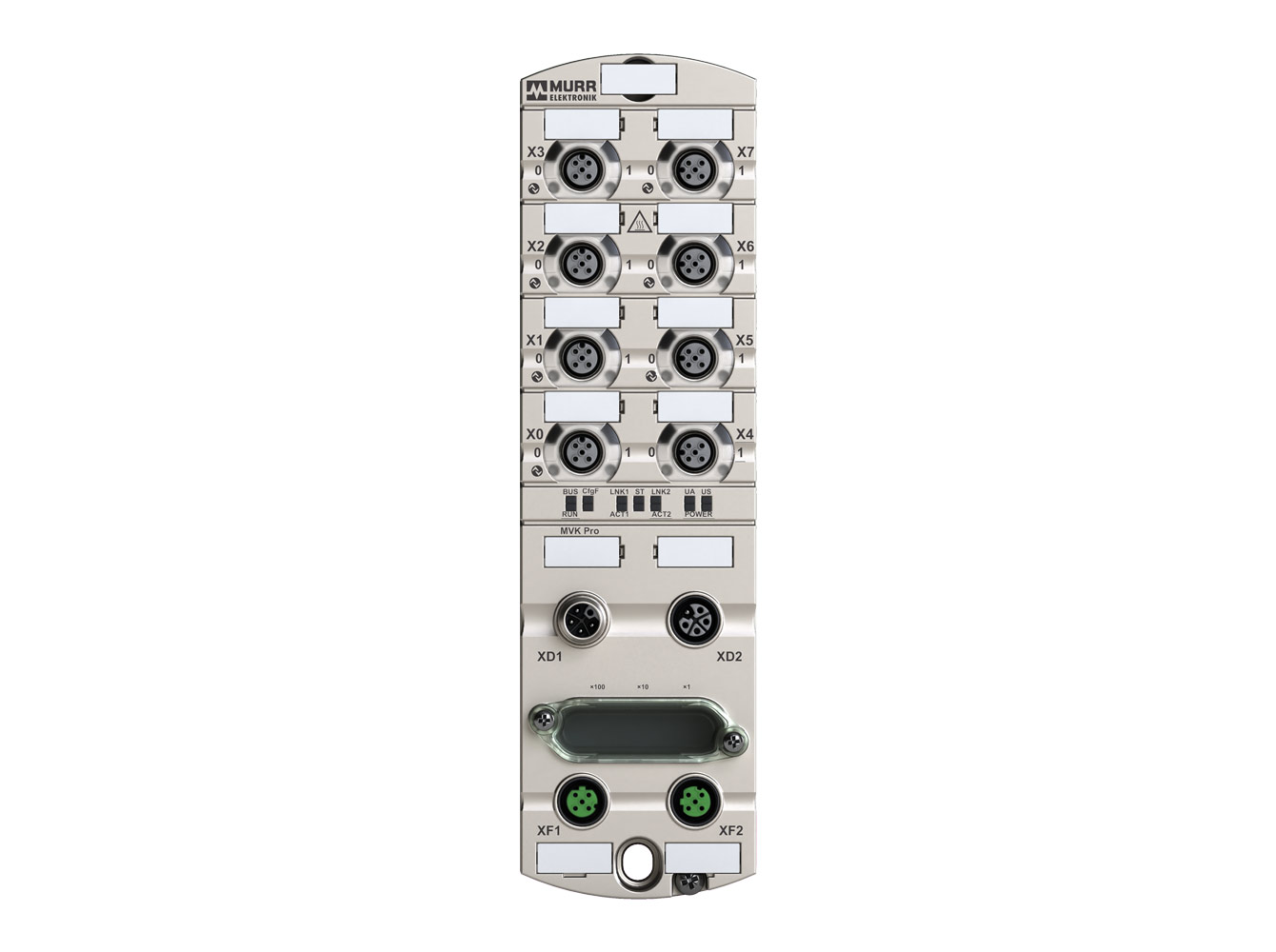

MVK Pro and IMPACT67 Pro - Murrelektronik

Compact IO-Link master modules with eight multifunctional master ports are the most intelligent way to connect IO-Link devices.
IP67 rated fieldbus modules are an important component in decentralized installations. They replace complexly wired and expensive terminal boxes.
Combine these modules with our selection of IO-Link hubs and analog converters to increase your flexibility while minimizing hardware costs.

more details

Downloads

Request Offer

In addition to pure process data (I/Os), the new Pro modules also provide secondary extended diagnostic data (voltage, current and temperature values) for both the respective ports and the entire module. This allows anomalies to be detected and the actual process to be optimized via data analysis. With the help of OPC UA, this can be done completely without a controller using a standard protocol.

Features

8 × multifunctional IO-Link Class A/B master ports with true DIO functionality;
One module for everything: Each port can be used as input or output for IO-Link, digital or analog* signals;

* via IO-Link analog converter

Intelligent supply voltage switching at pin 2 and 4 – actuator supply for DOs and sensor supply for DIs;
Up to 4 A per port (up to 2 A each at pin 2 and 4);
2 × M12 D-coded, 100 Mbps;
PROFINET, EtherNet/IP, EtherCAT;
Rotary coding switch (for configuration);
Automated, network-wide firmware updates via Murrelektronik‘s AutoUpdateX tool;
IO-Link master with OPC UA server – from the sensor to the cloud;
Controller-independent access by using OPC UA, MQTT or JSON REST API , e.g. for configuration data, status information, identification and diagnostic data;
Simple, seamless integration of sensor data into ERP and MES systems (sensor-to-cloud functionality);
Integrated sensorics for real time power and data monitoring: current, voltage, temperature and min/max values, etc;
2 × M12 L-coded for daisy-chainable installations;
4* and 5 pole options for any installation concept;

* 4-pole option only available for PROFINET

Up to 2 × 16 A;
Up to 4 A per port (up to 2 A each at pin 2 and 4);
Robust, fully potted housings (plastic – IMPACT67 Pro, metal – MVK Pro);
IP65, IP67;
Integrated web server for configuration and access to current live data and diagnostics;
Built-in force mode for functional tests – without a connected controller;
Quick and easy configuration with IODD on Board (PROFINET);
Extended channel diagnostics (PROFINET).
