Non-intrusive level sensor TL400-I - Novus

The TL400-I is a non-intrusive level sensor from Novus designed to offer maximum precision and durability in the measurement of liquids, grains, fluids, and bulk solids. Thanks to low-power laser technology, this device performs several measurements per second that convert into level, volume, and distance data. Its customization capability via Bluetooth makes it a versatile solution for different types of tanks, including those with irregular shapes.

Precise measurements in industrial processes are essential for the safety and efficiency of operations. The TL400-I eliminates the disadvantages of traditional sensors that require direct contact with the material, which reduces their lifespan. This non-intrusive sensor ensures the integrity of the equipment and guarantees accurate measurements throughout its lifecycle, with a minimal error margin of ±3 mm. With real-time measurement capability and easy installation, this sensor becomes an indispensable ally in industrial processes that demand constant precision and control.

more details

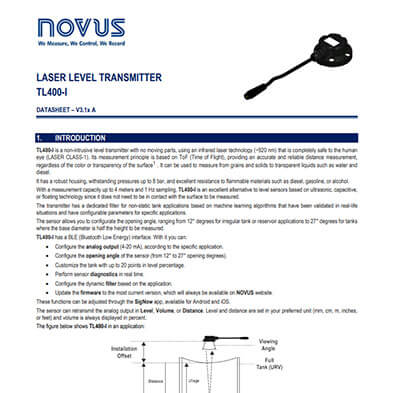

Downloads

Request Offer

Features

Measurement range: up to 4 meters;
Accuracy: ±3 mm;
Signal output: 4 to 20 mA;
Connectivity: 150 mm cable with 4-pin male M12 connector;
User interface: Compatible with mobile devices via the SigNow Mobile app;
Power supply: 8 to 33 Vdc;
Power consumption: <70 mA @ 12 Vdc or <40 mA @ 24 Vdc;
Electrical protection: Against polarity reversal;
Operating temperature: -20 to 80 °C;
Dimensions: Ø66 x 31 mm;
Mounting: SAE 5 holes (standard) or 4 holes (accessory adapter flange),
Protection rating: IP68.

Advantages

Adapts to tanks with various materials in different process stages;
Indirect contact with materials prevents sensor corrosion;
Configuration and calibration via Bluetooth remotely and in real time;
Measurement of tanks with any geometry;
Level, volume, or distance output;
Digital filter for stirred liquids;
High precision even in difficult conditions (±3 mm);
Robust body with IP68 rating.

Applications
Industries handling moving liquids, viscous substances, or difficult-to-handle solids.

F.Fonseca is distributor of Novus in Portugal.
