Building Technologies

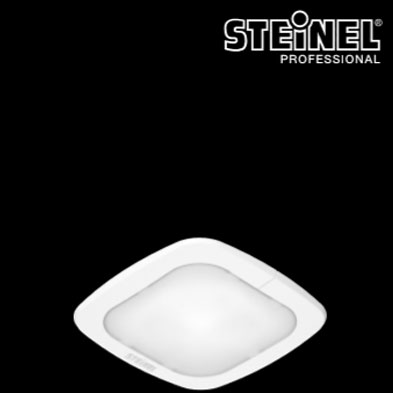

Presence detector IR Quattro SLIM - STEINEL
Genuine 16 m2 of presence detection concentrated on 4 mm. Control PRO IR Quattro SLIM COM1 presence detector for indoors, ideal for small offices, store, service and utility rooms, washrooms and WCs, for mounting at a height of up to 4 m, for switching light ON and OFF, square presence detection zone covering 16m², high-quality retina lens.
more details
Downloads
Request Offer
Sensor technology is a must in many buildings today. But not without aesthetic appeal, please! This is precisely where the IR Quattro SLIM infrared presence detector comes in. With an overall depth of just 4 mm, it can be installed almost flush with the ceiling where it remains practically invisible to anyone looking up. As the only one of its kind in the world, the retina lens deserves all the more attention. Installed at a height of up to 4 metres and despite being so slim, it provides a true presence detection zone of an astonishing 16 m².
Features
COM1 593414
COM2 593513
DIM 593612
DALI 005795
KNX 008888
Dimensions (H x W x D), sensor module 77 x 77 x 60 mm
Dimensions (H x W x D), load module 61.3 x 126.5 x 42.5 mm
Power supply 120 – 250 V, 50 / 60 Hz
Sensor type passive infrared
Installation indoors / ceiling
Recommended installation height 2.5 - 4 m
Parallel connection capability Yes
Square detection zone, presence max. 4 x 4 m (16 m²)
Square detection zone, radial max. 4 x 4 m (16 m²)
Square detection zone, tangential max. 4 x 4 m (16 m²)
Sensor system PIR with retina lens and hexagonal fresnel structure
Parallel-connected configurations master/master, master/slave
User-friendly setting teach-In (with optional remote control RC8)
Twilight setting 10 – 1000 lux, ∞/daylight
IP rating IP20
IQ mode Yes
Enclosure UV-resistant, paintable
Advantages
Applications
F.Fonseca is the representative of STEINEL in Portugal.
Features
COM1 593414
COM2 593513
DIM 593612
DALI 005795
KNX 008888
Dimensions (H x W x D), sensor module 77 x 77 x 60 mm
Dimensions (H x W x D), load module 61.3 x 126.5 x 42.5 mm
Power supply 120 – 250 V, 50 / 60 Hz
Sensor type passive infrared
Installation indoors / ceiling
Recommended installation height 2.5 - 4 m
Parallel connection capability Yes
Square detection zone, presence max. 4 x 4 m (16 m²)
Square detection zone, radial max. 4 x 4 m (16 m²)
Square detection zone, tangential max. 4 x 4 m (16 m²)
Sensor system PIR with retina lens and hexagonal fresnel structure
Parallel-connected configurations master/master, master/slave
User-friendly setting teach-In (with optional remote control RC8)
Twilight setting 10 – 1000 lux, ∞/daylight
IP rating IP20
IQ mode Yes
Enclosure UV-resistant, paintable
Advantages
- Unique square-shaped detection zone;
- All the main connection options (relay, 2 outputs, DALI, DIm, KNX);
- Master-master/master-slave systems;
- All products in one and the same design;
- Pushbutton/switch input for semi-automatic operation;
- Constant-light function, permanent light 'OFF' function;
- Can be remotely controlled.
Applications
- Office buildings;
- Commercial spaces;
- Hospitals;
- Schools;
- Airports;
- Hotels;
- Industrial buildings.
F.Fonseca is the representative of STEINEL in Portugal.
