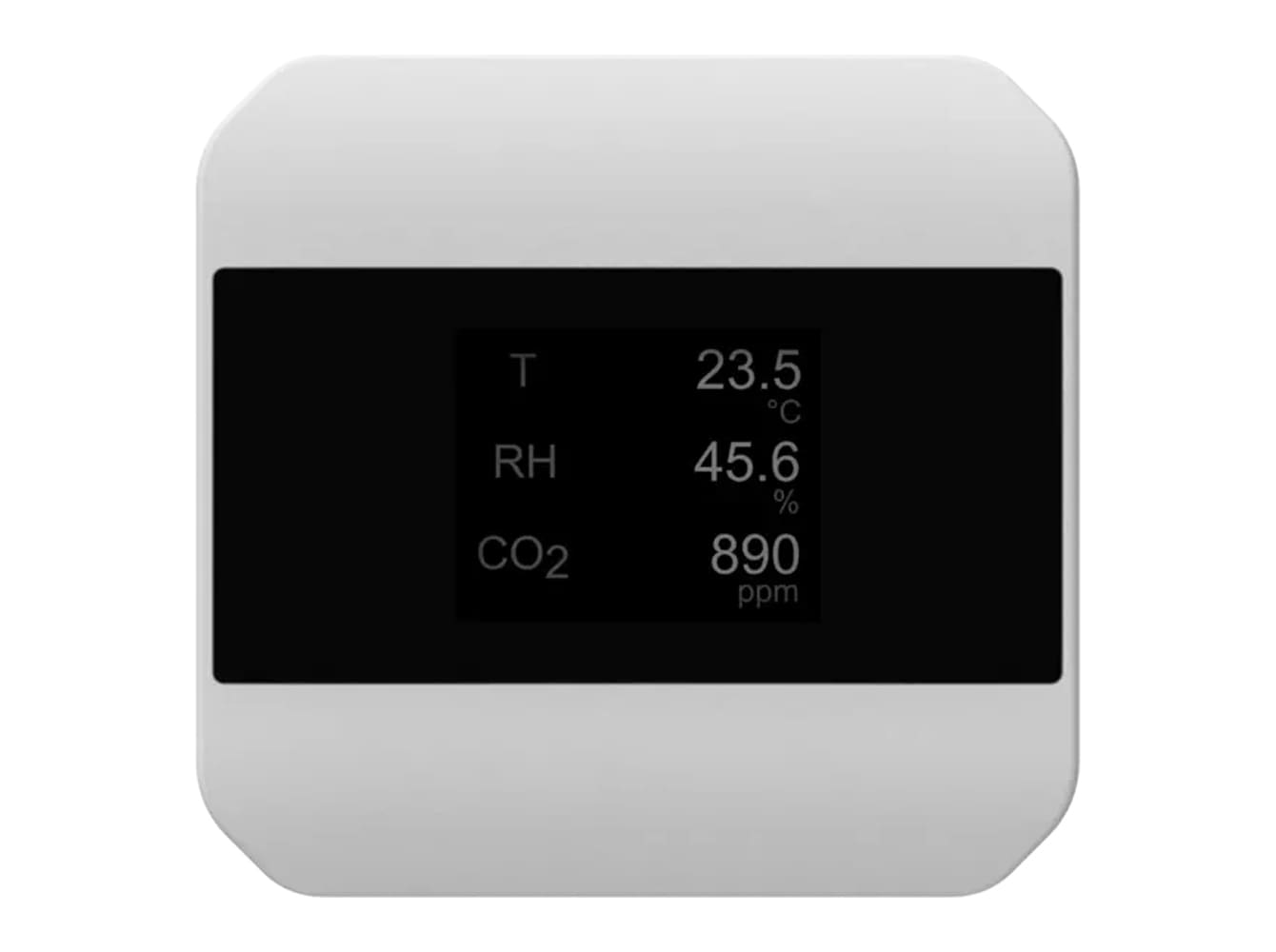

Temperature and humidity transmitter hydroTRANS S10 – JUMO

This humidity and temperature transmitter with optional CO2 module works with the capacitive measurement method. The room version is suitable for indoor use (e.g. offices, residential premises, etc.). The humidity measuring device is available with various interfaces. It is characterized by ease of installation and reliable sensor technology.

more details

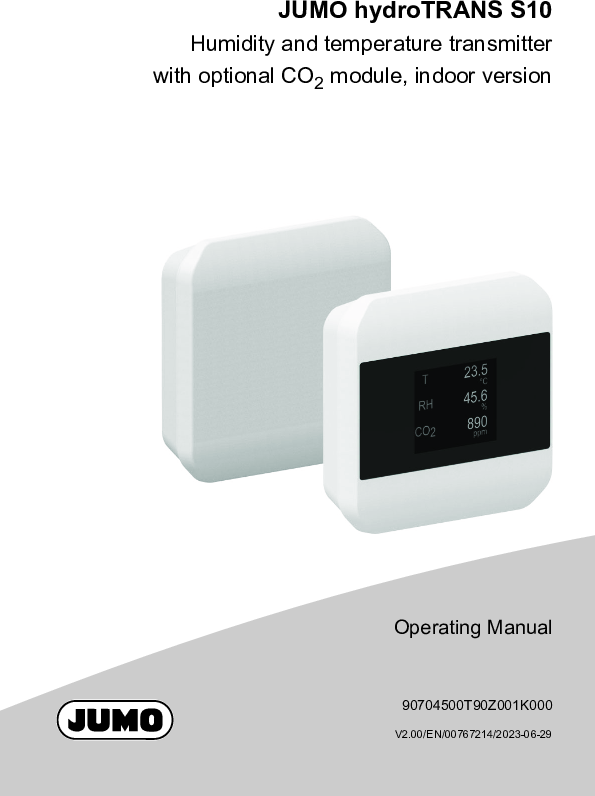

Downloads

Request Offer

Features

Measuring range (relative humidity): 0 to 100 % RH;
Accuracy – relative humidity: ±2 % RH at 25 °C;
Operating temperature: -5 to +55 °C;
Accuracy – temperature: ±0.2 K at 25 °C;
CO₂ measuring range: 400 to 5000 ppm;
Accuracy – CO₂: ±50 ppm + 5 % of the measured value at 25 °C and 1013 mbar;
Voltage supply: 24 V DC, +33 %;
Protection type: IP20;
Vibration / shock resistance: suitable for industrial applications;
EMV interference emission: Class B;
EMV interference immunity: industrial requirements;
Interfaces: Voltage output, current output, Modbus.

Advantages

Enables simultaneous monitoring of multiple climate parameters using a single device;
Provides reliable and accurate measurements, ensuring optimal indoor climate control;
Allows easy integration into building management and HVAC systems through multiple output options;
Reduces installation and commissioning time thanks to flexible outputs and USB configuration;
Improves operational transparency with optional local display of process values;
Minimizes maintenance effort due to stable sensor technology and robust design;
Supports energy-efficient building operation through precise indoor climate monitoring;
Ideal for offices, public buildings, and facility management applications.

Applications
