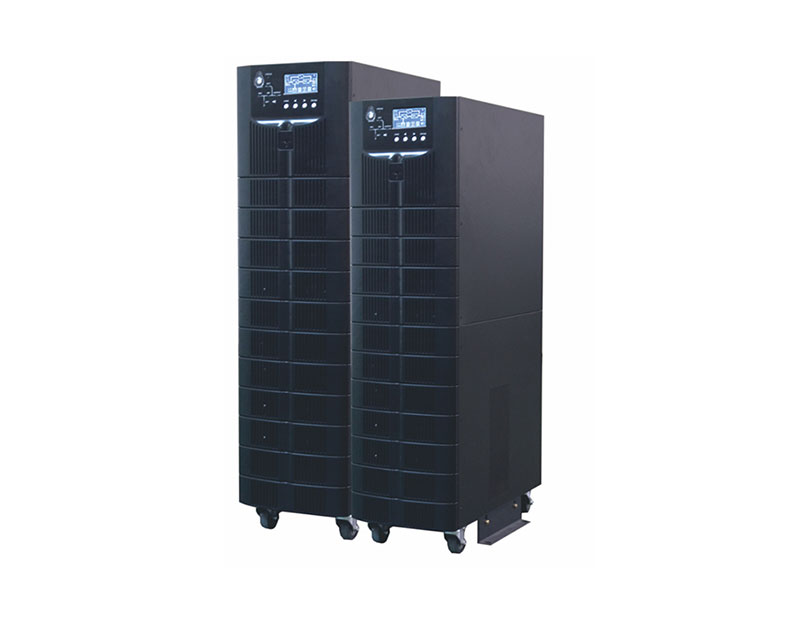

HT11 series tower online UPS 6-20kVA - INVT

The HT11 series is online UPS with the most advanced DSP control technology which can protect the sensitive device from utility fail, over/under voltage, surges, transients, spikes and other electrical abnormalities.
HT11 series, ranging from 6KVA to 20KVA, is double conversion online UPS with fully DSP controlled technology.
more details
Request Offer
The single phase UPS applies the advanced 3-level technology, achieving a efficiency up to 95%. With its compact design of high power density (kW=kVA), HT11 series make it ideal choice for computers, telecommunication equipment and other sensitive devices.
  • High efficiency, up to 95%;
  • kVA=kW, Output PF=1;
  • 3 level of technology, compatible with complicated load;
  • Battery number can be set on LCD;
  • Intelligent charging management, effectively improving the life time of battery;
  • Smaller size with higher power density;
  • Parallel up to 4 units;
  • 12A charger for option, charging for large capacity batteries.
Model HT1106S
HT1115L HT1120L HT1106S-TX
Capacity 6kVA 10kVA 15kVA 20kVA 6kVA 10kVA
Phase Single phase in,single phase out Two phase in, two phase out
Input voltage range 50%-125%(220VAC/230VAC/240VAC)
100% load@80%-125%;  90% load@70%-80%
80% load@60%-70%;  65% load@50%-60%
Input PF ≥0.99 ≥0.98 ≥0.99
Input frequency range 40Hz-70Hz
Output PF 0.9 0.8
Output voltage 220V/230V/240V 110/220VAC
Voltage regulation ±1% ±2%
THDu ≤1%(full linear load) ; ≤5% (none-linear load) ≤1%(full linear load) ;≤5%(none-linear load)
Battery voltage 192VDC
Battery type/number 12V,7Ah*16 12V,9Ah*16 External External 12V,7Ah*16 External
External External External
System Efficiency Normal mode:93%;
ECO mode:98%;
Battery mode:92%
Normal mode:93.5%;
ECO mode:98%;
Battery mode:92%
Normal mode:88%;
ECO mode:93%;
Battery mode:87%
Noise(1 meter away) <48dB@<70%load;
Overload Capability
(Inverter mode)
110%:for 10 min ;  130%:for 1min ;
150%:for 30 sec (shut down the bypass after 1 min)
Overload Capability
(Battery mode)
110%: Shutdown after 10mins; 125%:Shutdown after 10s;
>125%: Shutdown after 1s
Crest Ratio 3:1
Display LED+LCD
Interface Standard:RS232,EPO
Optional: SNMP, USB, dry contactor(AS400),parallel Kit, ECO Kit, external battery cable(standard model), Maintenance bypass, maintenance bypass detecting Kit
W*D*H(mm) 250*562*650
250*562*650 250*562*710 250*504*945
Net Weight(Kg) 59 65 27 34 104 78
18 20 65
  • Airports;
  • Commercial spaces;
  • Data and communication centers;
  • Emergency systems;
  • Hospitals;
  • Hotels;
  • Industrial buildings;
  • Office buildings;
  • Schools;
  • Telecommunications;
  • Transport.
