Process, Instrumentation & Environment

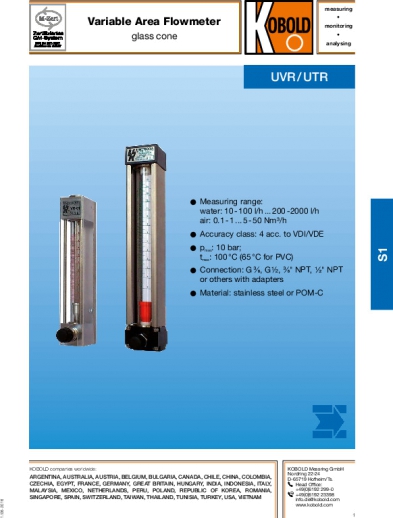

Variable area flowmeter glass cone UVR/UTR - Kobold
The flow meters and switches model UVR and UTR for liquids and air operate on suspended float principle: that is, the installation position is vertical and the direction of flow is from bottom to top.
The instruments have been designed as simple and thus economical measuring systems. The float for UVR and UTR is a bomb from float, whereby the indication point is the top of float. The appliance is available with or without needle valve as well.
The instruments have been designed as simple and thus economical measuring systems. The float for UVR and UTR is a bomb from float, whereby the indication point is the top of float. The appliance is available with or without needle valve as well.
more details
Downloads
Request Offer
Features
Advantages
Industries
F.Fonseca is the representative of Kobold in Portugal.
- Measuring range: 10-100 ... 200-2000 L/h water; / 0,1-1 ...5-50 Nm³/h air;
- Connection: G 3/8, G ½ female;
- Material: POM-C, st. st;
- Max. pressure: 6 bar;
- Max. temperature: 100 °C;
- Accuracy: ±2,5...4% f.s.
Advantages
- Simple and economical air and water flow measurement.
Industries
- Cooling water system;
- Gas monitoring for burners;
- Inert gas controlling.
F.Fonseca is the representative of Kobold in Portugal.
