Pressure calibrator ADT761A-1K - Additel
The new ADT761A series of pressure calibrators adds value and improvements to the Additel automatic pressure calibrator family. New calibration ranges up to 70bar (without external pressure), removable internal pressure modules, models with 0.01% FS accuracy range, faster readability of 2 external pressure modules, new display touch screen, WiFi, Bluetooth, Ethernet, double battery life, and more.
more details

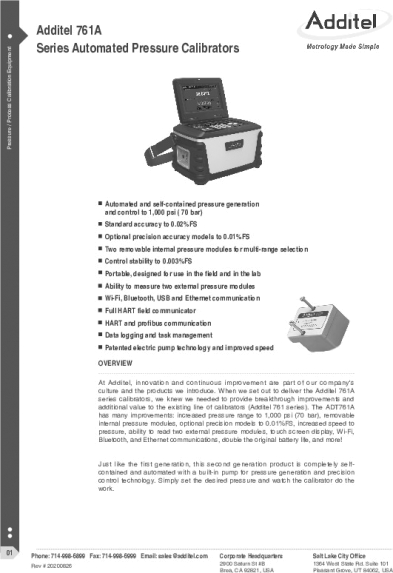

Downloads
Request Offer
The Additel 761A-1K generates and controls pressure from vacuum to 70bar gauge. It can work in absolute and gauge pressure thanks to its built-in barometer. It comes with the CP1K (-0.9 to 70bar) module for the high range and low range can be preconfigured based on the variety of modules available down to 2bar gauge. This unit can reach 70bar in 45 seconds. It has an accuracy of 0.02%FS, guaranteed for 1 year within the range of the pressure module in use. The stability is 0.005% FS. With 6-digit resolution, you can use all pressure measurement units.
The Additel 761A-1K calibrator supports the ADT160A intelligent digital pressure modules for relative, vacuum and absolute pressure from -1bar to 4200bar.
Its design allows for laboratory and field work. It has WiFi, Bluetooth, USB and Ethernet communication. In addition to HART and Profibus protocol.
Task management and data logging are available. Thanks to its new patented technology pump it can improve its speed and thus get better results faster.
Features
Advantages
Industries
F.Fonseca is the representative of Additel in Portugal.
The Additel 761A-1K calibrator supports the ADT160A intelligent digital pressure modules for relative, vacuum and absolute pressure from -1bar to 4200bar.
Its design allows for laboratory and field work. It has WiFi, Bluetooth, USB and Ethernet communication. In addition to HART and Profibus protocol.
Task management and data logging are available. Thanks to its new patented technology pump it can improve its speed and thus get better results faster.
Features
- Range de -0.9 a 70bar gauge;
- 2 internal modules;
- Accuracy 0.02%FS, stability 0.005%FS;
- Improved speed;
- Data logger and task management;
- Wi-Fi, Bluetooth, USB, Ethernet;
- HART e Profibus.
Advantages
- No need of external pressure to 70bar;
- Robust for field work.
Industries
- Calibration labs;
- Industrial maintenance;
- Quality and industry.
F.Fonseca is the representative of Additel in Portugal.
