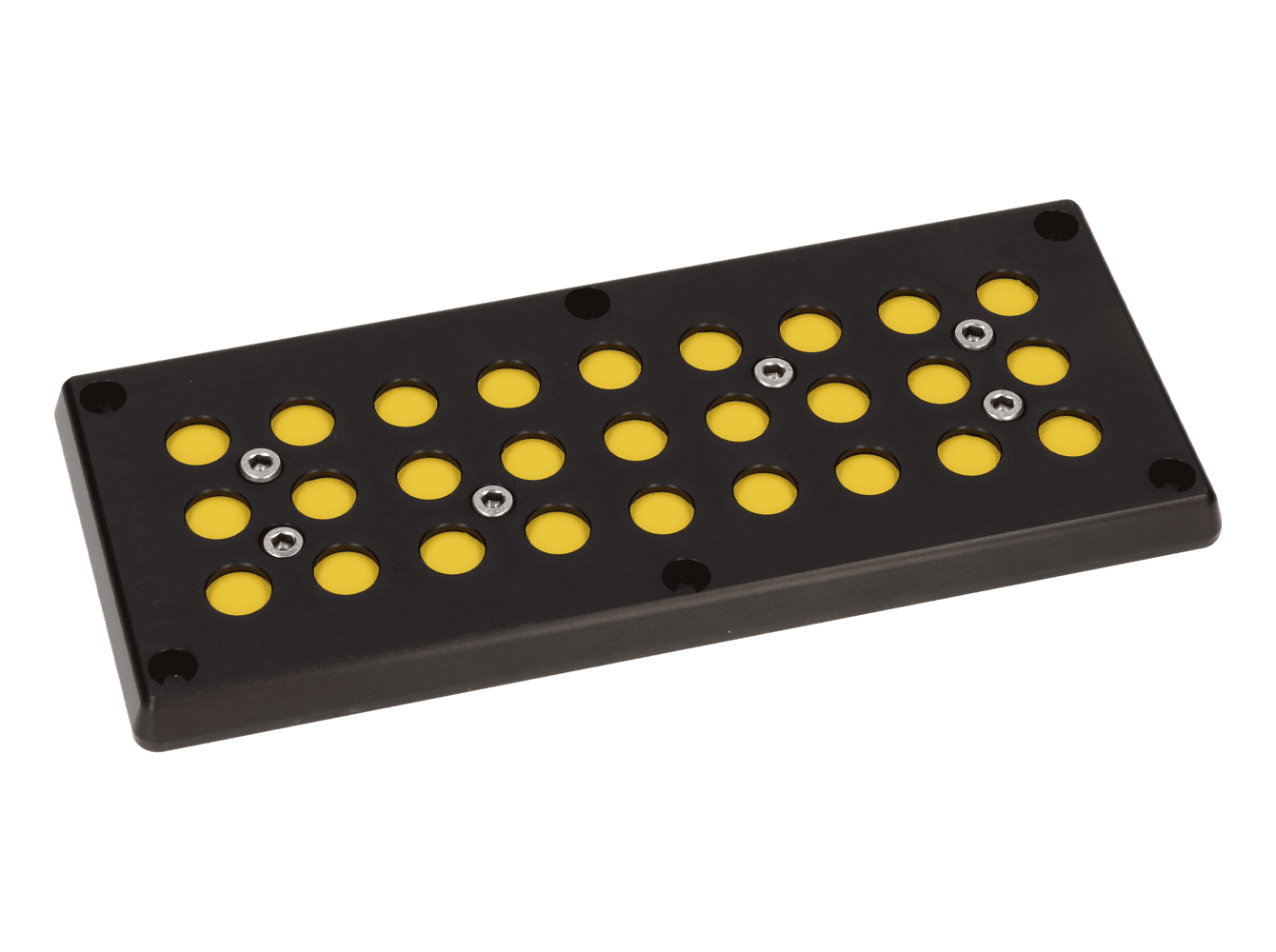

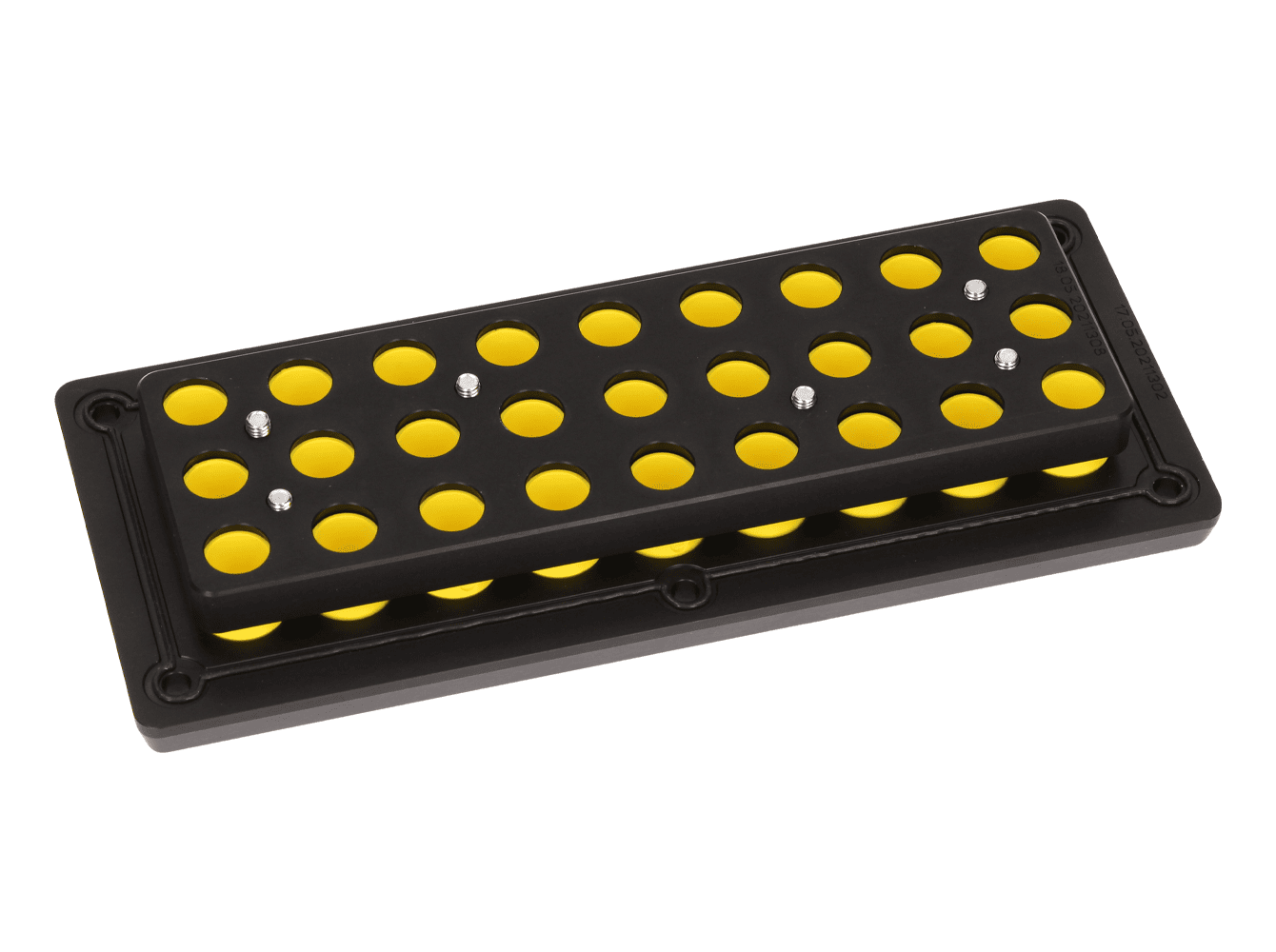

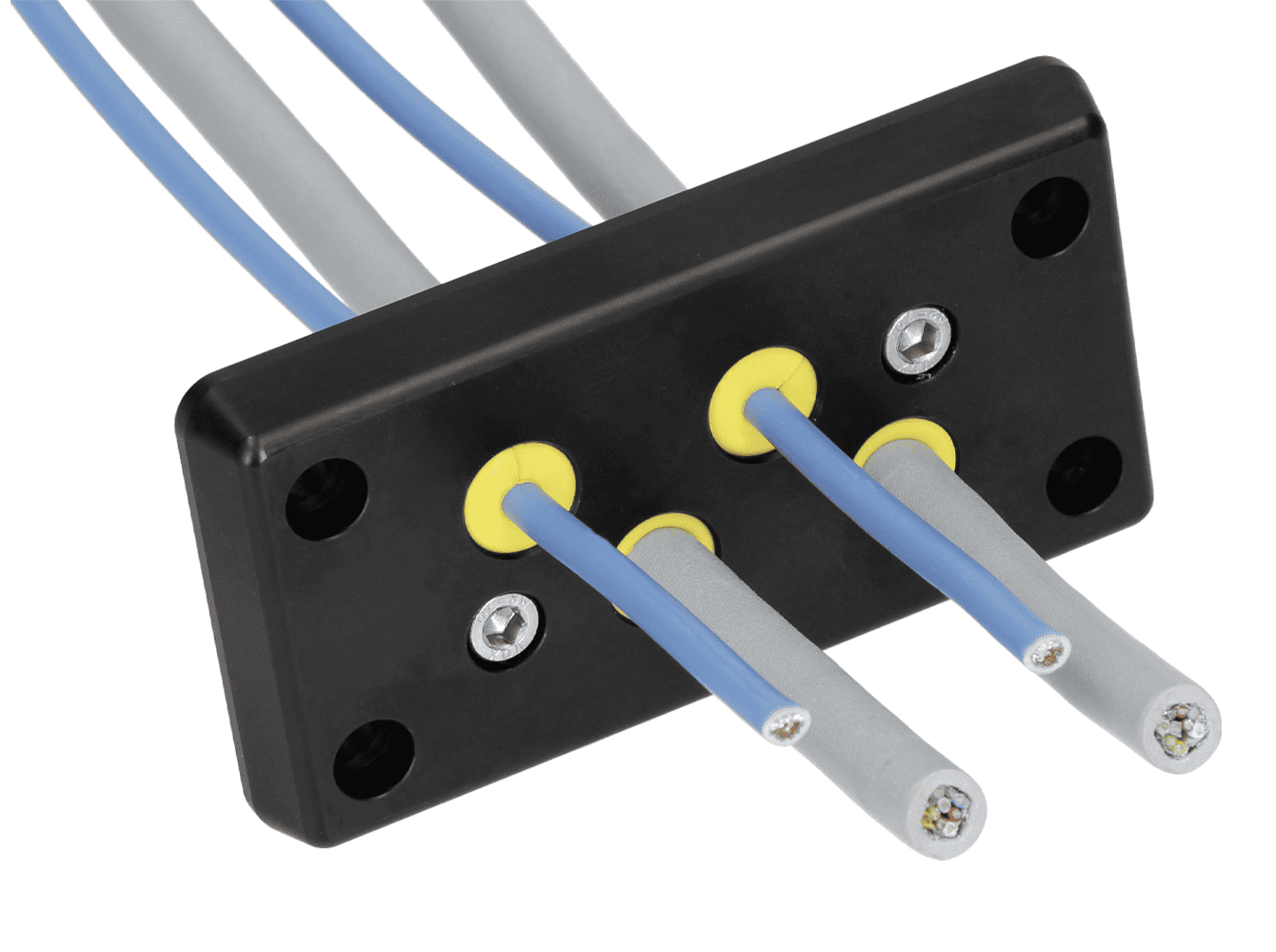

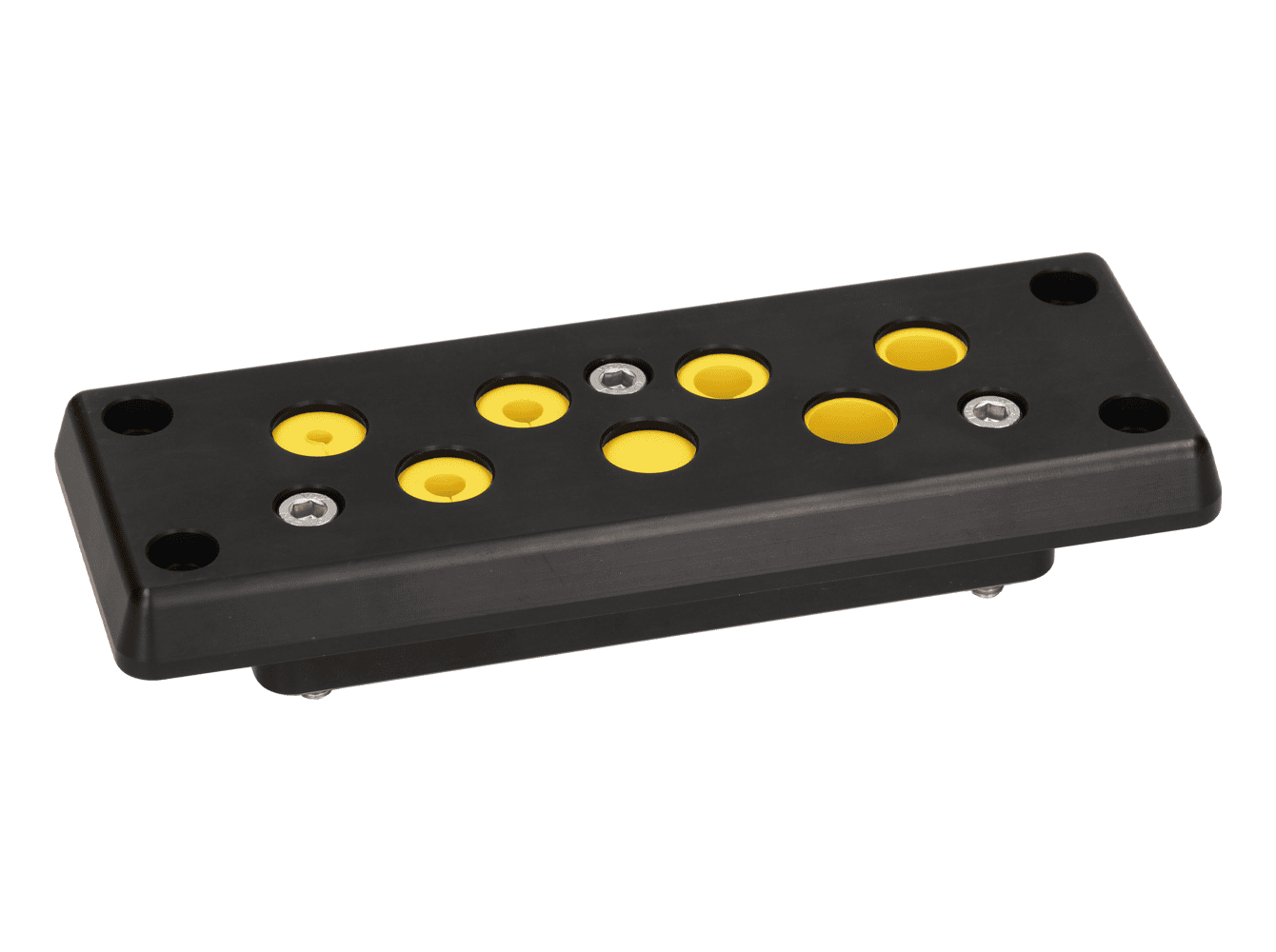

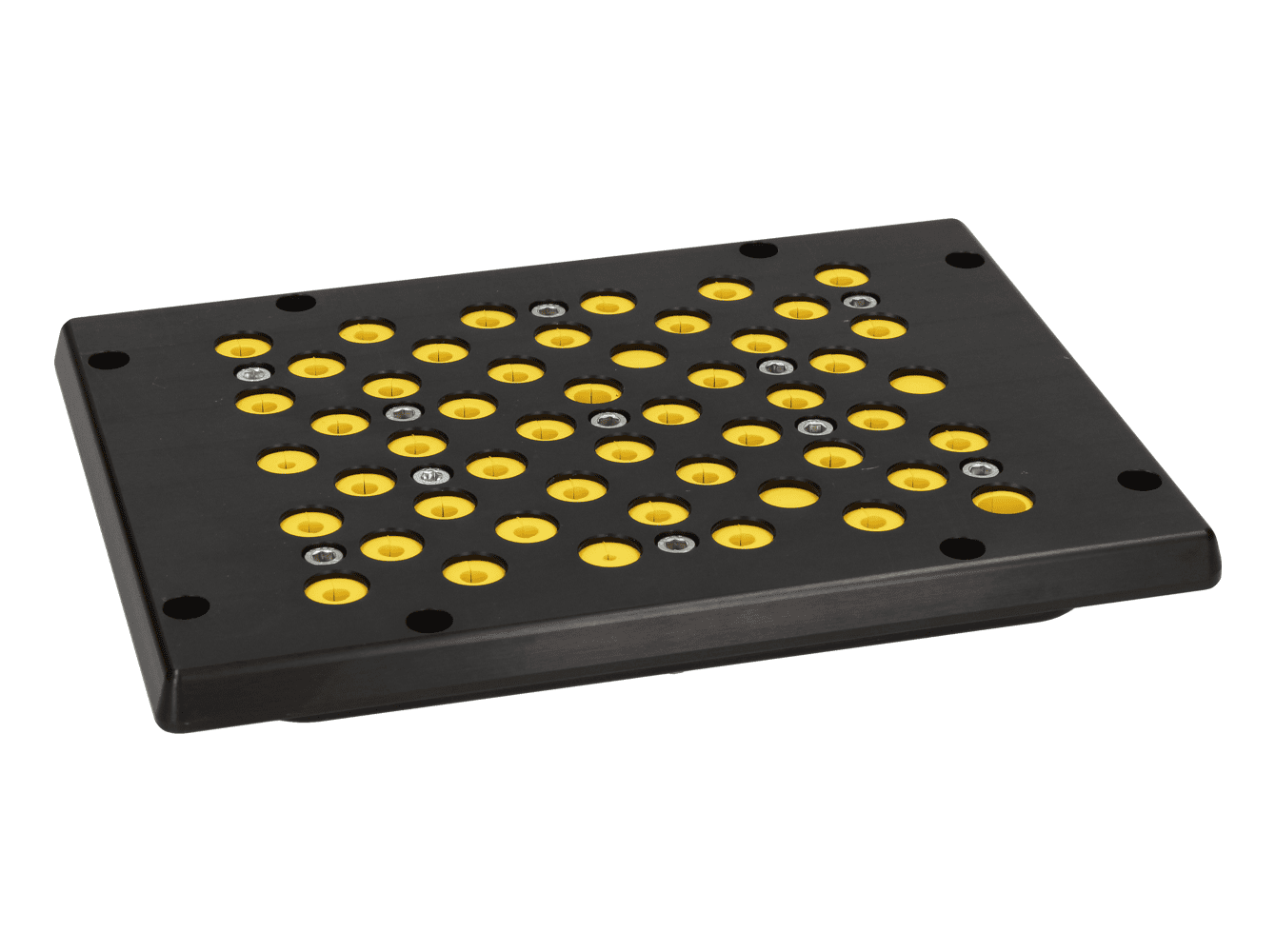

ATEX cable entry plate KDP/P-Ex – Murrplastik

Name: ATEX cable entry plate KDP/P-Ex Murrplastik
Brand: Murrplastik

The KDP/P-Ex cable entry system from Murrplastik is designed for high-density cable routing in hazardous areas (ATEX). Murrplastik positions this solution as a robust and installation-efficient interface between field cabling and enclosures, ensuring sealing, strain relief, and compliance with explosion protection requirements. Murrplastik integrates flexibility, mechanical stability, and rapid assembly into a single system, making it suitable for demanding industrial environments where reliability and certification are critical.

more details

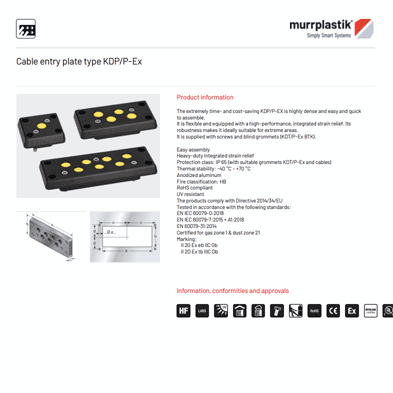

Downloads

Request Offer

Features

Protection class IP65 when used with suitable KDT/P-Ex grommets and cables;
Thermal stability from -40 °C to +70 °C;
Anodized aluminum construction;
Fire classification: HB;
RoHS compliant;
UV resistant;
Compliant with Directive 2014/34/EU;
Tested according to EN IEC 60079-0:2018, EN IEC 60079-7:2015 + A1:2018, EN 60079-31:2014;
Certified for gas zone 1 and dust zone 21 applications;
Marking: II 2G Ex eb IIC Gb;
Marking: II 2D Ex tb IIIC Db.

Advantages

Reduced installation time due to pre-configured entry system;
Lower total installation cost through simplified mounting and high packing density;
Increased system reliability with integrated strain relief and secure sealing;
Flexibility to adapt to different cable diameters and configurations;
Minimized risk of installation errors compared to conventional cable glands;
Optimized use of enclosure space.
