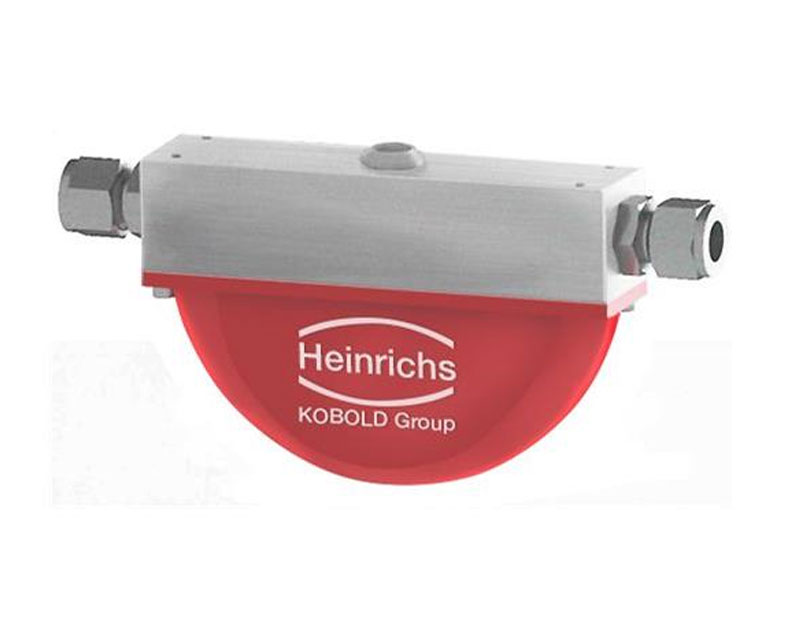

Flowmeter of liquids and gases, viscous and corrosive HPC – Kobold

The HPC flowmeter is unique in the world, as it has a Coriolis measuring tubes revolutionary and innovative design, providing a high dynamic performance, being able to work at higher frequencies without external vibrations interference.

The HPC is precise and resistant, ideal for applications with very low flow, it gives simultaneous measurement of mass flow, density and temperature, also calculating the volume flow.
more details
Request Offer
For the measurement of very small flow rates it is common practice to use single pipe Coriolis flowmeters. However, with the use of just one measuring pipe the influence of external interferences increases dramatically, often necessitating a costly decoupling. The HPC uses a dual bent pipe measuring system. Furthermore, the sensor coils are not mounted on the measuring pipes anymore but between the pipes. This provides the sensor with a significantly noise-reduced and predictable dynamic behaviour, capable of working at higher frequencies, thus further decoupling the sensor measurement from external vibrations.

With these characteristics the HPC Coriolis sensor is therefore not only extremely accurate, but also particularly resistant against external interferences. The sensor is therefore very suited for very low flow measurements for all applications for nearly all liquids.

  • High precision +/- 0.1% do V.M;
  • Immune to vibrations;
  • Temperature up to 180ºC;
  • Robust and flexible design;
  • HART communication.
  • High performance in a compact body;
  • Suitable to measure very low flow;
  • Different design to suite different applications;
  • Resistant to liquids and gases, viscous and corrosive.
  • Chemical;
  • Food and beverage;
  • Petrochemical;
  • Pharmaceutical;
  • Refineries.

F.Fonseca is the representative of Kobold in Portugal.
