Process, Instrumentation & Environment

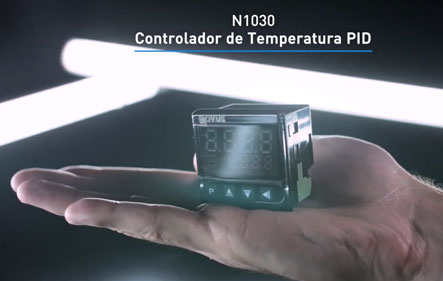

Temperature controller N1030 – Novus
N1030 is the most compact temperature controller in the market.
Easy to install and configure, the N1030 fits perfectly into the most distinct panels, including small ones. It can be configured to accept thermocouples type J, K and T, and also Pt100.
Easy to install and configure, the N1030 fits perfectly into the most distinct panels, including small ones. It can be configured to accept thermocouples type J, K and T, and also Pt100.
more details

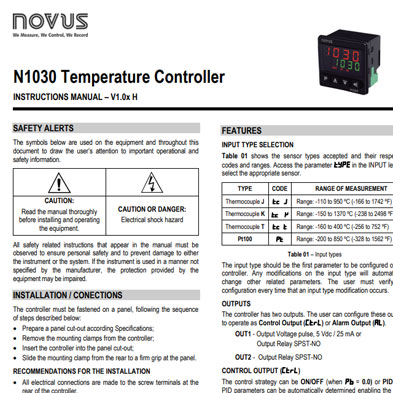

Downloads
Request Offer
The N1030 can work as ON/OFF or PID control mode, which allows ideal process optimization, reducing oscillations, making the system more stable and efficient.
The controller has two outputs that can be used for alarm or control. Its detachable terminal block facilitates connections.
The high-bright, easy-to-view dual display features a very low profile that fits perfectly in the panel.
With only 35mm depth, there is no contact between the terminals and the panel bottom.
Features
Advantages
Industries
F.Fonseca is distributor of Novus in Portugal.
The controller has two outputs that can be used for alarm or control. Its detachable terminal block facilitates connections.
The high-bright, easy-to-view dual display features a very low profile that fits perfectly in the panel.
With only 35mm depth, there is no contact between the terminals and the panel bottom.
Features
- Input: Thermocouple J, K, T and Pt100;
- Control mode: ON/OFF or PID;
- Outputs: SSR Pulse, Relay;
- Dimensions: 48x48x35mm;
- Sampling rate: 200ms;
- Power supply: 100-240Vac / 48-240Vdc or 12-24Vdc / 24Vac;
- Maximum consumption: 5A;
- IP65.
Advantages
- Reduced size;
- Simple adjustment;
- Measurement reliability.
Industries
- Furnace manufacturers;
- Kilns;
- Process.
F.Fonseca is distributor of Novus in Portugal.
