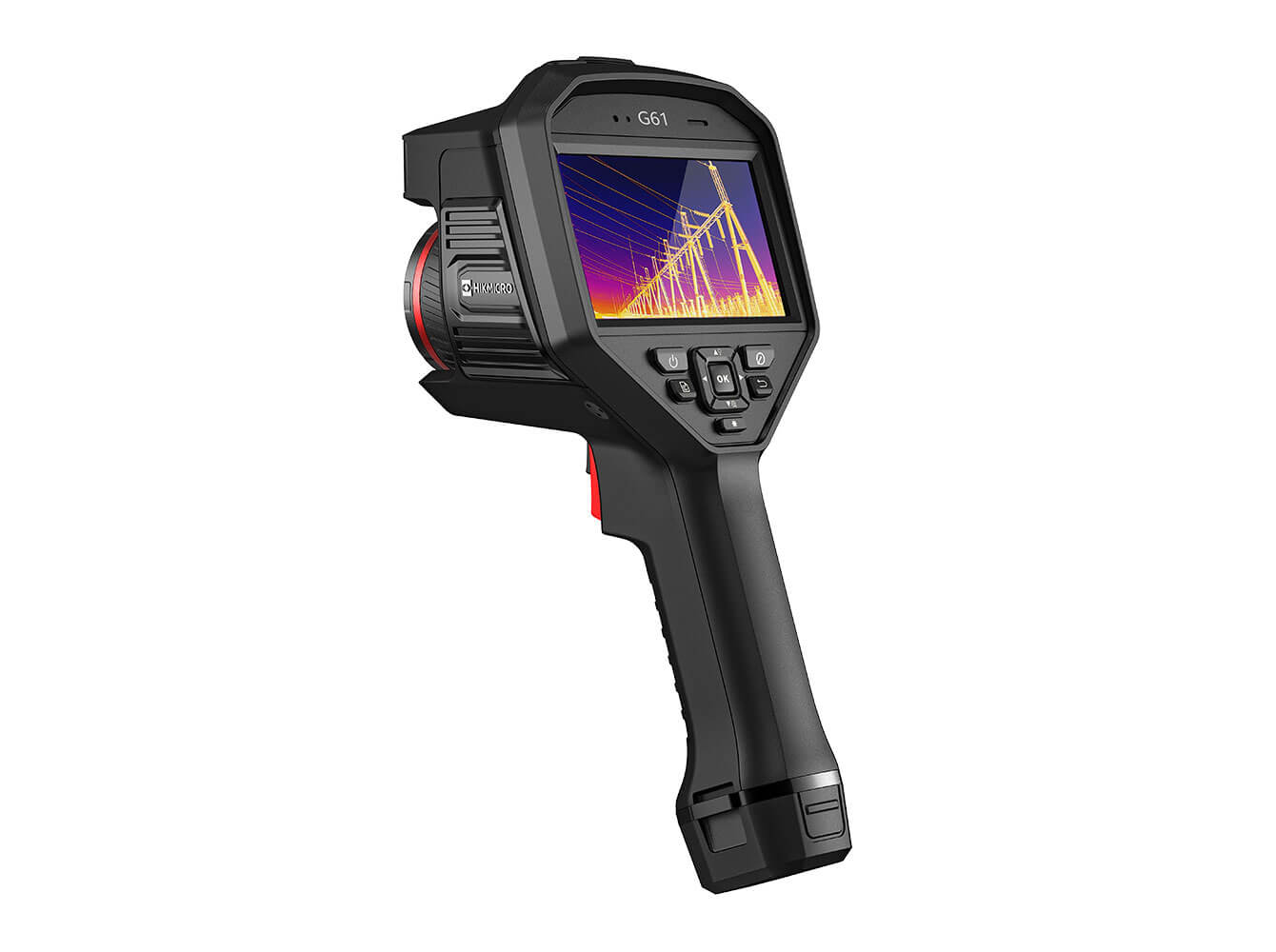

Handheld thermography camera G61 - HIKMICRO

This HIKMICRO G61 handheld thermal camera is a device with both optical and thermal images. It can measure temperature and distance, record videos, take snapshots, and trigger alarms. The built-in high-sensitivity IR detector and the high-performance sensor detect temperature variation and measure real-time temperature. The built-in laser module detects the target distance. The device is easy to use and adopts an ergonomic design. It is widely applied to substations, electrical problems prevention and detection, and reconnaissance surveys in the construction area.

The G61 high-performance handheld thermal camera is ideal for industrial, predictive, oil and gas, and utility maintenance inspections.

more details

Downloads

Request Offer

Has a high sensitivity (NETD < 35 mK) and high resolution (640 x 480) HIKMICRO VOx detector, and temperature calibration up to 650°C (temperature range of up to 2000ºC with the G61H model). Advanced features help thermal imaging professionals to quickly survey equipment and find signs of malfunction, such as GPS and compass annotations, continuous digital zoom, and 1-tap level and span. Connect the HIKMICRO Viewer App or HIKMICRO Analyzer software to transfer, analyze, and share pictures, and generate reports for free.

Features

Thermal resolution: 640 x 480 (307,200 pixels), NETD: <35 mK (@ 25 °C, F#=1.0);
Temperature measurement range: -20 °C to 650 °C (-4 °F to 1202 °F);
Accuracy: Max (±2°C/3.6°F, ±2%);
1.x to 8.x continuous digital zoom;
Manual, automatic, and 1-Tap Level and Span;
GPS and compass annotation functions;
Long-distance laser light supplement for thermography targets;
LED light supplement provides light in dark scenarios;
5 Image modes: thermal, Fusion, PIP, Blending, and Optical modes.

Advantages

5 quick focus modes: support for 5 focus modes (laser assisted AF, continuous AF, AF, manual focus, touch AF) and a fast focus speed of 2 seconds help save time by providing sharper images for more accurate temperature measurements;
3 add-on lenses: 0.5x, 2x, and 3.3x are available for choice. Different teleconverter gives different Field of View (FOV), which gives more choices when facing different scenarios;
Up to 2000ºC temperature range with the G61H handheld thermography camera: with a measurement range of up to 2000ºC (3992ºF), it can handle industrial furnace applications, refractory, and inspecting tools/fixtures in metal smelting at these extreme temperatures;
Embedded laser distance meter: an integrated laser distance meter provides accurate distance and area measurement from long distances, more convenient in setting parameters and generating reports;
Complete image annotations: in addition to supporting voice, text and QR code scan annotations, GPS and compass functions automatically add location and direction information to the image, helping to improve inspection efficiency and productivity;
Interchangeable battery system: includes 3 interchangeable li-ion batteries and a dual bay charger to provide you with up to 12 hours of operation;
Radiometric video analysis: supports recording of radiometric video in-camera SD card storage, including all temperature data, for post analysis on PC software. Works seamlessly with HIKMICRO analyzer software for intuitive viewing, advanced analysis, and processing of thermal data.

Applications
