KNX tile display – HDL Automation

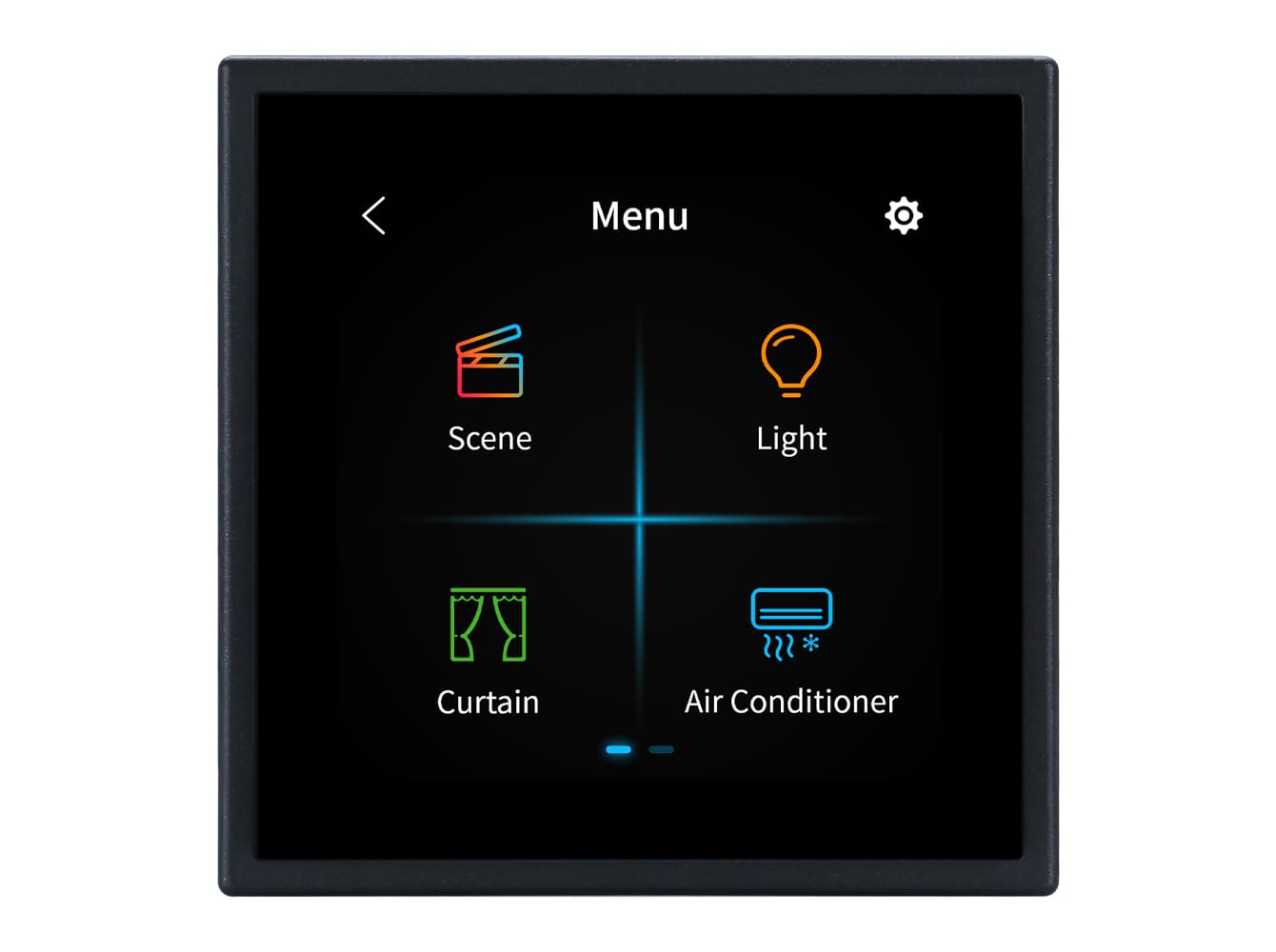

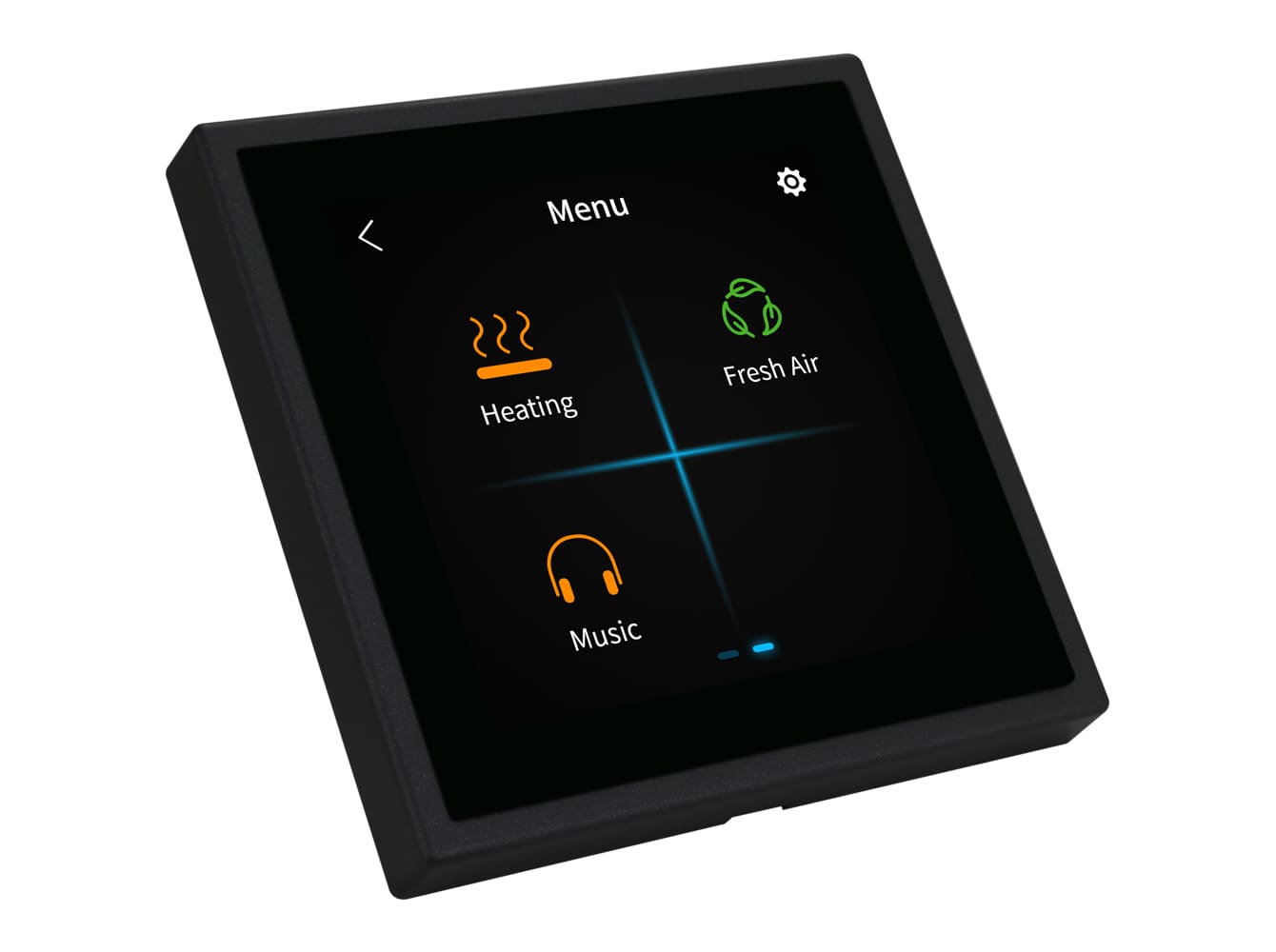

The KNX tile display from HDL Automation is a multi-functional control panel for home automation. With a 3.5-inch LCD screen and full-screen touch control, it is convenient for users to control lighting, curtains, scenes, AC/FCU, floor heating, music, and fresh air intuitively.

more details
Downloads
Request Offer
Features
  • Built-in temperature and humidity sensor;
  • Built-in proximity sensor, when the panel detects human body, the LCD screen will wake up;
  • Adjustable LCD backlight;
  • LCD screen wakes up automatically;
  • Screen lock setting;
  • 5 scene shortcut buttons and 1 main menu button available in main interface;
  • Time and environment status display setting;
  • Dedicated pages for lighting, curtain, scene, AC/FCU, floor heating, music and fresh air control;
  • A total of 20 control keys can be set on the lighting page. The control types are: Switch, dimmer, RGB and CCT;
  • Curtain control: up to 8 curtains supported. Supports opening/closing, stopping, percentage adjustment;
  • Scene control: up to 20 scenes supported;
  • AC/FCU control: Supports switching, temperature adjustment, fan speed adjustment, mode switching of up to 3 AC/FCU;
  • Floor heating control: Supports switching, temperature adjustment, and mode switching of up to 8 floor heating control;
  • Floor heating modes: normal, day, night, away, timer;
  • Music play: 1 music player supported, list not supported (source switching not supported);
  • Fresh air control: Supports switching, fan speed adjustment, mode switching of 1 fresh air control.

Advantages
  • Centralized control of multiple building systems from a single interface;
  • Improved user interaction through an intuitive graphical interface;
  • Reduced system complexity by consolidating control functions;
  • Enhanced energy efficiency via integrated environmental monitoring;
  • Scalable configuration aligned with KNX architecture.

Applications
  • Commercial buildings;
  • Hotels and hospitality environments;
  • Integrated building management systems (BMS);
  • Office automation systems;
  • Smart homes.

F.Fonseca is distributor of HDL Automation in Portugal.
