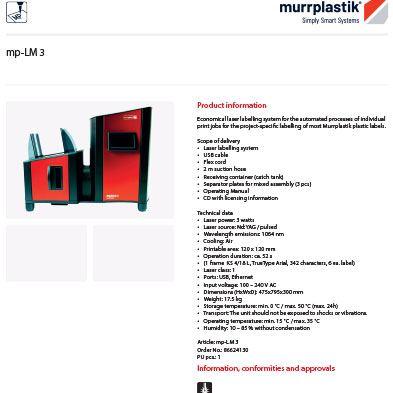

Laser marking printer mp-LM3 – Murrplastik

Murrplastik introduces the laser marking printer MP-LM3, a system that allows you to realize abrasion-proof quality labelling on a wide variety of base materials.
With its low initial cost, plus minimal operating and lifecycle costs, the printer mp-LM3 is the perfect labelling system for companies with a medium to high volume of labelling work and high standards regarding the quality of labelling produced. The Laser marking printer mp-LM 3 from Murrplastik is able to automatically label ID plates for leads, lines, terminals, control panels and signaling equipment, switchgear, media devices and much more.
more details
Request Offer
The flexible, automated processes of the mp-LM 3, suitable for the various Murrplastik materials, are the highlight of this inexpensive laser labelling system. The PC / PP materials are stacked directly into the input shaft. Aluminum, stainless steel and laser foil materials are fed into the magazine via a special carrier plate. Should there be more than one label type required for a print job, the correct number will be ensured with dividing plates at the type change. The output of the completed labelled material will be in loose stacks into removable receiving containers, which can also be replaced by company-specific storage system boxes.
The mp-LM 3 can be controlled and operated precisely via USB port or Ethernet and a PC by utilizing the tried and proven ACS software.
  • Magazine capacity: 40 label plates;
  • Laser: 3 watt Nd-YAG;
  • Laser class 1 (safe);
  • Power consumption: 200W;
  • Dimensions: 475 x 795 x 300 mm (H x W x D);
  • Weight: 17.5 kg;
  • Ports: USB and Ethernet
  • Aluminum and stainless steel materials on a carrier plate, can be stored in magazines;
  • Automated processing of the laser marking;
  • Insert different label types simultaneously;
  • High quality;
  • Low purchase and operating costs;
  • No consumable supplies necessary;
  • Easy to use.
  • All industries.

F.Fonseca is the representative of Murrplastik in Portugal.
