Laser shaft alignment system ASHOOTER+ - Synergys Technologies

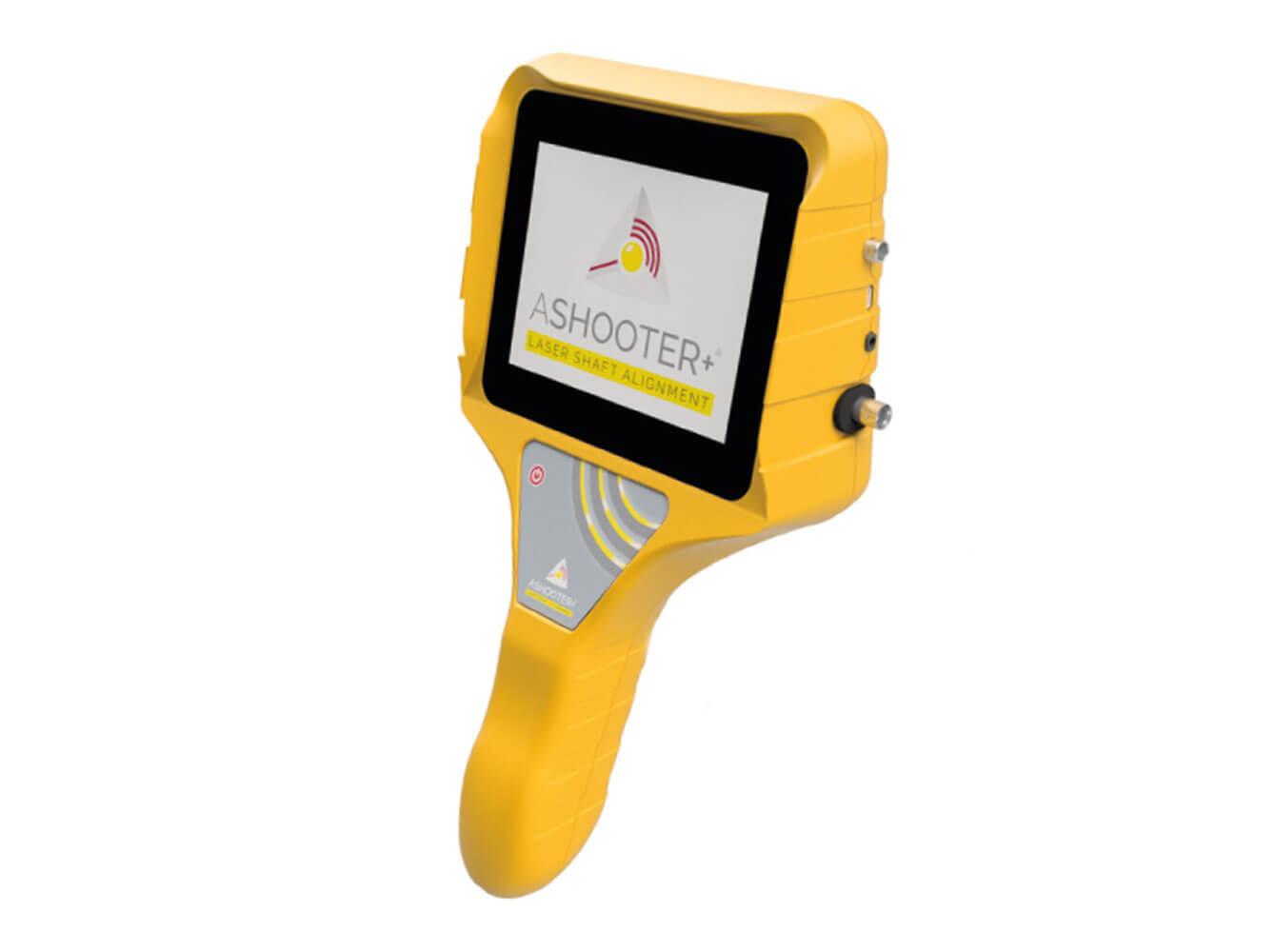

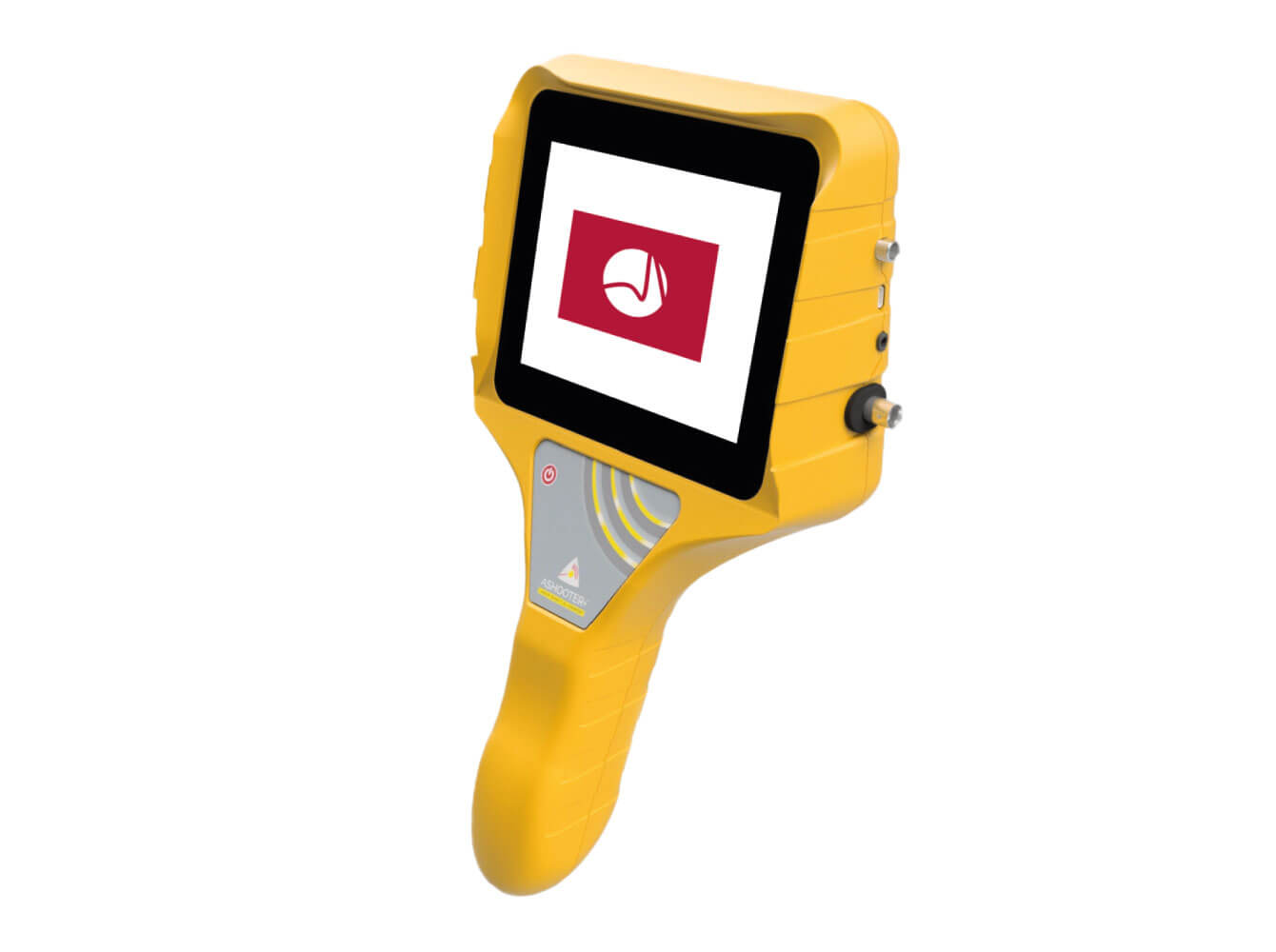

The ASHOOTER+ is an entry-level laser shaft alignment system for horizontal machines. This system makes the alignment process easier and more cost-efficient. It uses wireless transducers with digital inclinometers, with a high-resolution (0.001 mm) 30 mm CCD laser emitter that allows live mode shaft correction. It allows easy vertical/horizontal soft foot analyses and shim correction.

The 160x120 pixels IR Flir Lepton provides thermal imaging to complement machine analysis. And reports can be edited on a PC via USB output. Optionally, the ASHOOTER+ can be upgraded for vibration analysis with the specific wired VSHOOTER+ sensor.

more details

Downloads

Request Offer

Features

30 mm CCD laser detector with 0.001 mm resolution;
Horizontal shaft alignment;
Soft footer checker and thermal compensation;
Tolerance table for shaft alignment;
Live foot correction for the horizontal plane;
Shimming calculation for the vertical plane;
5.7” touchscreen technology;
Embedded digital visible 5MP camera;
Arm Cortex A7 processor;
Li-Ion batteries;
Embedded Flir Lepton 160x120 px IR thermal camera;
Reposting capabilities with a machine picture to PC (USB);
Optional VSHOOTER+ vibration analysis program and ICP sensor, strong magnet, and light straight flexible cable (BNC);
IP54 protection;
Stereo headphone output;
With a professional ABS transport case.
