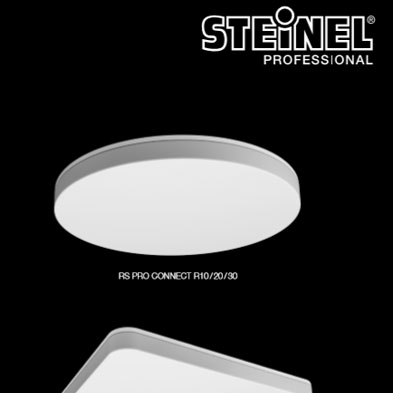

Round RS PRO Connect R30 - Steinel

Stylish. Progressive. Practical. The round Steinel RS PRO Connect R30 is also available as a slave version without sensor for straightforward interconnection via Bluetooth. For evenly distributed light whenever needed – and optimum illumination for hallways, corridors and stairwells. With an output of 24.5W provides 3120/3200lm of light at 3000/4000K. Dimensions of ø420x55mm.
more details
Request Offer
Sensor-switched light 4.0 – perfectly interconnected. In the future too.

Connected lighting perfection: wirelessly adjustable via app, the RS PRO Connect R-series with four light functions (basic light, backlight, dimmable main light and emergency light) is the most intelligent and user-friendly digital sensor-switched light system on the market – and truly impresses planners, electricians and building owners alike. The RS PRO Connect R series skilfully combines clean-cut, universally suitable design and optimum illumination with extremely easy installation and interconnection via app. Thanks to modern Bluetooth technology as well as update and IoT capability, the digital sensor-switched light system is absolutely future-proof.

And impresses with high-precision HF sensor, outstanding efficiency (134 lm/W) and perfectly even light distribution. With two enclosure designs (round/square) and five sizes, the RS PRO Connect R-series provides the right solution for every taste and need with lighting up to a maximum of 3150 lumens – in neutral or warm white light. Basic and main light level are easy to set via smartphone.

Optionally selectable via app, the backlight creates a particularly inviting lighting mood. The convenient neighbouring-group function ensures seamlessly efficient lighting at all times. In the event of a power failure, the optional emergency light module powered by rechargeable battery reliably provides sufficient light. Upshot: whether for new build or refurbishment – the Steinel RS PRO Connect R series is by far the most comprehensive lighting solution of our time.


RS PRO Connect R30, NW 057114
RS PRO Connect R30, WW 057145
Dimensions (Ø x H) 420 X 55 mm
Power supply 220 – 240 V, 50 / 60 Hz
Sensor type High frequency
Output (lights) 24.5 W
Luminous flux, NW 3200 lm
Luminous flux, WW 3120 lm
Colour temperature, NW 4000 K / SDCM 3
Colour temperature, WW 3000 K / SDCM 3
Colour rendering index 80 - 89
LED life expectancy 55.000 h (L80B50)
Angle of coverage 360º
Reach Ø 1 - 10 m
Twilight setting 2 – 2000 lx
Time setting 5 sec. – 30 min.
Basic light level 10 - 50%
Main light level 50 - 100%
Soft light start Yes
IP rating / Protection class / Impact resistance IP40 / II / IK07
Settings via Bluetooth
Connectivity Neighbour, Group Wireless via Bluetooth
Material Plastic (base) and PC Opal (shade)
Manufacturer's Warranty 5 years

  • Interconnectable and adjustable via Bluetooth;
  • Backlight function;
  • Optional basic lighting level 10 - 50%;
  • Optional basic light level 50 - 100%;
  • Soft light start;
  • Optional emergency light;
  • Metal shrouds for defining the direction of sensor detection.
  • Airports;
  • Commercial spaces;
  • Hospitals;
  • Hotels;
  • Industrial buildings;
  • Office buildings;
  • Schools.
