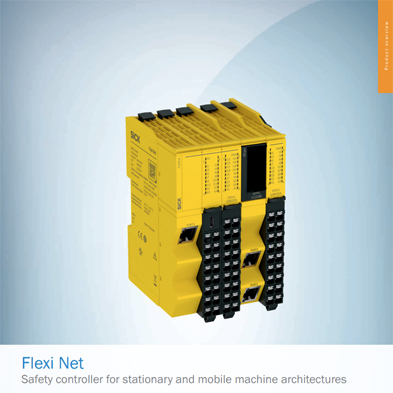

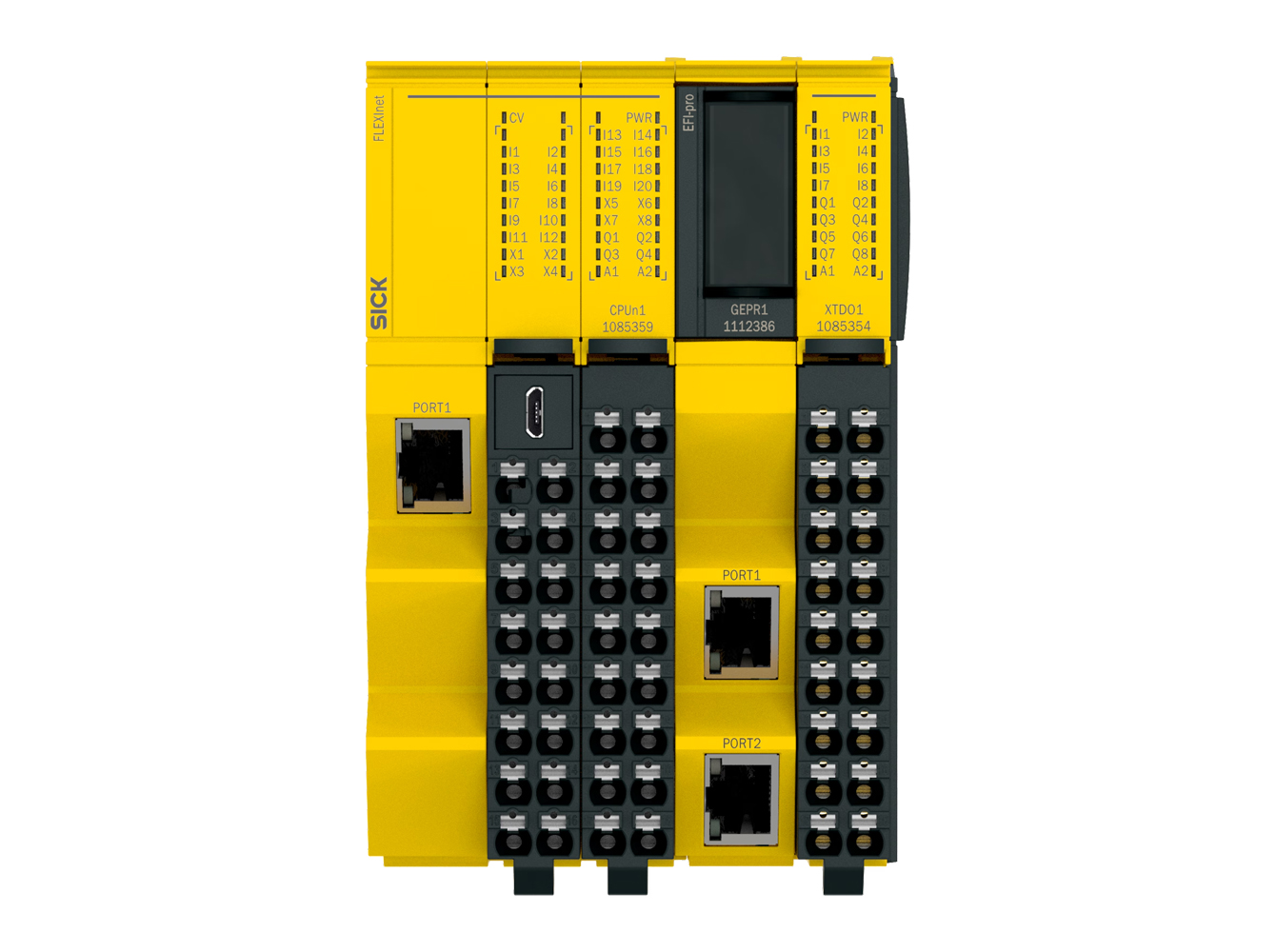

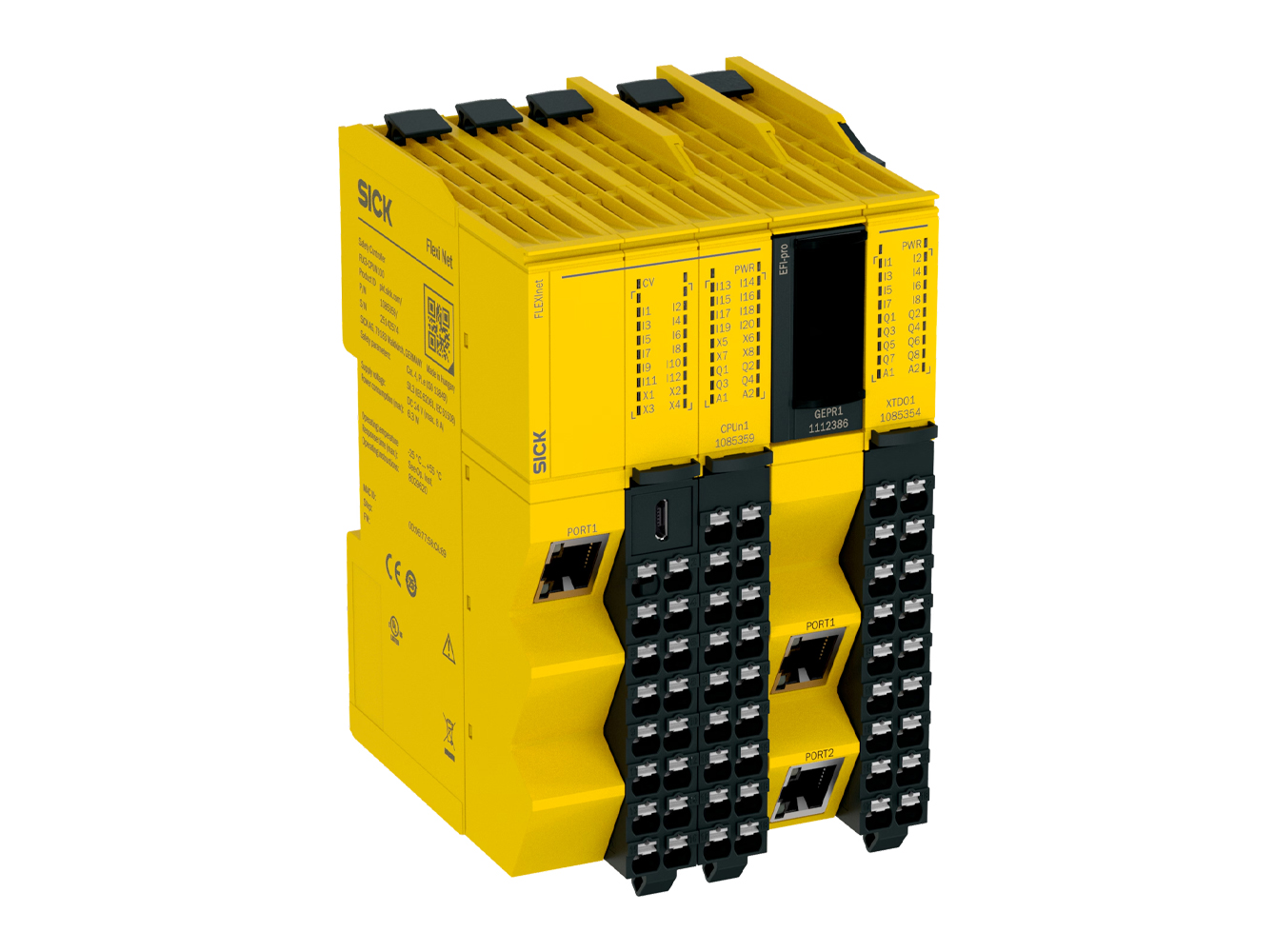

Safety controller Flexi Net - SICK

Flexi Net from SICK is a powerful safety controller for modern machine architectures. The scalable control architecture enables the addition of up to 12 Flexi I/O modules and the creation of a secure machine network along the production line. With up to 512 TÜV-certified function blocks and a minimum logic cycle time of 4 ms, Flexi Net offers high performance up to performance level e (PL e, EN ISO 13849-1). Sensors can be integrated into the safety controller in a variety of ways – thanks to EFI-pro and Flexi Loop. Safe Motion via integrated HTL inputs and application-specific function blocks meets the requirements of mobile robots. Live diagnostics, together with central configuration via the Safety Designer, ensure fast commissioning and easy maintenance.

more details

Downloads

Request Offer

Features

Main module expandable with 12 Flexi I/O modules;
Powerful logic with up to 512 TÜV-certified function blocks;
Secure communication via EFI-pro;
Safe Motion via HTL interface and CAN lists;
Response time (Fast shut off): 4.5 ms;
Supports common fieldbuses;
Compatible with Safety Configuration Deployment and Flexi Loop.

Advantages

Adaptive and future-proof for stationary and mobile requirements;
Individual safety solutions thanks to configuration in the Safety Designer;
Simple sensor integration and control networking thanks to secure communication along the production line;
Cost-efficient, safe movement monitoring thanks to TÜV-certified function blocks and predefined safety functions;
Compact machines thanks to short distance to hazardous points;
Seamless integration into standard machine controllers for comprehensive diagnostics;
Fast configuration transfer and commissioning;
Reduced wiring and number of inputs thanks to safe series connection.

Applications
