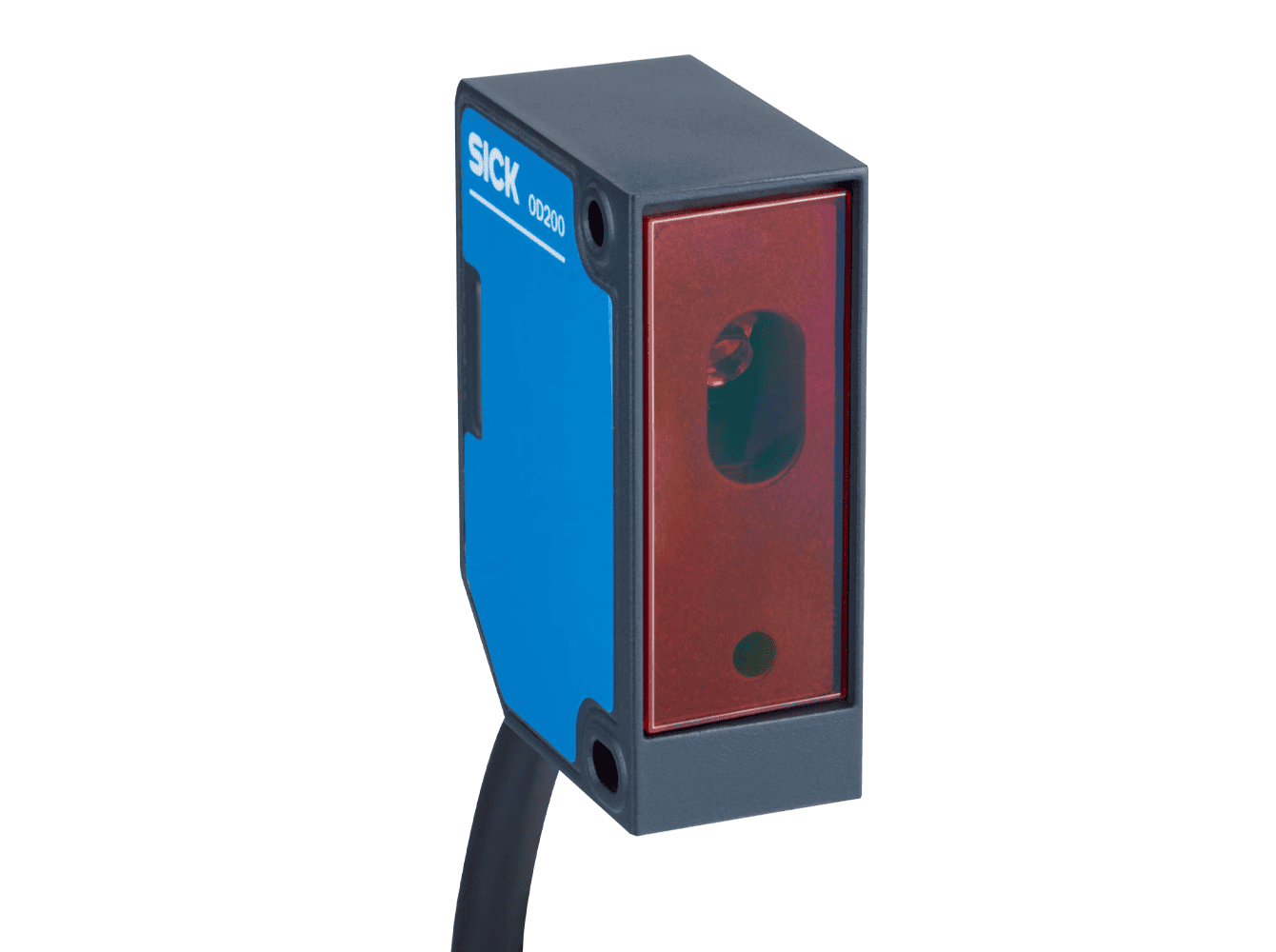

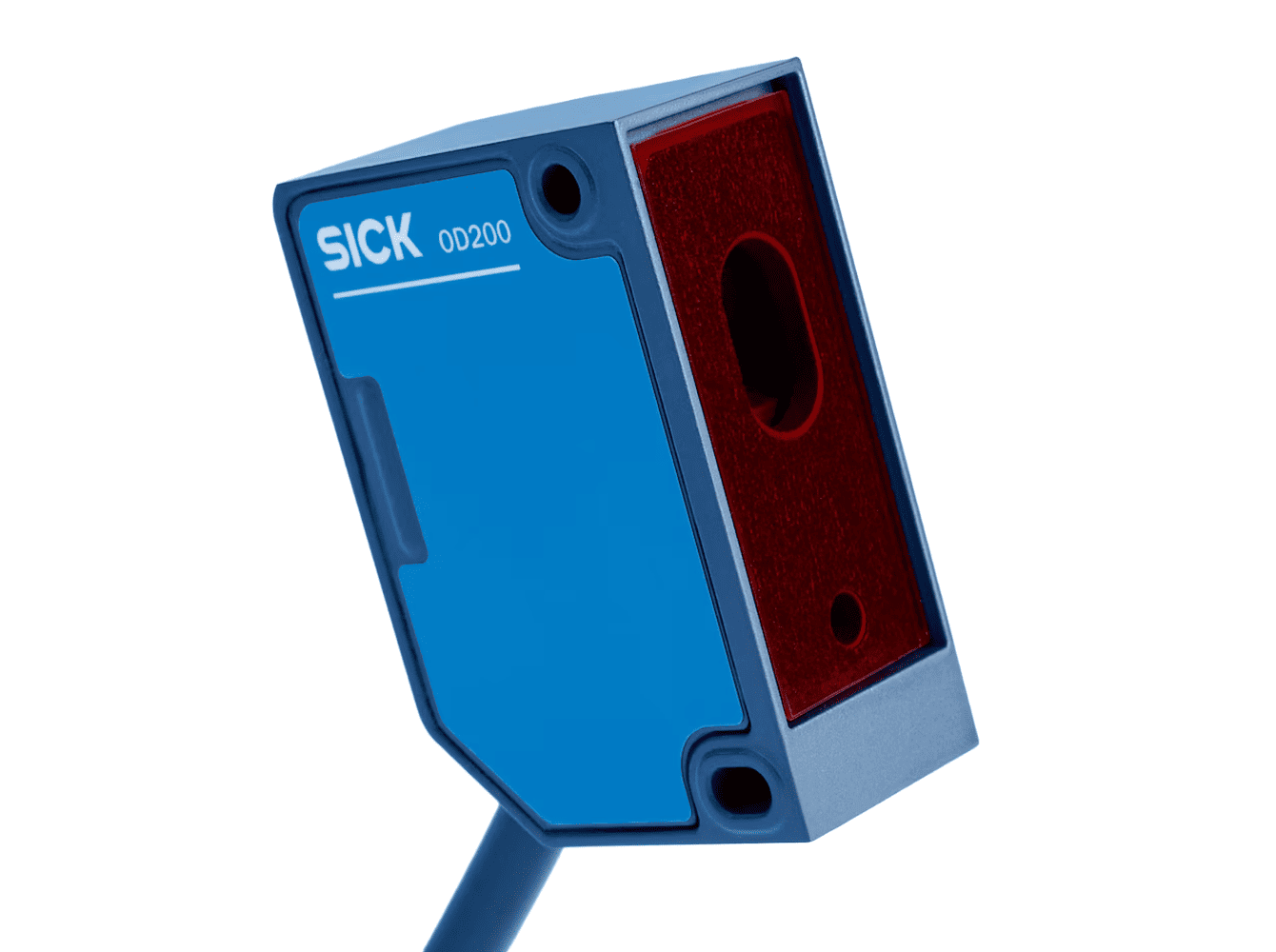

Distance laser sensors OD200 – SICK

Name: Distance laser sensors OD200 SICK
Brand: SICK

The distance laser sensors OD200 from SICK delivers precise micrometer-range distance measurements—even on challenging surfaces like structured composites or shiny metals—without the need for a separate amplifier. Its compact housing, wide measuring range, and intelligent signal processing make it ideal for tight spaces and tough environments.

Designed for flexibility across various applications, the OD200 from SICK is easy to integrate and configure thanks to its plug-and-play setup and smart factory settings, making it a powerful, stand-alone solution for boosting productivity.

more details

Downloads

Request Offer

Features

Repeatability: 2 µm - 20 µm;
Linearity: ± 10 µm - 100 µm;
Measuring frequency: up to 3 kHz;

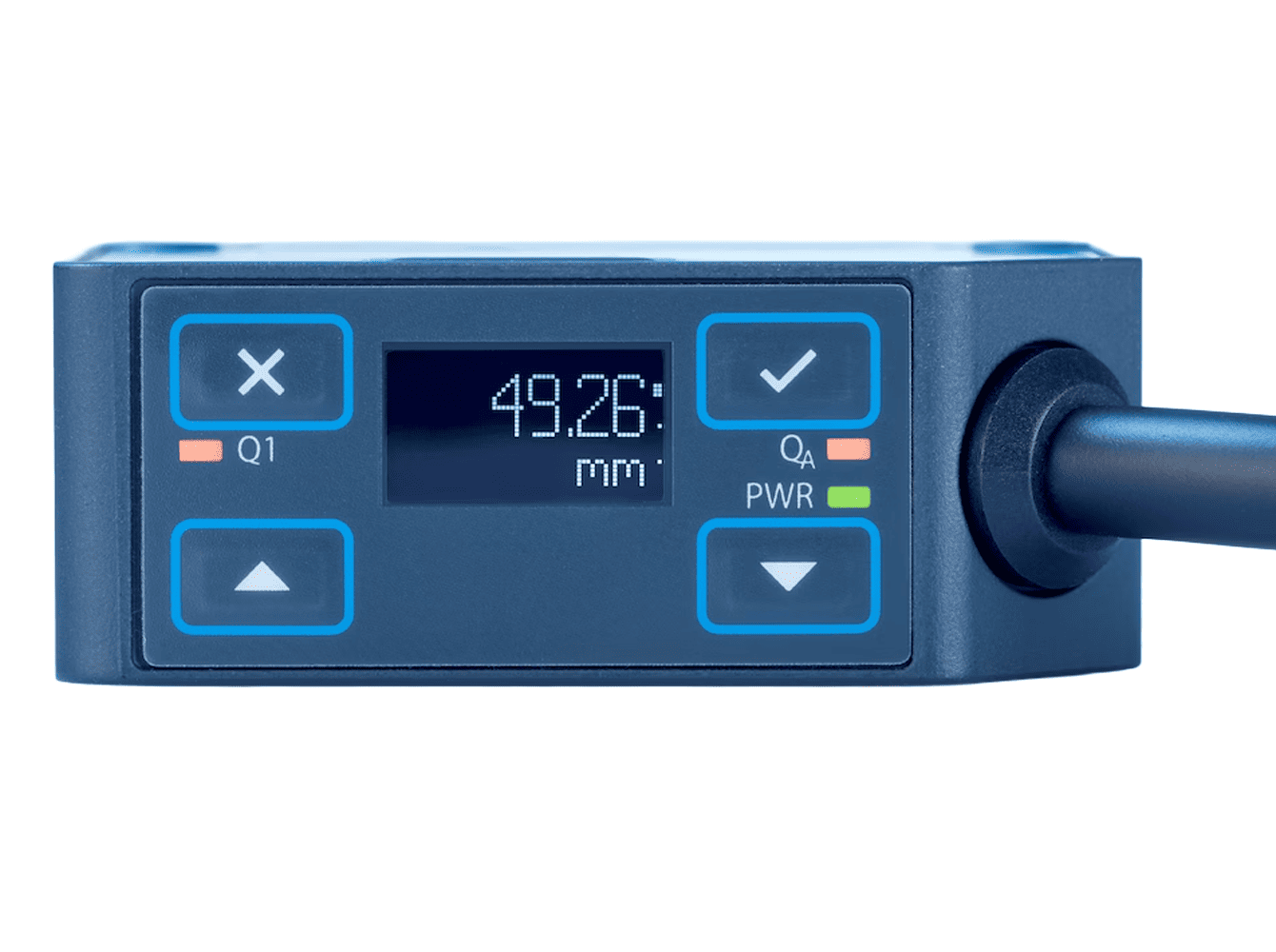

Intuitive configuration via OLED display, IO-Link, and SOPAS ET;
Measuring ranges from 25 mm to 160 mm;
Laser class 1;
Analogue and digital output with IO-Link interface;
Robust miniature housing.

Advantages

Consistent high-quality measurements – regardless of the target;
Reliable measurement on structured, deep black, and glossy surfaces thanks to a high-performance optical system and improved signal processing;
High measurement frequency designed for applications needing speed;
Smart factory settings and intuitive interfaces allow for easy configuration and integration;
Particularly economical to use thanks to the high performance and comparatively low acquisition costs;
Reliable performance in challenging ambient lighting;
Fast IO-Link integration with SOPAS software.
