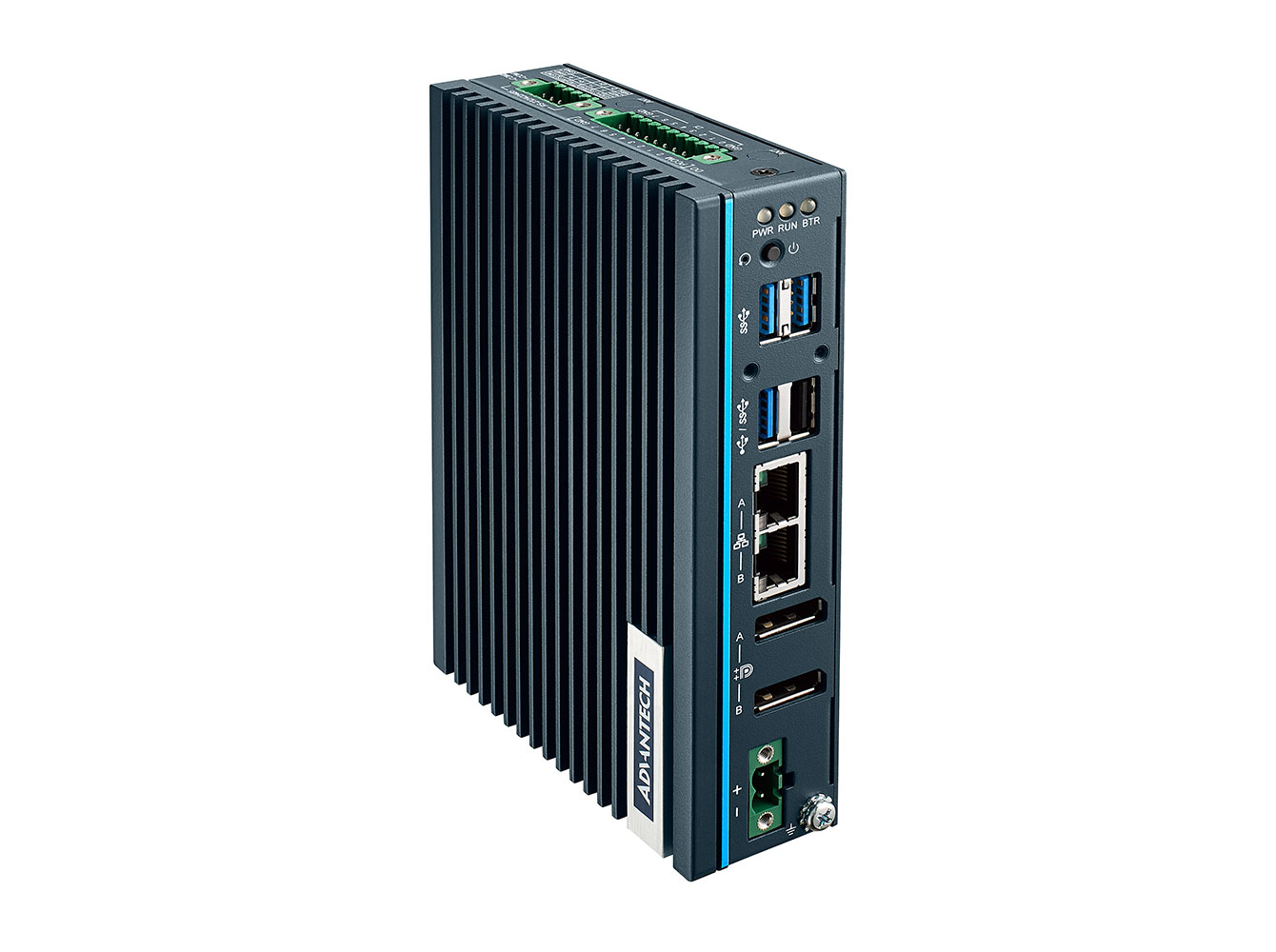

Industrial compact and fanless computer UNO-137 - Advantech

Advantech’s UNO-100 series are DIN-rail integrated controller that feature a modular design for flexible configuration according to specific usage requirements.
UNO-137 from Advantech is equipped with an Intel® Atom® E3940 processor (1.6 GHz), 8 GB DDR3L RAM, and wide operating temperature range (-40 ~ 70 °C/-40 ~ 158 °F), as well as 2 x LAN, 2 x COM, 3 x USB 3.0, 1 x USB 2.0, 8 x DI, 8 x DO, and 2 x DP 1.2 .
more details
Request Offer
The controller also supports 1 x full-size mini PCIe, 1 x M.2 (B-key), and 1 x nano SIM card slot for convenient expansion to satisfy diverse industrial applications. Compliant with IEC 61010-1 safety requirements for industrial use, UNO-137 can be equipped with an optional second-stack extension kit that supports Advantech’s iDoor technology for integrating additional industrial Fieldbus, wireless communication, I/O, and peripheral modules.

  • Intel® Atom® E3940 processor (1.6 GHz) with 8GB DDR3L memory;
  • Wide operating temperature range (-40~70°C/ -40~158°F);
  • Port isolation for 8 x DI, 8 x DO, 2 x COM.
  • The Din-Rail edge controller, UNO-137, is designed to provide rapid configurable design for edge computing and machine intelligence applications;
  • Modular design for optional 1 x iDoor expansion, that allows the customer to add extra I/Os, WiFi, 4G, etc…;
  • Microsoft Azure IoT Edge and Amazon AWS IoT Greengrass certified allowing the customer to use the UNO-137 as a gateway to send data to the Cloud.
  • Any type of industry that can use a PC as a controller to monitor the factory or to control a specific machine;
  • Any type of process that requires HMI interaction in kiosks, sales, public services, advertising, among others.

F.Fonseca is the representative of Advantech in Portugal.
