Universal Dimmer DIM02SA/500U - Qbus

The DIM02SA/500U can dim up to 2 circuits of each 10-500VA and can handle halogen spots, electronic & magnetic transfo's, incandescent lamps, dimmable CFL's and 230V LEDs. The Universal Dimmer DIM02SA/500U from Qbus has an internal protection against short circuits, overload and overheating and has a built-in CRC-filter. This module can also be used Stand-Alone (without Qbus Controller) as it contains 3 inputs to connect standard pushbuttons (including All Off and Panic button).

The DIM02SA/500U module also has 3 potential-free inputs to connect standard push buttons. Input 1 to 2 control respectively output 1 to 2, input 3 (A) is a scene input which executes an ALL-OFF-scene when pushing for 0,7 seconds (and then releasing the button), or a panic-scene (all outputs on) when pushing the button for 3 seconds. The inputs are set standard in push button mode. When the module is connected to a controller, the input mode of the DIM02SA/500U can be changed to Normal Open, Normal Closed or toggle.

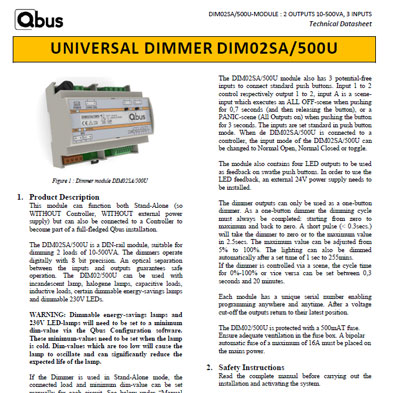

more details
Request Offer
The dimmer outputs can only be used as a one-button dimmer. As a one-button dimmer the dimming cycle must always be completed: starting from zero to maximum and back to zero. A short pulse (< 0,3 sec.) will take the dimmer to zero or to the maximum value in 2,5 sec.

General specifications :
  • Power supply: 230Vac +-10%, 50Hz – maximum protection 16A/2P;
  • This device is exclusively suitable for DIN-rail mounting EN50022;
  • Insulation voltage: 3 kVac tested;
  • Characteristic consumption: 4.5VA.

Ambient temperature:
  • Working temp. range: 10°C to 70°C;
  • Storage temp. range: -10°C to 70°C;
  • Maximum humidity: 93%, no moisture condensation.
Bus load:
  • 10mA at nominal 13,8V;

  • 500mAT single-phase.

Max installation altitude:
  • 2000meters.
  • Modules equipped with internal power supply;
  • Pushbuttons on the module for manual operation;
  • Inputs for connection of standard pushbuttons without needing external power supply;
  • No programming or configuration required;
  • Connectors for connection of the Qbus home Automation system (complete system).
  • Electrical installers;
  • Construction companies;
  • Electrical design offices.
