Absolute encoder ANS/ANM58 - SICK

The ANS/ANM58 is a 58 mm high-resolution absolute encoder a powerful PROFINET interface and IRT function.

With numerous shaft and flange types, as well as axial and radial connection options, it integrates seamlessly into a wide range of applications. Its precise optical single-turn measuring system combined with a mechanical multiturn stage delivers reliable data for movement monitoring and process control.

more details

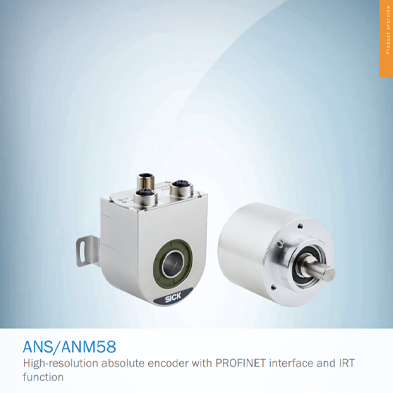

Downloads

Request Offer

The encoder also provides a lot of diagnostic data for condition-based system maintenance. Thanks to the PROFINET interface with Encoder Profile V4.2, processes can run synchronously via the IRT (Isochronous Real Time) function, boosting productivity. And, with an installation depth of only 39 mm in the radial version, it is ideal for tight installation spaces.

Features

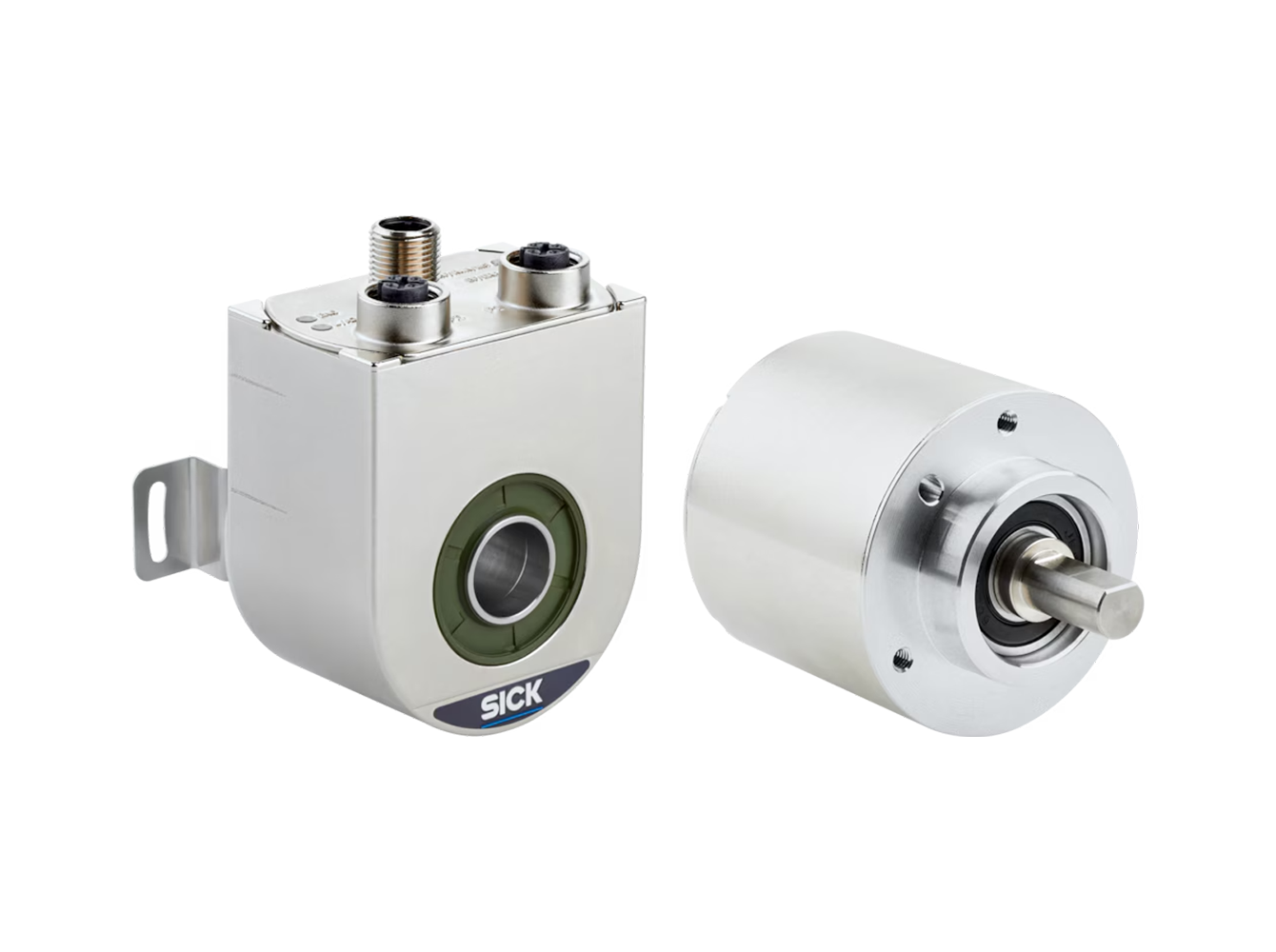

Radial and axial types with shaft and flange variants;
Low installation depth of only 39 mm;
PROFINET interface with Encoder Profile V 4.2;
Parameterization via TIA Portal or SICK Engineering Tool;
Diagnostic data configuration and visualization via SICK Engineering Tool;
Precise 18-bit optical measuring system and mechanical 16-bit multiturn stage.

Advantages

One encoder with many possibilities: customizable to suit a wide range of industrial requirements, with options for axial/radial connections, solid shafts, blind hollow shafts, through hollow shafts, and various flanges;
For tight installation spaces: the radial version’s installation depth of only 39 mm makes it ideal for compact setups;
Wide range of applications: its compact design and multiple variants allow adaptation to many specific requirements;
Reduces integration costs: numerous configuration options enable quick and simple integration across systems;
High-performance communication interface: built on the PROFINET standard, with Encoder Profile V4.2 supporting IRT for precise, timestamped measurements;
Easy integration: numerous configuration options enable quick and simple integration across systems;
The encoder can be easily integrated into an existing network using engineering tools such as the popular TIA portal;
Easy to monitor: Provides real-time data on cycle times, speeds, and temperatures to prevent unplanned downtime;

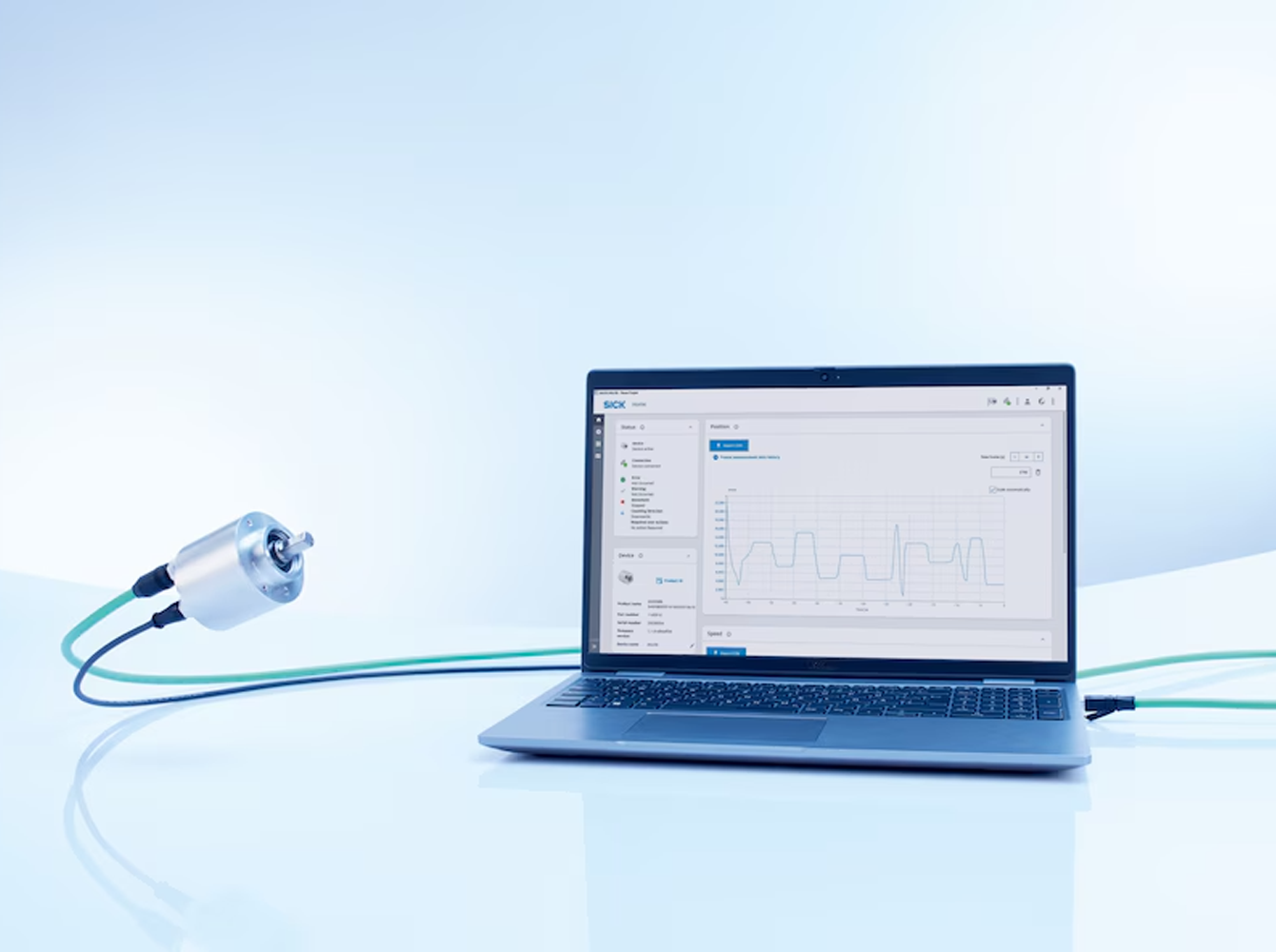

Intuitive configuration: web-based configuration and graphical visualization make setup and diagnostics simple;
Increases productivity: high data throughput and short cycle times ensure process precision and efficient maintenance;
High process quality: innovative optical scanning with an Opto-ASIC delivers 18-bit resolution single-turn data, while the mechanical gear-based multiturn ensures reliable revolution counting.

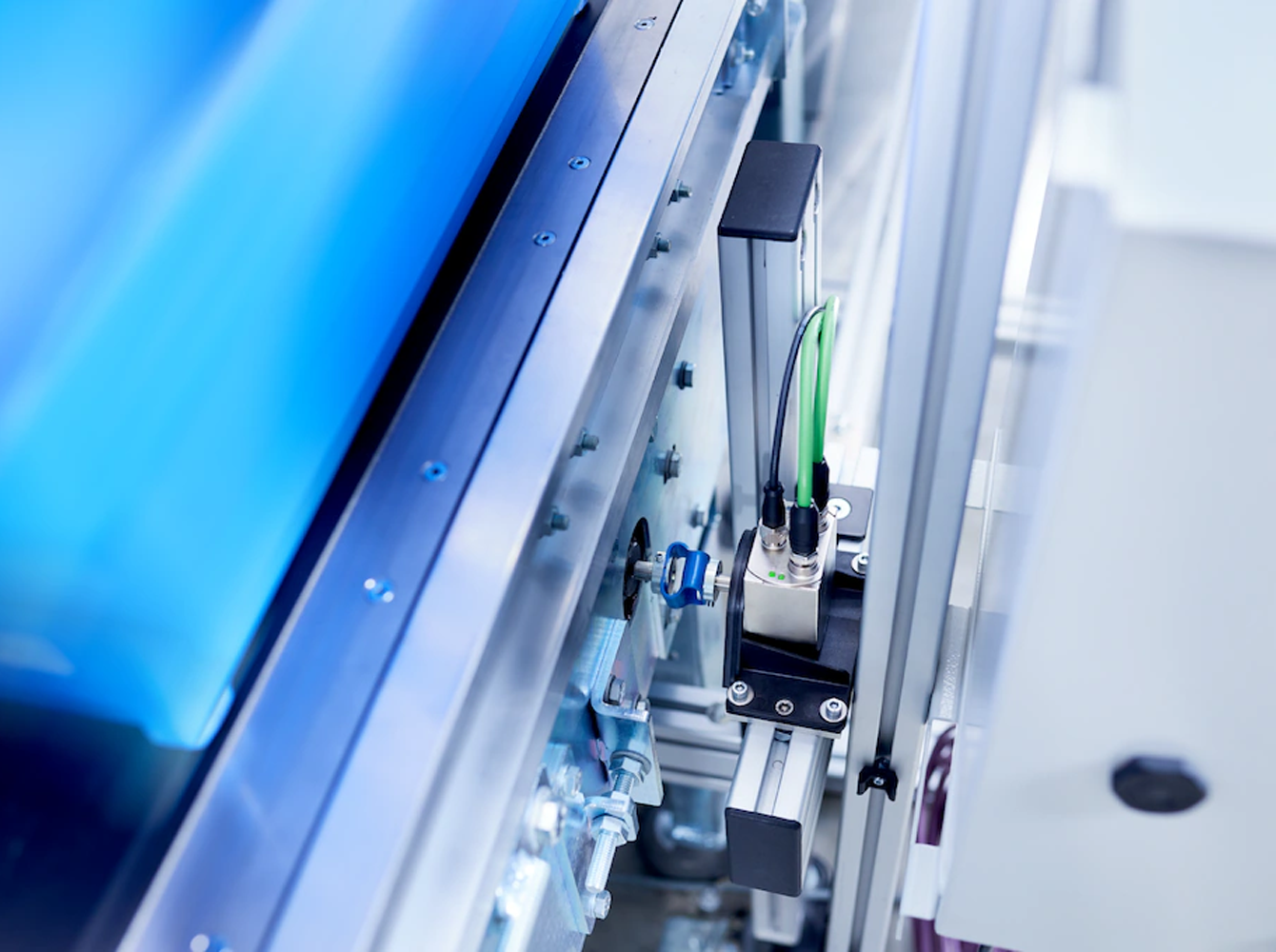

Applicability

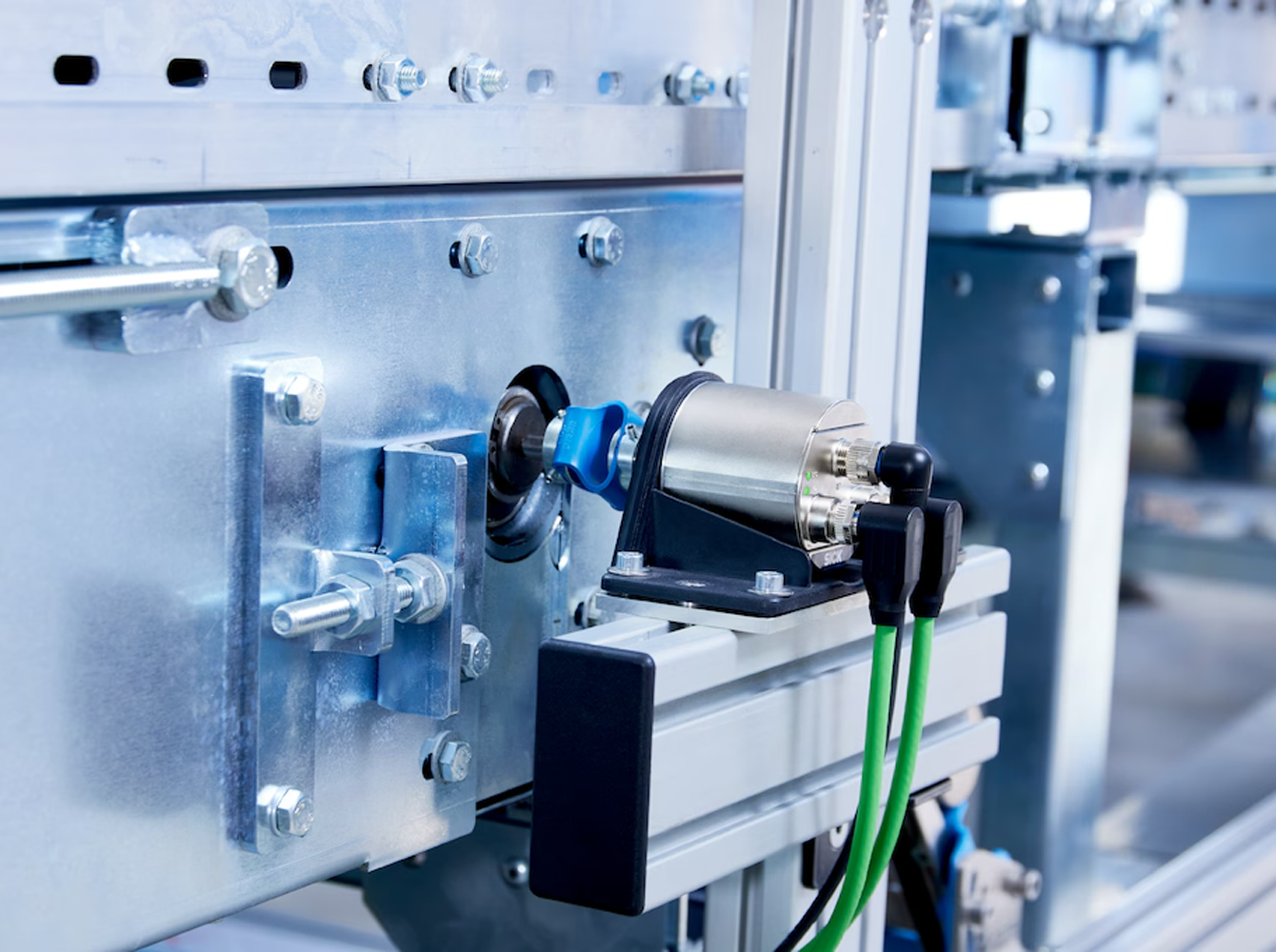

Packaging technology: Position and speed monitoring for process synchronization;
Mechanical engineering: Repeatable measurement for precise machine and system control;
Storage and conveyor systems: Speed and position measurement for efficient warehouse automation.
