Industrial Automation
Absolute non-contact encoders MAS – SICK

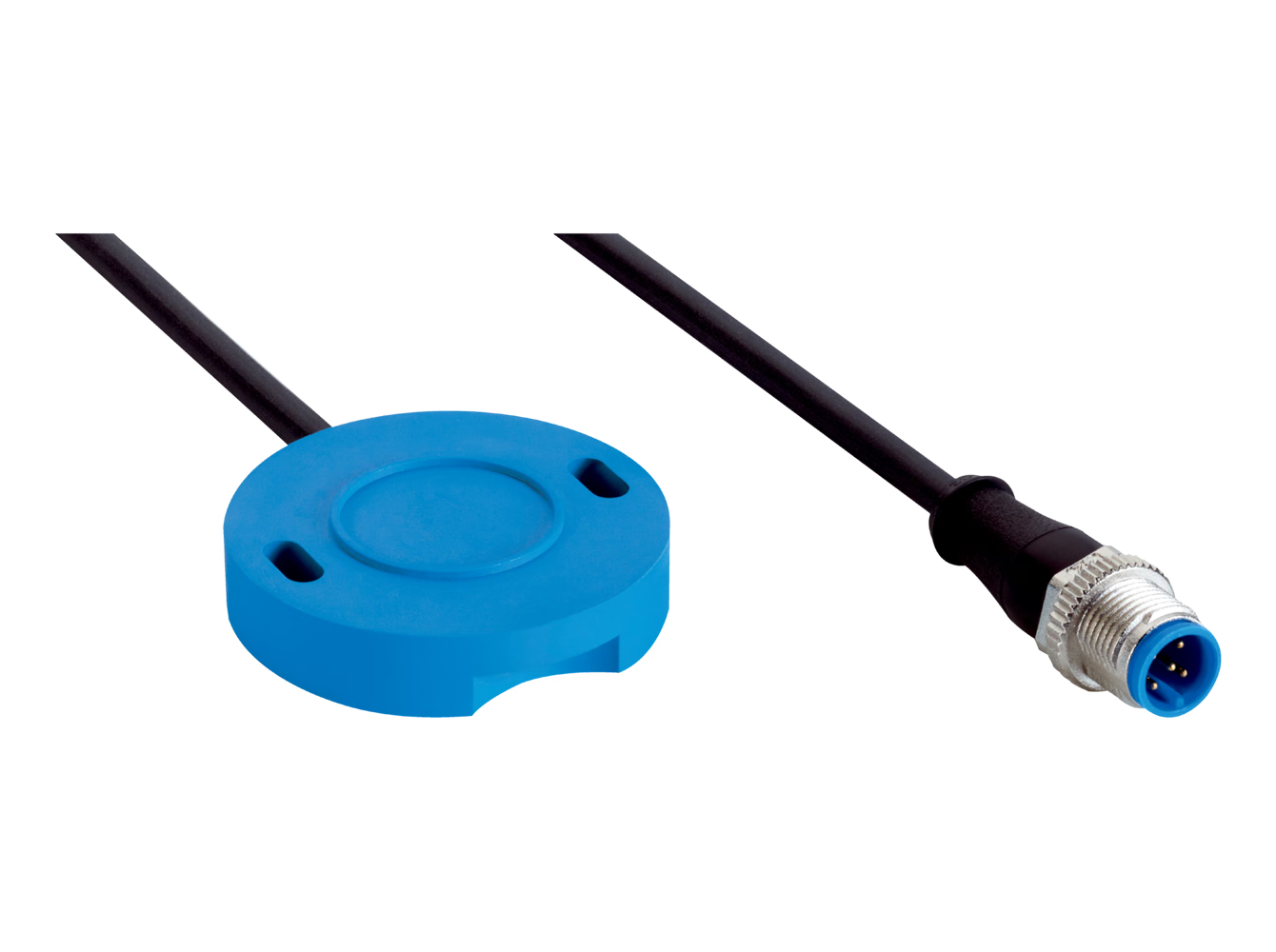

The MAS absolute encoders from SICK are magnetic angle sensors especially designed to be an economical solution for non-contact angle measurement and position detection. Its space-saving, two-part design consisting of a magnet and a sensor ensures high flexibility in use. The MAS measurement principle is based on the Hall effect and enables non-contact and wear-free angle detection. This prevents faults and minimizes service work. Thanks to IO-Link, the sensor is easy to configure and can be monitored proactively via diagnostic data.
more details
Downloads
Request Offer
Features
Advantages
Applications
F.Fonseca is the representative of SICK in Portugal.
- Angle measuring range: 0º - 360º;
- 12-bit resolution (corresponds to 0.09°);
- Allows the definition of up to 32 angle windows;
- Enclosure rating: IP67 and IP68;
- Operating temperature -40ºC - +80ºC;
- IO-Link 1.1 and up to 3 digital outputs;
- Zero point setting via IO-Link or cable;
- Comprehensive process data and intelligent diagnostic functions.
Advantages
- Wide range of applications thanks to the two-part structure and a particularly flat and space-saving design;
- Fault-free operation thanks to large alignment tolerance and a magnet positioning aid;
- Low maintenance requirements thanks to the wear-free principle of operation and rugged sensor design;
- High cost efficiency thanks to long service life and minimal service requirements;
- Convenient handling and very easy integration via IO-Link 1.1.
Applications
- Checking the position of the dancer's arm in web processing;
- Detection of the position of parking barriers and barriers on Autobahn toll stations;
- Machine tools: Detecting the position of the camshaft on the tool changer.
F.Fonseca is the representative of SICK in Portugal.
