Encoder de segurança AFS/AFM60S Pro - SICK

Name: Encoder de segurança AFS/AFM60S Pro - SICK
Brand: SICK

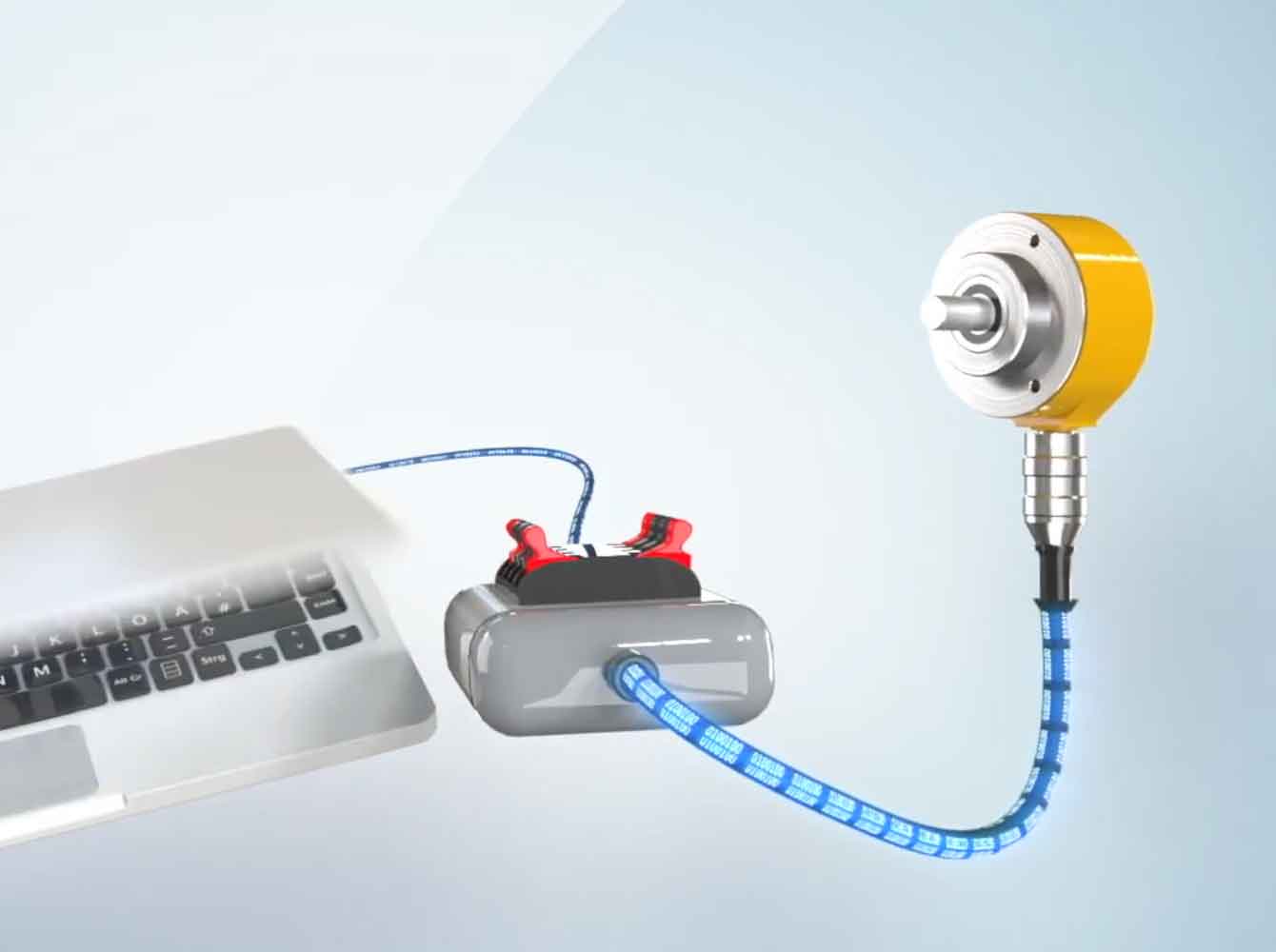

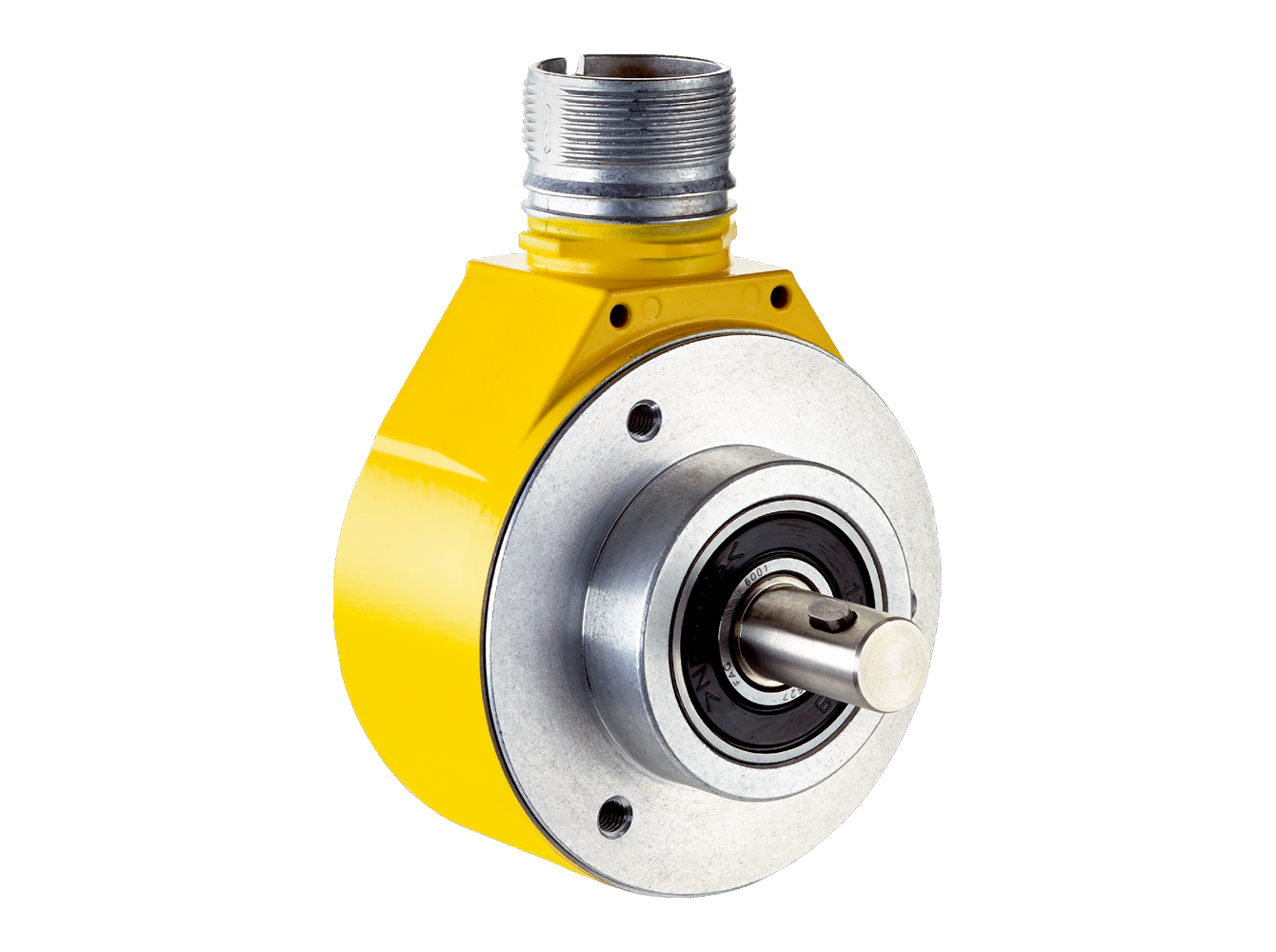

The AFS/AFM60S Pro from SICK is an absolute encoder for functional safety. It meets the very stringent test criteria according to IEC 61800-5-3 and is a certified safety product up to SIL3/PL e. The absolute encoder supports the safety functions in accordance with IEC 61800-5-2 and impresses in particular with its safe positioning function. Thanks to the high enclosure rating and large temperature range, the AFS/AFM60S Pro from SICK can be used in harsh environments. With its SSI and sin/cos interface, it can be easily integrated into a range of different controls. In doing so, singleturn resolution, counting direction, and other parameters can be adapted individually. The integrated error memory detects important ambient data, which provides support during installation and maintenance.

more details

Downloads

Request Offer

Features

Certified up to SIL3 (IEC 61508, IEC 61800- 5-3), PL e (EN ISO 13849);
Single- or multiturn encoder with SSI and sin/cos interface;
Programmable, integrated error memory;
Solid or hollow shaft encoder, mounting with key;

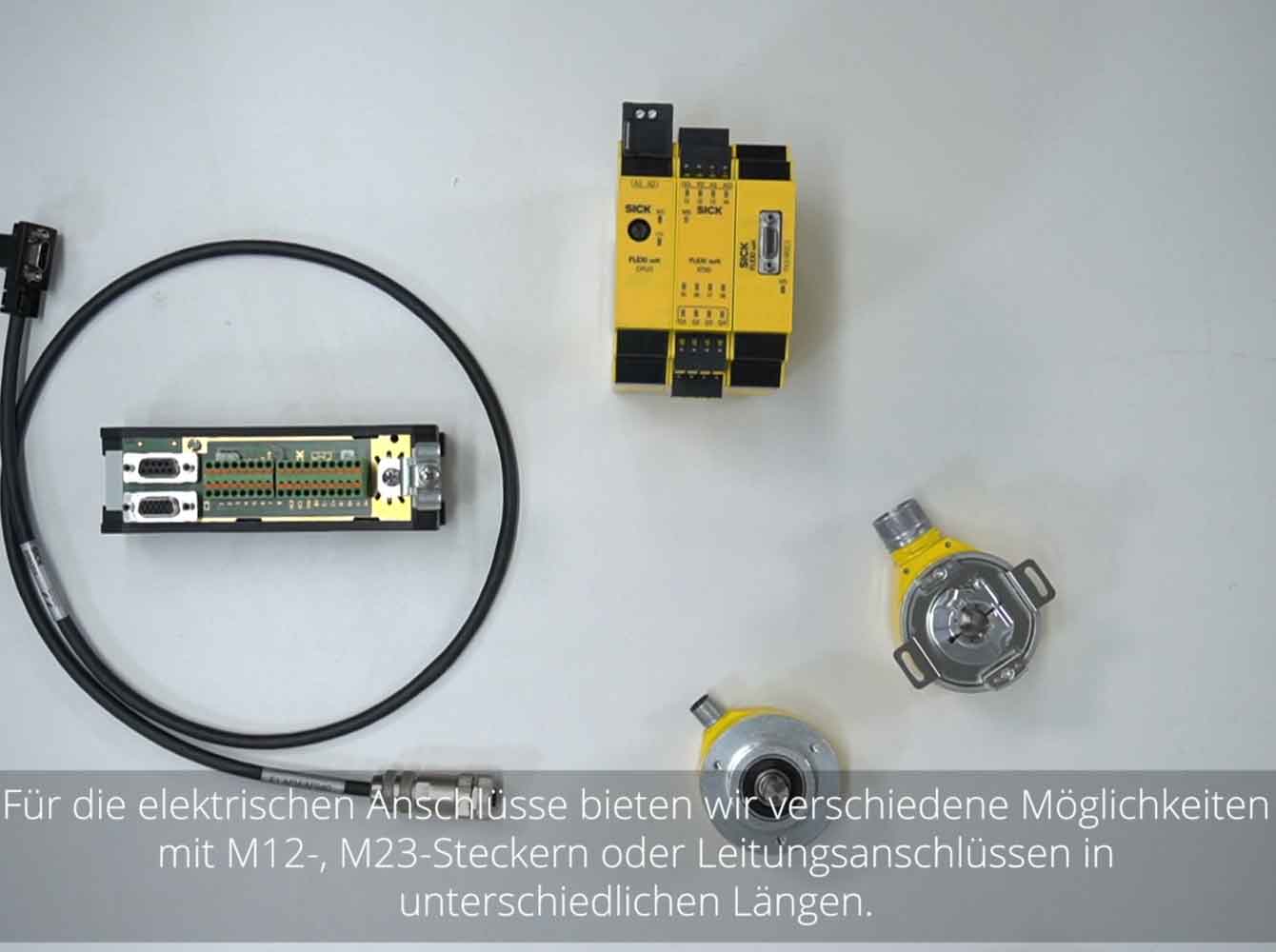

Cable connection, M23 or M12 male conector;
Operating temperature range: −30ºC... +95ºC.

Advantages

Certified safety product that ensures the best possible protection for persons, machinery, and systems;
Easy handling of safety functions with complete solutions from SICK: Safe positioning with the AFS/AFM60S Pro and the FX3-MOC1 motion control module of the Flexi Soft safety controller;
Positive and non-positive connections for mechanical reliability;
Safety into the future: Meets the safety requirements on encoders (SR) in accordance with IEC 61800-5-3;
Different configuration and connection options for high levels of flexibility and straightforward implementation;
Suitable for applications with small installation spaces.

Applications

Measurement of position, speed, and direction of rotation in various industries in which everything depends on safe position and movement monitoring: Mobile automation, mechanical construction, wind energy, storage and conveyors.

F.Fonseca is the representative of SICK in Portugal.
