Industrial Automation

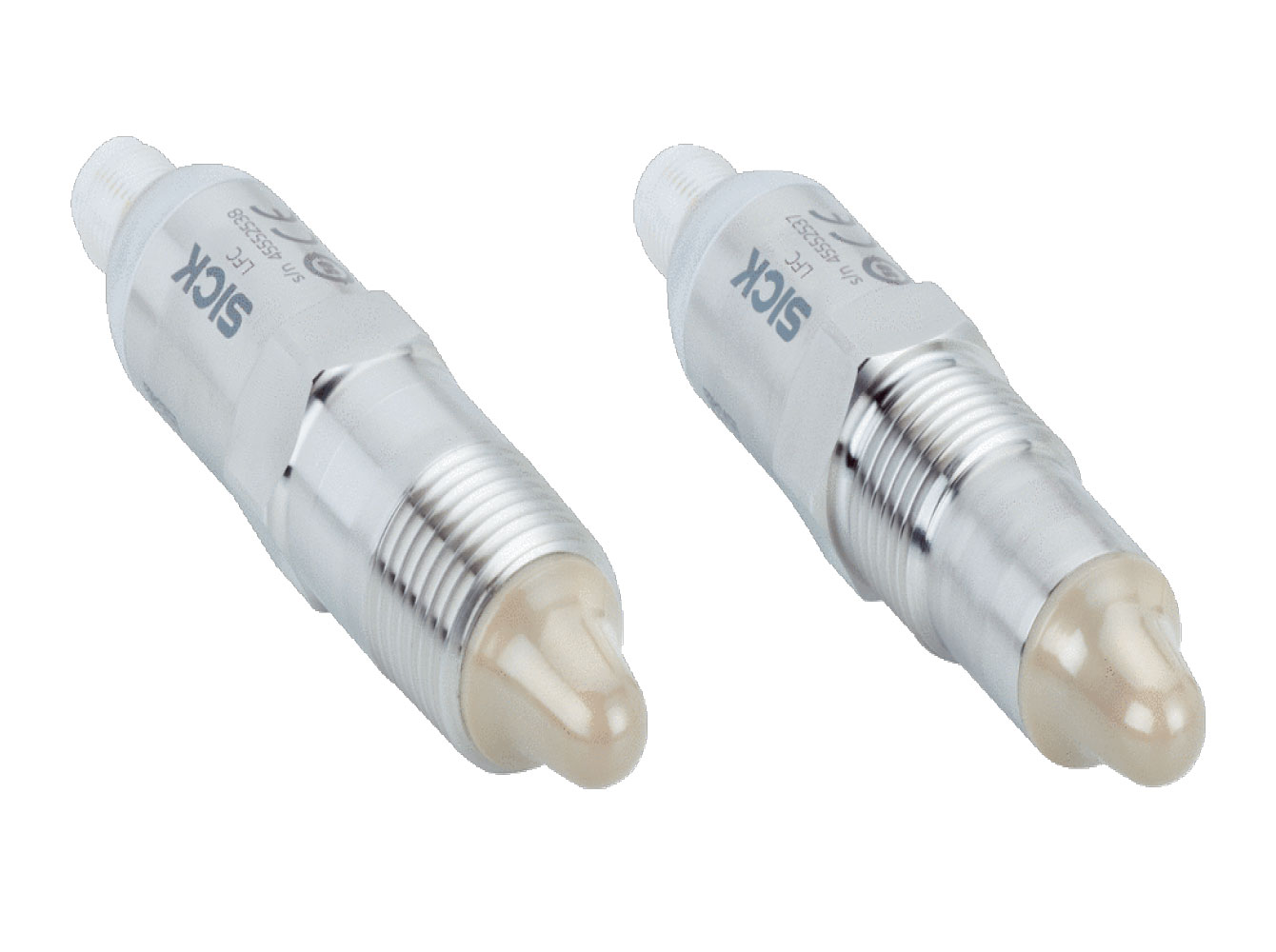

Level sensors LFC - SICK
The LFC capacitive level from SICK switch is a flexible, simple and cost-effective solution for point level measurement in fluid media.
When measuring containers or for dry-run protection in piping, the LFC from SICK features particularly high performance. The level switch is easy to install and is characterized by a compact design and long service life. It is also very easy to clean. The sensor can be parameterized for almost any media by means of IO-Link. Its EHEDG and 3-A certified hygienic design and the option of using it at process temperatures up to +135 °C also make it very suitable for CIP and SIP applications. The LFC can easily display or blank foam and deposits.
When measuring containers or for dry-run protection in piping, the LFC from SICK features particularly high performance. The level switch is easy to install and is characterized by a compact design and long service life. It is also very easy to clean. The sensor can be parameterized for almost any media by means of IO-Link. Its EHEDG and 3-A certified hygienic design and the option of using it at process temperatures up to +135 °C also make it very suitable for CIP and SIP applications. The LFC can easily display or blank foam and deposits.
more details

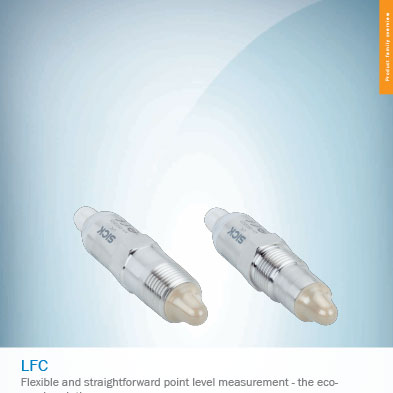

Downloads
Request Offer
Features
Advantages
Applications
F.Fonseca is the representative of SICK in Portugal.
- Capacitive level switch based on electrical impedance spectroscopy;
- Plug and play: preset to watery media;
- Process temperature: −20 °C ... +100 °C (+135 °C for 1 h);
- Process pressure: −1 bar ... +25 bar;
- Two digital PNP outputs with IO-Link 1.1;
- Enclosure ratings IP66, IP67 and IP69;
- Ideal for hygienic applications (easy to clean, EHEDG, 3A, EG1935/2004, FDA, CIP- and SIP-capable, hygienic adapter available).
Advantages
- Maintenance-free point level measurement saves time and money;
- Quick, easy and cost-effective installation;
- Short cleaning cycles thanks to easy-to-clean sensor design;
- Optimal hygienic design minimizes the contamination risk;
- Easy plug and play sensor for quick commissioning;
- Ideal price-performance ratio: High accuracy at an attractive price.
Applications
- Empty detection and dry-run protection in piping;
- Overfill protection and empty detection in tanks and totes;
- Simple capacitive level switch for the food industry.
F.Fonseca is the representative of SICK in Portugal.
