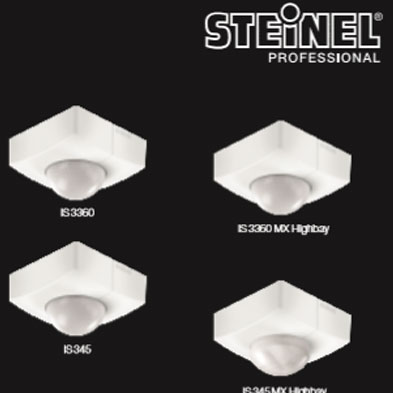

Motion detector IS 3360 MX Highbay – STEINEL
A head for heights. Powerful reach. Reliable.
IS 3360 MX Highbay motion detector – ideal for high ceilings in industrial buildings or commercial properties. For mounting heights of up to 14 m. High-precision 360° infrared sensor. Maximum reach: 18 m. For watching over up to 1000 sq.m. Available as square surface-mounted and concealed version.
IS 3360 MX Highbay motion detector – ideal for high ceilings in industrial buildings or commercial properties. For mounting heights of up to 14 m. High-precision 360° infrared sensor. Maximum reach: 18 m. For watching over up to 1000 sq.m. Available as square surface-mounted and concealed version.
more details
Downloads
Request Offer
The ceilings are generally quite high in industrial halls and business premises. Good to know then that even high ceilings do not present a problem to the IS 3360 MX Highbay. The long-reach motion detector has an extra-large detection zone and remains absolutely alert even when it is installed at a height of up to 14 metres. The IS 3360 MX Highbay is highly reliable.
Features
Surface mounted/square (65 x 95 x 95 mm)
COM1 033569
PF 033583
DALI 010577
KNX 011642
LiveLink 009724
Concealed/square (78 x 94 x 94 mm)
COM1 033576
PF 033590
DALI 033613
KNX 033613
Power supply, COM1 / PF / DALI 220 – 240 V, 50 / 60 Hz
Sensor type passive infrared
Installation indoors/ceiling
Recommended installation height 4.00 - 14.00 m
Output, COM1 max. 2000 W
Output PF no SELV, max. 10 A, 240 V AC / 24 V DC, min. 100 mA, 12 V AC/DC
Output, DALI 1x 2-conductor DALI control line /broadcast for 30 electronic ballasts
Angle of coverage 360° with 180° angle of aperture
Reach max. 18 m tangential
Sensor system 11 detection levels, 1416 switching zones
Twilight setting 2 – 1000 lx
Teach function for twilight setting Yes
Time setting COM1 / PF 5 sec - 15 min, pulse mode (approx. 2 sec)
Manual override selectable, 4 h
IP rating concealed installation/ surface-mounted installation IP20/IP54
Advantages
Industries
F.Fonseca is the representative of STEINEL in Portugal.
Features
Surface mounted/square (65 x 95 x 95 mm)
COM1 033569
PF 033583
DALI 010577
KNX 011642
LiveLink 009724
Concealed/square (78 x 94 x 94 mm)
COM1 033576
PF 033590
DALI 033613
KNX 033613
Power supply, COM1 / PF / DALI 220 – 240 V, 50 / 60 Hz
Sensor type passive infrared
Installation indoors/ceiling
Recommended installation height 4.00 - 14.00 m
Output, COM1 max. 2000 W
Output PF no SELV, max. 10 A, 240 V AC / 24 V DC, min. 100 mA, 12 V AC/DC
Output, DALI 1x 2-conductor DALI control line /broadcast for 30 electronic ballasts
Angle of coverage 360° with 180° angle of aperture
Reach max. 18 m tangential
Sensor system 11 detection levels, 1416 switching zones
Twilight setting 2 – 1000 lx
Teach function for twilight setting Yes
Time setting COM1 / PF 5 sec - 15 min, pulse mode (approx. 2 sec)
Manual override selectable, 4 h
IP rating concealed installation/ surface-mounted installation IP20/IP54
Advantages
- 5 years warranty;
- All interfaces: relay; potential free; KNX; DALI; LiveLink;
- Programming via remote control or via Smart Remote.
Industries
- Industrial buildings;
- Commercial properties.
F.Fonseca is the representative of STEINEL in Portugal.
