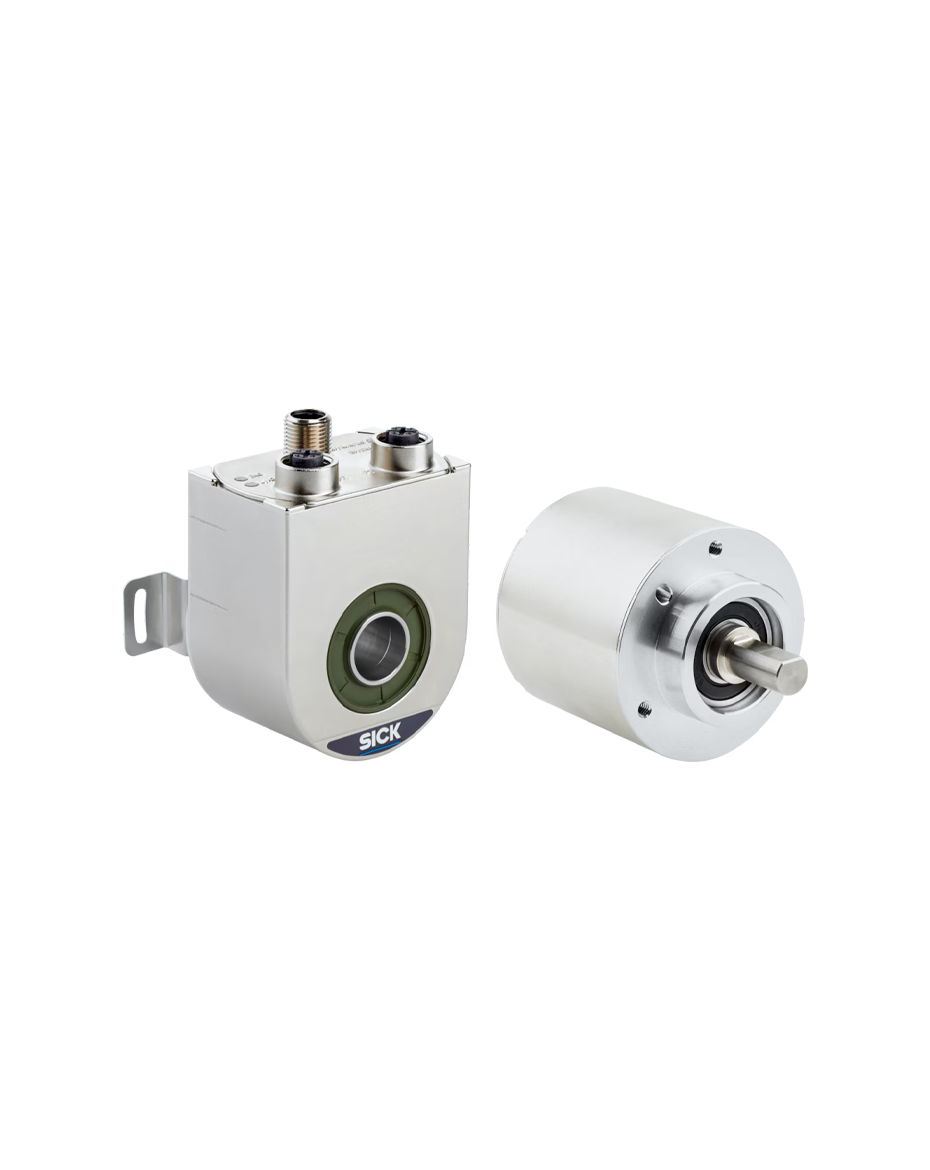

Absolute encoder AHS/AHM36 IO-Link - SICK
The AHS/AHM36 IO-Link absolute encoders set standards in mechanical adaptation, electrical connectivity and IO-Link communication. With their rotatable male connector or cable connection as well as the various mounting hole patterns and adapter flanges, these encoders are suitable for nearly any application.
The IO-Link interface enables economical encoder integration into Ethernet and fieldbus networks. The configuration of the encoder can be adjusted individually via the SOPAS engineering tool from Sick or the IO-Link master. The rugged, reliable, fully magnetic sensor system provides a maximum resolution of 12 bits for the singleturn variant and maximum 24 bits for the multiturn variant.
The IO-Link interface enables economical encoder integration into Ethernet and fieldbus networks. The configuration of the encoder can be adjusted individually via the SOPAS engineering tool from Sick or the IO-Link master. The rugged, reliable, fully magnetic sensor system provides a maximum resolution of 12 bits for the singleturn variant and maximum 24 bits for the multiturn variant.
Absolute encoder AHS/AHM36 SSI - SICK
The AHS/AHM36 SSI absolute encoder product family provides increased flexibility due to its mechanical adaptation, electrical connectivity, and SSI communication. With their rotatable connector or cable outlets as well as the various mounting hole patterns and adapter flanges, these encoders are suitable for nearly any application.
Absolute encoders AFS/AFM60 - SICK
With a high resolution of 18 bits (AFS60 Inox) or 30 bits (AFM60 Inox) and a large selection of programmable parameters, the AFS60 Inox absolute singleturn encoder and the AFM60 Inox absolute multiturn encoder set new standards when it comes to stainless-steel encoders.
The high resolution, the high IP enclosure rating, and the stainless-steel housing enable use in applications under harsh ambient conditions. The encoders are equipped with the SSI interface while the AFM60 Inox is also available with the SSI + Incremental and SSI + Sin/Cos combined interfaces. Both encoders can be programmed using the PC-based programming device PGT-08-S or the hand-held programming device PGT-10-Pro.
The high resolution, the high IP enclosure rating, and the stainless-steel housing enable use in applications under harsh ambient conditions. The encoders are equipped with the SSI interface while the AFM60 Inox is also available with the SSI + Incremental and SSI + Sin/Cos combined interfaces. Both encoders can be programmed using the PC-based programming device PGT-08-S or the hand-held programming device PGT-10-Pro.
Absolute encoders AFS/AFM60 EtherNet/IP - SICK
The AFS60/AFM60 EtherNet/IP absolute encoders from SICK are the first encoders of their kind to feature an active web server as well as to make their function blocks available for fieldbus integration.
Mechanical engineers, integrators, and end customers all benefit from features including simple commissioning, significantly reduced configuration time, and direct, continuous access to the encoder via the machine's HMI user interface. Furthermore, the encoders are equipped with an FTP server for direct firmware updates. The web server configuration option opens up entirely new opportunities for commissioning, service, and maintenance by operating personnel who have different capabilities and levels of interface knowledge.
Mechanical engineers, integrators, and end customers all benefit from features including simple commissioning, significantly reduced configuration time, and direct, continuous access to the encoder via the machine's HMI user interface. Furthermore, the encoders are equipped with an FTP server for direct firmware updates. The web server configuration option opens up entirely new opportunities for commissioning, service, and maintenance by operating personnel who have different capabilities and levels of interface knowledge.
Encoders absolutos AFS/AFM60 Profinet - SICK
Intelligent diagnostic functions and rapid data transfer: High-resolution AFS/AFM60 PROFINET absolute encoders represent high-precision measurement of absolute position and speed in the area of industrial automation.
Comprehensive functions for diagnosing parameters such as temperature or operating time and early error detection increase network reliability. Various configuration options, such as modification of resolution, rotational direction or unit of speed measurement simplify installation and enable customized adjustment to each application. Their compact design makes AFS/AFM60 PROFINET absolute encoders suitable for use in applications with tight space available. Embedded switch technology ensures maximum system and equipment availability and thus contributes to increased productivity.
Comprehensive functions for diagnosing parameters such as temperature or operating time and early error detection increase network reliability. Various configuration options, such as modification of resolution, rotational direction or unit of speed measurement simplify installation and enable customized adjustment to each application. Their compact design makes AFS/AFM60 PROFINET absolute encoders suitable for use in applications with tight space available. Embedded switch technology ensures maximum system and equipment availability and thus contributes to increased productivity.
