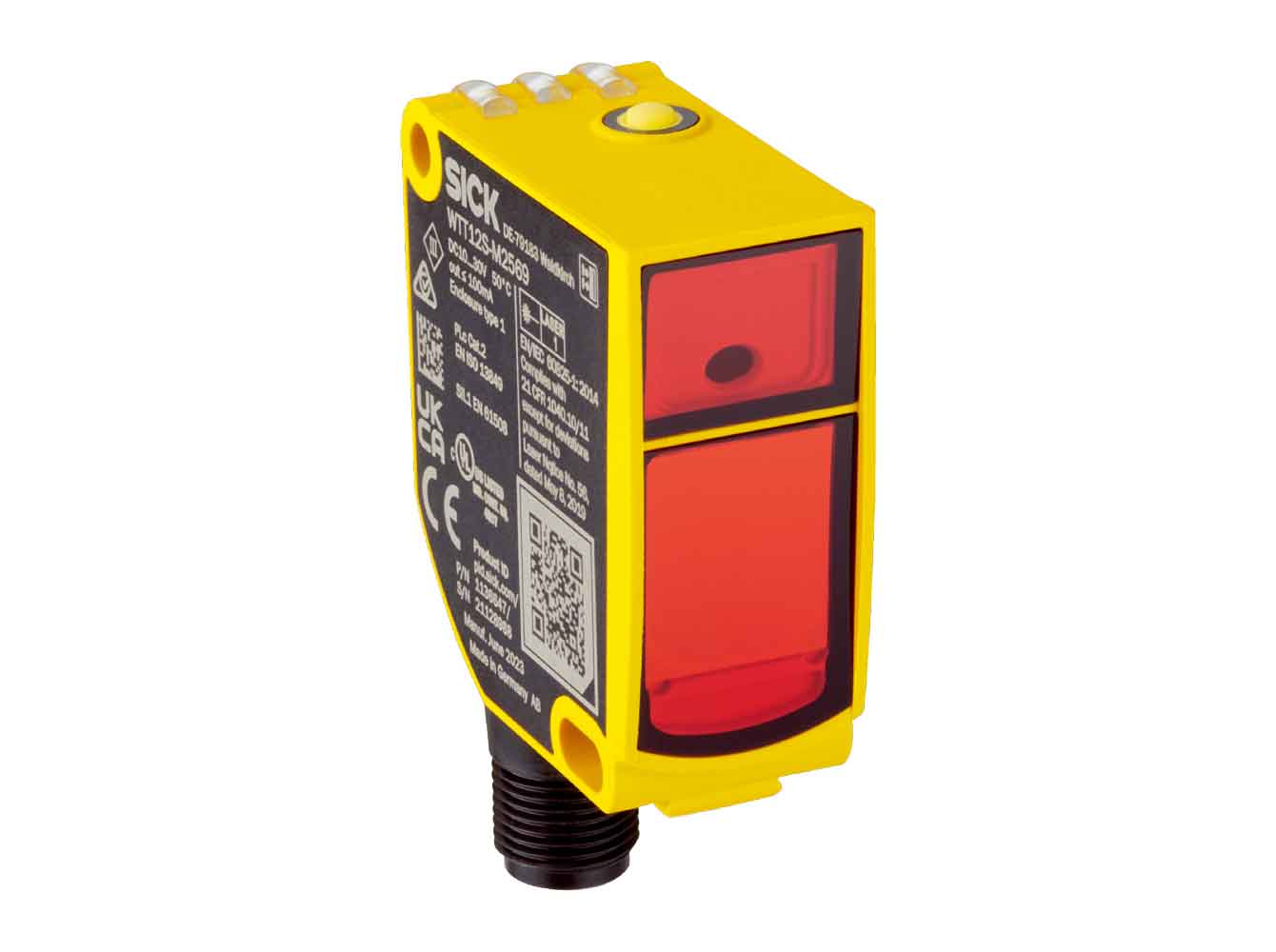

Safety distance sensors WTT12-S - SICK

Name: Safety distance sensors WTT12-S - SICK
Brand: SICK

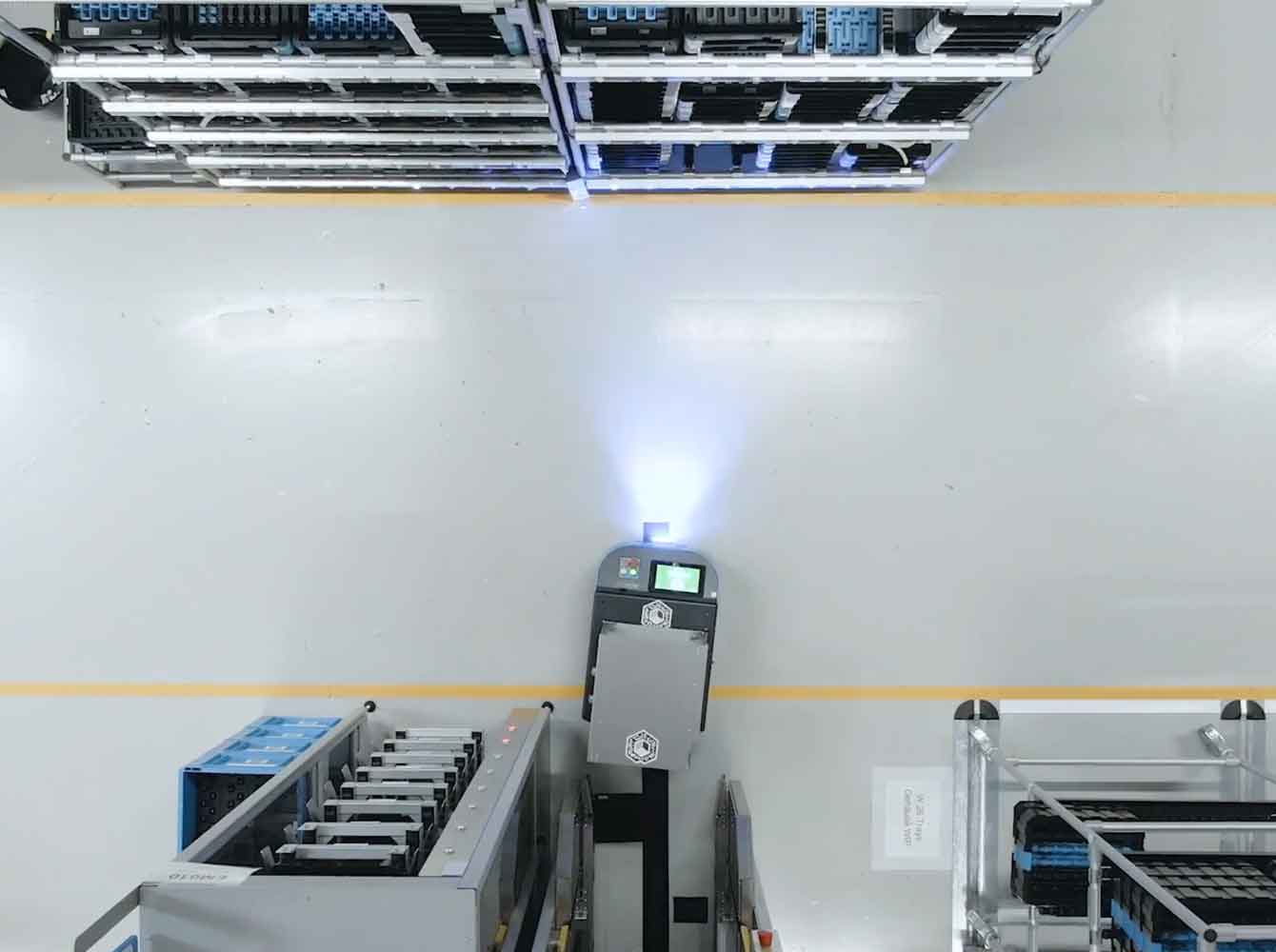

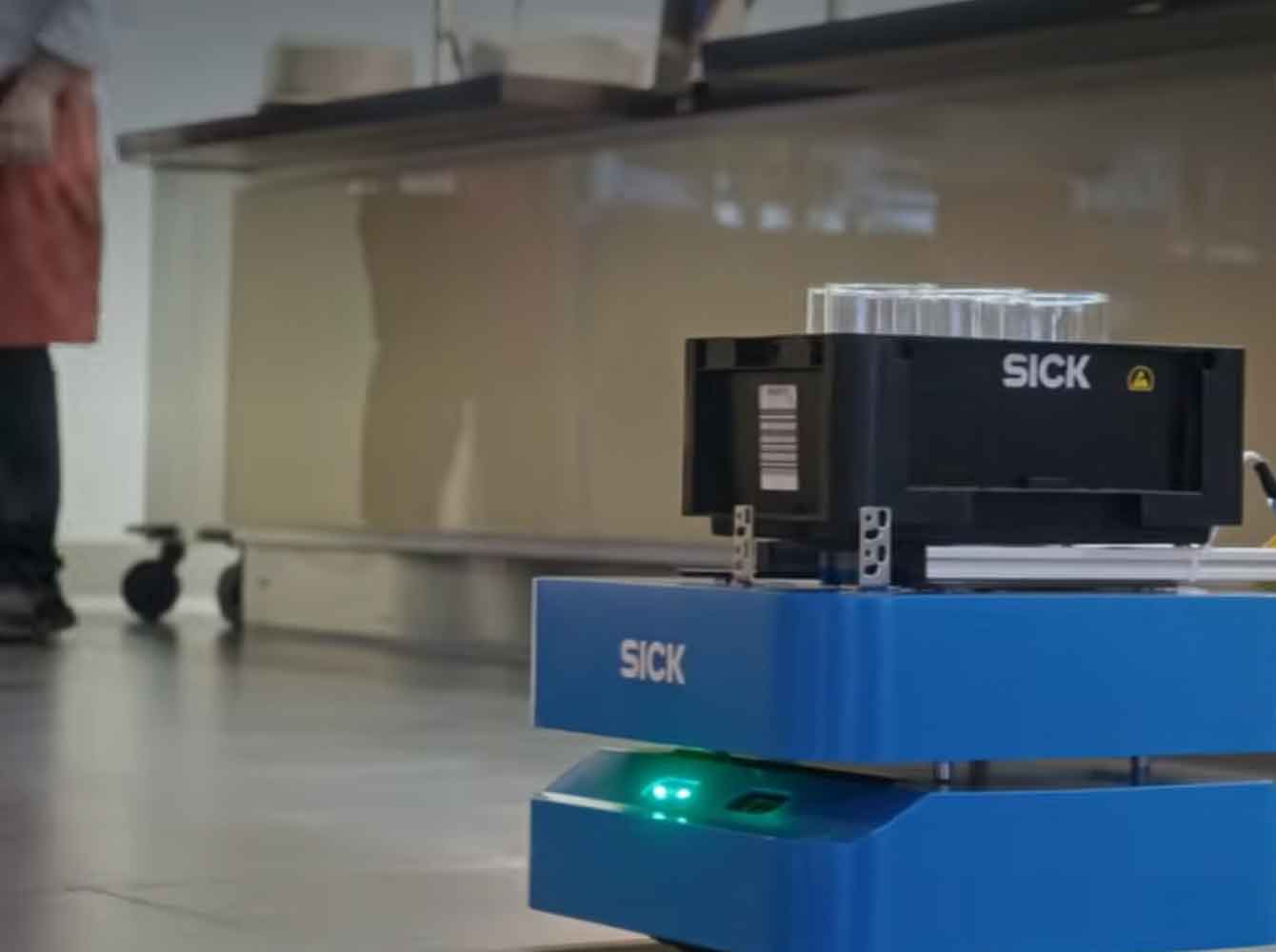

The WTT12-S safety sensor for muting and fall edge detection up to SIL 1 and PL c from SICK is well-suited for simple, reliable detection of objects in mobile and stationary applications. The sensor reliably detects fall edges by means of optical time-of-flight measurement. This is how the WTT12-S allows your automated guided vehicle or service robot to travel safely. The sensor also safely detects incoming machine parts and workpieces thanks to muting. Quick parameterization and standard M12 plug connectors make the WTT12-S from SICK easy to put into operation. And thanks to its rugged housing, the sensor can be used in countless applications, even in harsh environments. This ensures efficient, safe, and productive processes in intralogistics.

more details

Downloads

Request Offer

Features

Safe detection: meets requirements of SIL 1 and PL c;
Long sensing ranges: 150 mm to 2,000 mm;
Color-insensitive sensor with time-of-flight technology;
Pushbutton for quick teach-in of the configuration;
Standard M12 plug connector;
Compact VISTAL® housing in an enclosure rating IP67.

Advantages

Protect people and capital goods thanks to reliable object detection;
Certify your machine without workarounds;
Detect moving objects and fall edges even over long distances;
Master adverse ambient conditions thanks to the rugged housing and ambient light immunity;
Parameterize sensors using a teach-in button and connect them to the safety controller via M12 plug connectors.

Applications
