Fluid sensors

Bulkscan® LMS511 sensor - Sick

Non-contact and maintenance-free measurement of volume flow.
The Bulkscan® LMS511 uses time-of-flight laser technology to provide non-contact volume flow measurements on conveyor belts. No matter what kind of bulk materials are involved or how bad weather conditions are, the multi-echo technology allows the Bulkscan® LMS511 sensor, from Sick, to generate a reliable volume flow signal using the laser's time of flight and the belt speed.

View detail

Capacitive temperature humidity probe - Jumo

The Jumo capacitive humidity probes have been designed for the most common heating, air-conditioning and ventilation applications. They are particularly distinguished by high measurement accuracy, excellent long-term stability and good chemical resistance.

The modern design allows a low cost of installation and offers the greatest possible protection against pollutants and condensation. These factors, in turn, contribute to smooth and trouble-free continuous use.

The CO2 measuring probes use infrared technology, proven to measure the concentration of carbon dioxide. The NDIR procedure has a patented automatic calibration function, eliminates the effects of aging and as a result, allows accurate measurement of CO2 values with long term stability.

View detail

Digital thermostate eTRON T - Jumo

The Jumo eTRON T is a digital electronic thermostat for DIN-rail mounting in a 90 × 22.5 mm format, which can be used for simple temperature control (heating or cooling).

The actual value is displayed on a three-digit LCD display.
Depending on the hardware version RTD temperature probes, thermocouples, or current/voltage standard signals can be connected to the measuring input. The switching status of the 10 A changeover relay is indicated by an LED. Three keys on the front are used for operation. A configurable operating level enables quick access to important parameters.

The electrical connection occurs via screw terminals. A setup program and a PC interface are available as accessories for easy configuration and parameterization on the PC.

View detail

Electronic pressure sensor PAC50 - Sick

Turns pressure into colors.
For improved monitoring of air pressure, the PAC50 electronic pressure switch from Sick offers more at a glance – the large bi-color display allows you to identify from a distance if the pressure falls within the target range. Three large function keys and intuitive menu navigation make operating the PAC50 easy.



View detail

Float level switch for liquids NAB - Kobold

The Kobold level switch model NAB is ideally suited for the level monitoring of liquids and for direct pump control by means of a mechanical switch with very high switch capacity 20 (8) A at 250 VAC. The NAB comprises a stable plastic housing made of polypropylene (PP) with neoprene cable of optional 3 or 10 m of length.

View detail

Float level switch for liquids NEC - Kobold

The Kobold level switches of model NEC have been developed for level monitoring of liquids and for direct pump control for all industrial applications. The float is supplied with a mechanical microswitch with very large switching capacity.

The NEC comprises a stable plastic housing made of polypropylene with a total of five cavities sealed back-to-back. The instruments are thus practically unsinkable even when physically damaged.

View detail

Float transducer-reed chain series MM - Kobold

Kobold level sensors/transmitters are used for continuous level indication and monitoring of all types of liquids. It is based on the float principle with magnetic transmission in a 3-wire potentiometer circuit. Its simple design with only one moving part, the float, makes the transmitter particularly reliable. A range of sensors in different materials and designs, and with different connections, are available for measured-value acquisition.

View detail

Hydrostatic level sensor - LFH – Sick

The level probe LFH, from Sick, is a robust pressure transmitter for continuous level measurement.

The liquid column above the probe creates a hydrostatic pressure which is a direct indicator for the liquid level. Through its permanently connected
cable the LFH is submerged into the liquid to be monitored. Thus, the container wall does not need to be disturbed to fit a level sensor.
View detail

Level sensor LFP cubic TDR– Sick

LFP Cubic – Flexible up to the probe tip!

The LFP Cubic from Sick is a level sensor that uses TDR technology (time domain reflectometry) and thus can be used in oil- and water-based liquids without calibration.

The LFP’s guided radar uses time-offlight technology to measure electromagnetic pulses. The time difference between the sent pulse and the reflected pulse is used to calculate the level, both as a continuous value (analog output) and a freely position able switching point (switching output). Due to its flexible probe that can be changed or cut, it is possible to integrate the sensor quickly into any application. The LFP Cubic can work in deposit-forming and foaming liquids. The sensor’s intuitive setup uses four buttons and a display to ensure quick and easy adaptation to the application.
In addition to the discrete and analog output signals, an IO-Link interface is available to transmit additional valuable process data to the control unit.
View detail

Level sensor TDR for food & beverage industry - LFP Inox – Sick

The LFP from Sick is a hygienic level sensor for liquids using TDR technology – a process for determining the time of flight of electromagnetic waves.

The time difference between the sent pulse and the reflected pulse is used to generate a level signal, both as a continuous value (analog output) and a freely positionable switching point (switching output). The use of robust FDA-compliant materials like stainless steel in an EHEDG-certified design means that the LFP guarantees optimal, unrestricted cleaning, even for the highest hygiene requirements. Its modular connection system allows simple and flexible installation in any application. Thanks to high temperature and pressure resistance, unrestricted use is possible under CIP and SIP conditions. The communication capability via IO-Link to the superordinate control units rounds off the profile.
View detail

Level sensors - Vibration LFV / LBV - Sick

Liquid and bulk solid measurement - continuous and up-to-date just like liquid levels.

For stocking, tank content, storage capacities or automated disposal, we offer modern technology for small and large measuring tasks. Laser, guided microwave (TDR), ultrasound, hydrostatic measurement up to the electromechanical option: measure liquid levels reliably with our measuring devices.
View detail

PAD Differential pressure sensor - Kobold

Differences in control.
High flexibility and reliability are the important characteristics of the PAD differential pressure sensor from Kobold. This reliable measuring instrument is just as suited to recording absolute and differential pressure as it is to measuring filling levels and flow rates.
A multitude of measuring ranges from -1 to over 400 bar and the overpressure models up to 750 bar provide solutions for a wide range of applications.

View detail

PAS Pressure sensors - Kobold

Where pressure prevails.
The Kobold pressure sensor model PAS is a microprocessor-based high performance transmitter which has a flexible pressure calibration and a flexible output signal. It has an automatic compensation of ambient temperature and process variables. A communication with the instrument and a configuration of various parameters is possible via the HART® protocol. All data of sensor is to be input, modified and stored in an EEPROM.

The PAS pressure transmitters enable a precise monitoring of absolute and gauge pressures. The devices available with different measuring ranges between –1...1,5 bar and 0...600 bar, can be used for a multitude of applications.
View detail

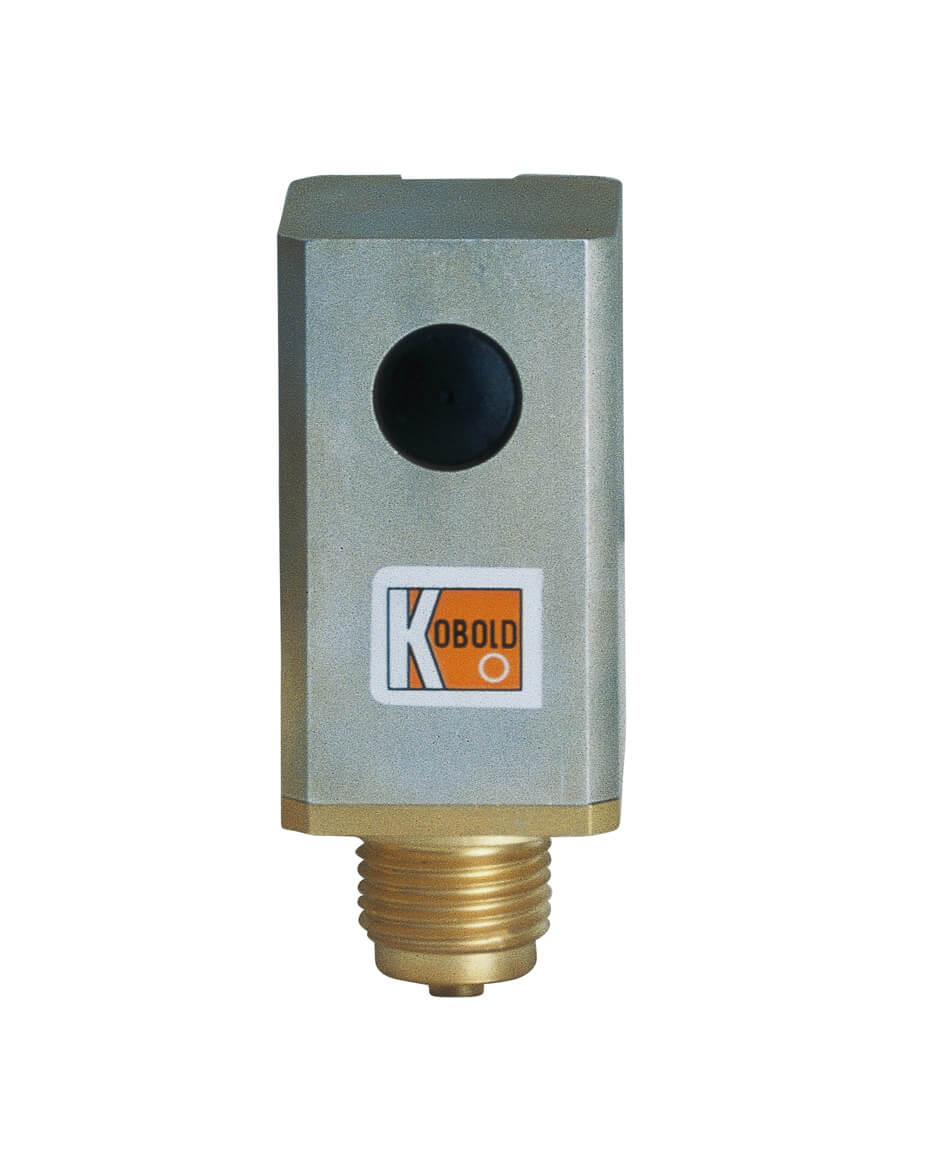

PDL Adjustable pressure sensors - Kobold

Kobold pressure sensors of model PDL are economical electronic pressure switches. The switch output can be adjusted on-site with an adjusting screw.

With help of an elastic spring measuring element and by usage of Hall effect, up to 2 switching outputs can be generated for a given pressure.

The switching outputs can be delivered optionally with N/O or N/C function. The small robust construction and different pressure connections make it an ideal unit for serial usage.
View detail

Pressure sensor PBT – Sick

A genuinely talented all-rounder!
The PBT is a universal electronic pressure transmitter used in general industrial applications for pressure measurement of liquid and gaseous fluids.

Suitable for standard measuring applications in machine and plant engineering, pressure control systems, hydraulics, pneumatics, etc., it supports a wide variety of configurations, and can thus provide the perfect match for individual customer requirements. Its precise and rugged measurement technology, compact dimensions, and quick and simple installation set the pressure sensor PBT, from Sick, apart as a genuinely talented all-rounder.
View detail

Pressure sensor PFT – Sick

The flexible solution.
The PFT electronic pressure transmitter is used for the precision measurement of pressures in liquids and gases. Distinguished by its high-quality measurement technology, the device is well suited to solve demanding measurement tasks in industrial applications.

Designs with extended temperature range, enhanced measurement accuracy, or flush-mounted membrane open up a wide range of applications. Its vast configurability ensures the pressure sensor PFT from Sick can perfectly suit the most diverse customer requirements.
View detail

Pressure switch - PBS Hygienic – Sick

The electronic pressure switch PBS Hygienic has been designed for use in the food and beverage industry.
The wetted parts are gap-free and have no dead spaces. Their high-quality stainless steel surfaces are smooth and easy to clean. The highly resistant stainless steel membrane is welded to the hygienic process connection without gaps or edges. The device is designed for CIP and SIP processes. This enables safe hygienic operation in conjunction with optimized system availability.
View detail

Sensores de nível MHF15 - Deteção de nível ótica – Sick

Simple, compact and rugged.
Whether for continuous level measurement, spot metering or both, Sick offers a broad set of solutions for process, storage and protection engineering.

The MHF15 is a compact optical level limit switch which is incredibly easy to commission. The sensor is based on Sick's energetic photoelectric proximity sensor technology, which has been tested and optimized over several decades. Thanks to this, the sensor design is simple, rugged, and reliable.
View detail

Temperature sensor TBS – Sick

The TBS temperature switch is easy to use and has a rugged design. It is designed for temperature measurement and monitoring of operating liquids, such as hydraulic oils, coolant lubricants and cleaning liquids in machine building and manufacturing.

With up to two binary outputs and one analog output, it can be used in many applications. A large, well legible display and three pushbuttons facilitate setup. The intuitive menu navigation and display use familiar and standardized features and programming. The switching state of the binary outputs is displayed by highly visible LEDs. During installation, the TBS is uniquely flexible due to its two rotation locations. It is possible to rotate the display and the process connection independently of the sensor body, ensuring both clean cable layout and that the display is facing the user. Temperature measurement is done using a Pt1000 element that is located in the tip of the stainless steel probe.

View detail

Temperature sensor TBT – Sick

The TBT is a universal purpose Pt100 resistance thermometer with a splash-proof die-cast aluminum housing for the temperature measurement in liquids and gases. It can be adapted to specific applications through its various available process connections and insertion lengths.

The TBT is available with various connection threads, with or without compression fittings. Wetted parts are made from high-grade stainless steel 1.4571. Besides its Pt100 output signal, the TBT is available with an integrated transmitter with output signal 4 mA ... 20 mA.


View detail

Temperature sensor TSP - Sick

The TSP is a universal purpose platinum insertion thermometer for the temperature measurement in liquids and gases. It can be adapted to specific applications through its available connection threads and insertion lengths.

Wetted parts are made from stainless steel 1.4305. The platinum resistor (Pt100 or Pt1000, accuracy class B according to IEC 60751) is located inside the tip of the probe. It is electrically connected by an M12 x 1 circular connector. Therefore, the device is compact and well suited for narrow installation spaces.

View detail

Temperature switch-digital TDD - Kobold

Kobold temperature switches of model TDD are used for economical measurement and monitoring of temperature. They are suited for applications where temperature must be monitored with a high degree of switching accuracy.

A semiconductor, which outputs a digital signal to the evaluating electronics in 0.5 °C steps, serves as sensor element. The current measured value is displayed on a 3-digit LED display. Two switch points, on-/off-switching delay and hysteresis are adjustable within the measuring range.


View detail

Ultrasonic flowmeter FFU - Sick

Non-contact flow measurement!
The non-contact FFU ultrasonic flowmeter detects the flow volume of conductive and non-conductive liquids. Swimming against the current requires more strength than with the current – this is the simple fact on which ultrasonic flow measurement according to the phase difference process is based.

View detail

Ultrasonic level sensor UP56 – Sick

Tough, non-contact, pressure-resistant.
The product family UP56 of ultrasonic level sensors is the ideal solution for demanding applications. The teflon-protected transducer handles overpressure up to 6 bar (87 psi) and is resistant against numerous difficult fluids.

Wetted parts can be chosen either as stainless steel or PVDF, thus making the ultrasonic level sensor UP56, da Sick, the perfect solution for measurement in aggressive, viscous, or abrasive liquids, or bulk solids. By combining two output signals in one device, new cost-effective solutions can be created for measurement and integration into the system. With two switching outputs, the level sensor UP56 can measure dry running and overflow in one device.
View detail
Page 1 of 2
